The advantage of EDID emulators

1. Whats EDID?

EDID, Extended Display Identification Data, is a metadata format for display devices to describe their capabilities to a video source. The EDID data structure includes manufacturer name and serial number, product type, phosphor or filter type, timings supported by the display etc.

2. Why to use EDID?

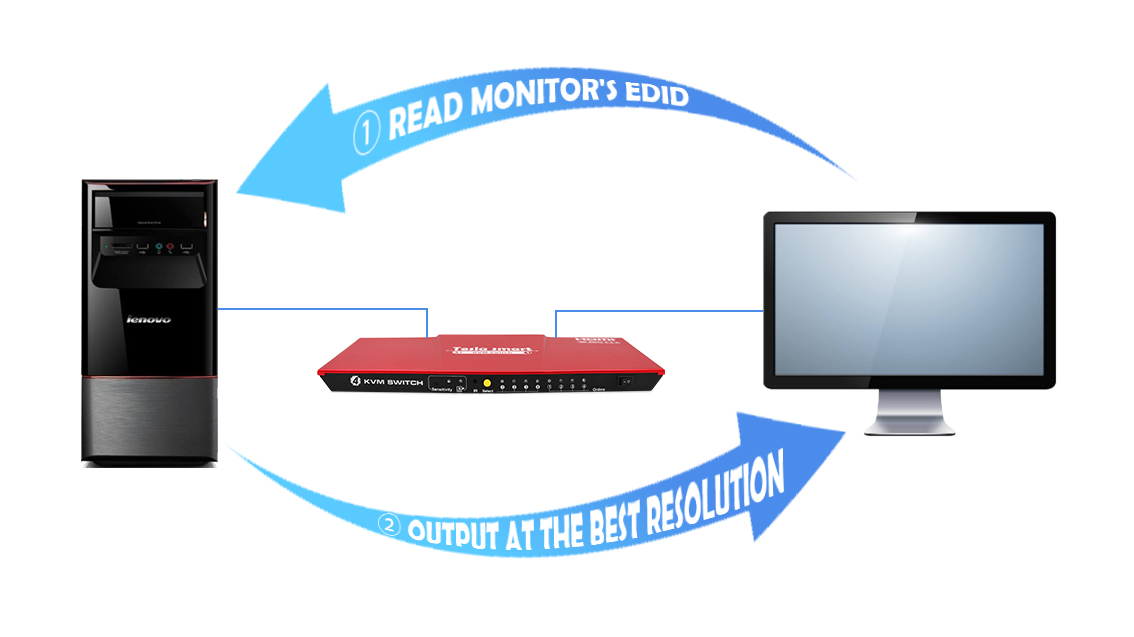

In a word, EDID is the ID card of the monitor. By reading the EDID of the display, the computer can know the properties of the display, then to make PC output a video the most suitable for the display.

When monitor is connected to PC, there will be a conversation between them, Hello, PC! Im monitor A, I can display multiple resolutions. The max resolution I support is XXX Hello, monitor! I have received your information, I will output to you at the best resolution now.”


3. If PC is unable to read EDID, what will happen?

If the computer is unable to get the EDID of the display, the computer cant know which display device it is connected, then PC may output a very low resolution picture or even not output.

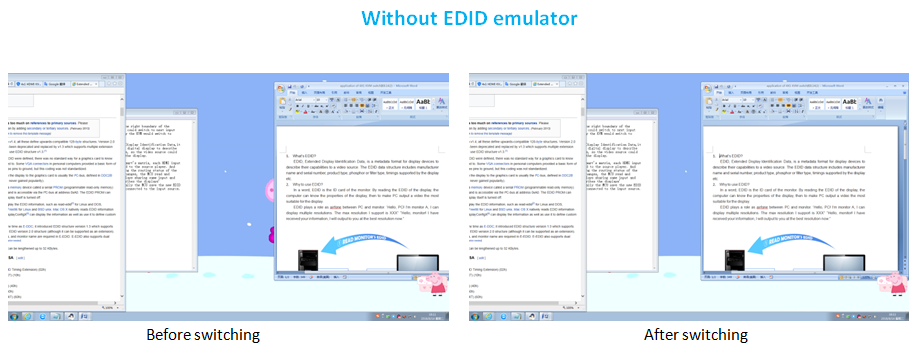

4. Ordinary KVM switch

In terms of ordinary KVM switch, as only one of the computers that connected to KVM can be selected to connect to the display, when switching the ports of the KVM, the other computers are unable to access the displays EDID, then the computers change the display settings accordingly, which will cause a problem that after users set the window position, it will return to original position the next time it switches to current channel.

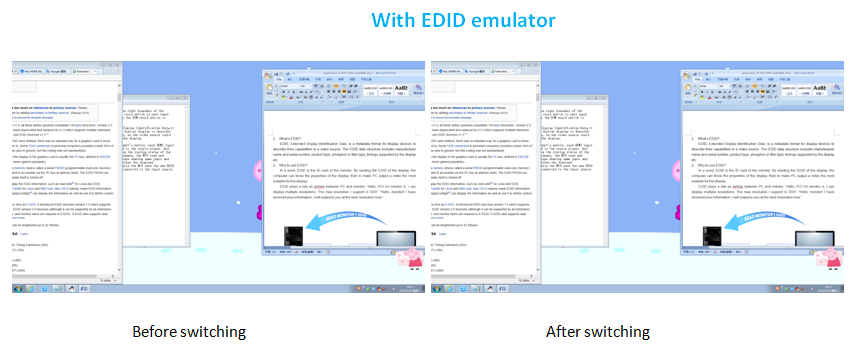

5. Our KVM switch

In Tesla smart's KVM switch, we add EDID emulators in each input port, so while switching the input ports,  no matter the computer is current active selected or not, the computer still can always get correct EDID. This keeps the display settings of the computer would not be changed while switching.
