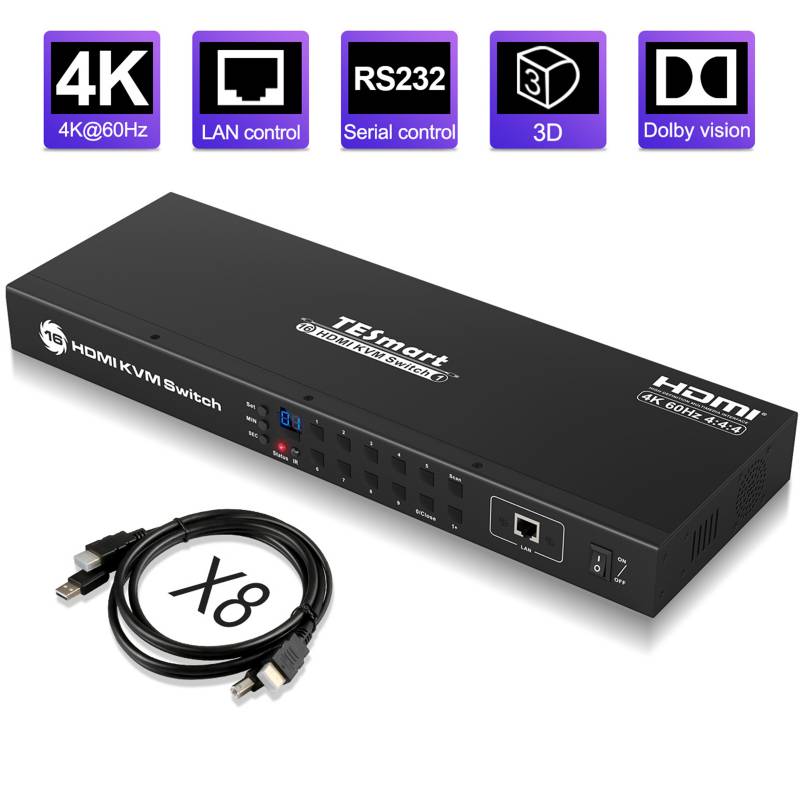

16x1 HDMI KVM Switch

16x1 HDMI KVM Switch

#HKS1601A1U

This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 16x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard.

With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.

0.00
0.00


#HKS1601A1U

This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 16x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard.

With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.

Download the specification


Features


l  Using only 1 set of keyboard and mouse to control 16 PCs

l  Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

l  With EDID emulators in each input port, keep PCs always having correct display information

l  Support hot plug, connect or disconnect devices to the KVM switch in any time without turning off devices

l  Support auto switching to monitor computers in a specified time interval

l  Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch

l  Available to use keyboard without any delay after switch input sources

l  Support resolution up to 3840*2160@60Hz

l  With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer

l  Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

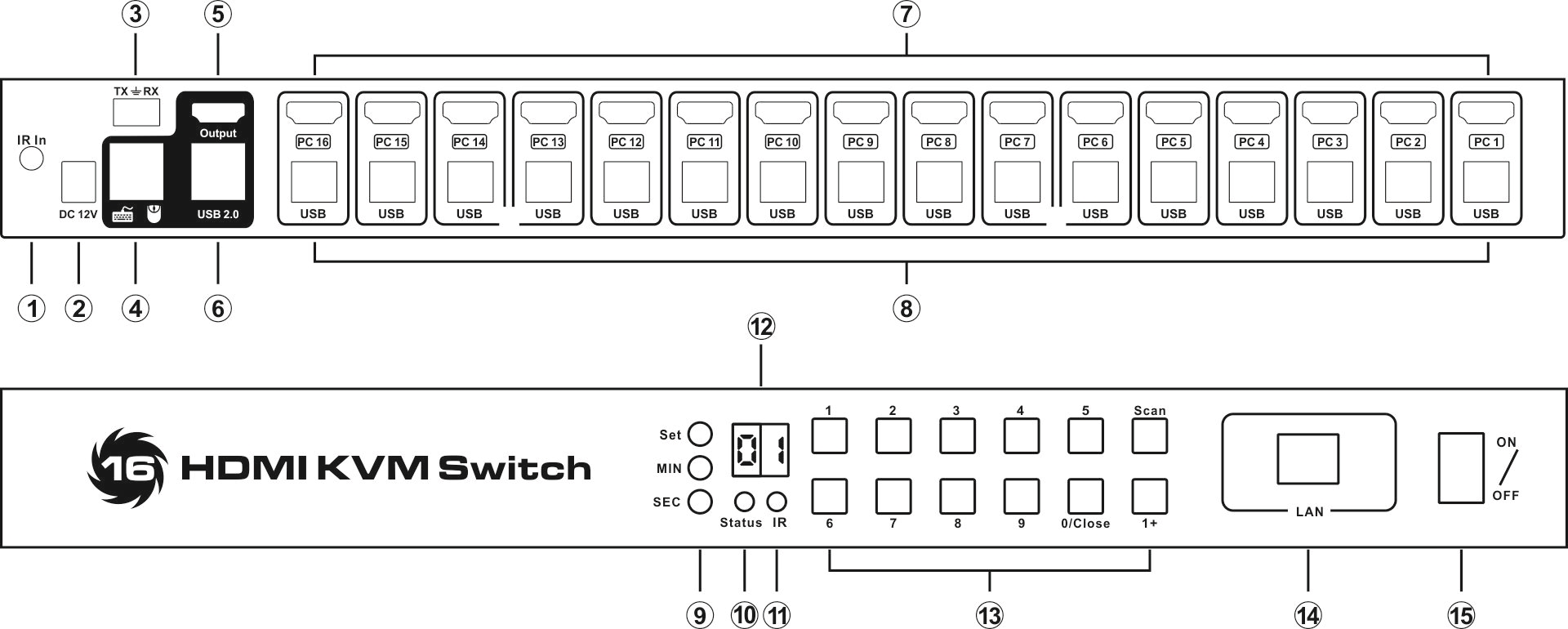

Panel Descriptions




ID

Name

Description

1

IR in

Connect IR receiver extension cable to this port, then it is able to use IR control even if the KV switch is installed in a rack

2

DC 12V

12V DC power supply

3

RS 232

Connect this port to any control termination, then it is able to select the input sources by sending RS232 commands

4

USB2.0 port

For USB2.0 devices, for example printers, USB hard disk, barcode scanner, touch pad,etc

5

HDMI output

Connect to HDMI display

6

Keyboard and mouse input

For USB keyboard and mouse input, including wireless keyboard and mouse

7

HDMI input

Connect to HDMI sources

8

USB data

Connect to computer by USB Type A to Type B cable

9

Auto scan time interval settings

[MIN]: Press [MIN] to loop between 0~59 minutes

[SEC]: Press [SEC] to loop between 0~59 seconds

[Set]: After setting minutes and seconds, press button [Set] to enter final scan time interval setting

10

Status LED

Red: Turn off auto scanning mode

Green: Turn on auto scanning mode

11

IR receiver

Receive IR signal

12

LED display

Display current selected input port

13

Keypad

[1~9]: Press these buttons to directly select input 1~9 sources

[0/Close]: Press this button directly will turn on or turn off the display out; Press [1+]  then [0/Close] to select input 10

[Scan]: Press this button to start or stop automatically scan between input 1 to input 16. The interval time can be set by buttons [Set], [MIN], [SEC] as described above

14

LAN port

By connecting to the LAN through this port, you can use the terminal device in the same LAN to send TCP/IP commands to control the switching of input port

15

Power switch

Turn on or off power supply

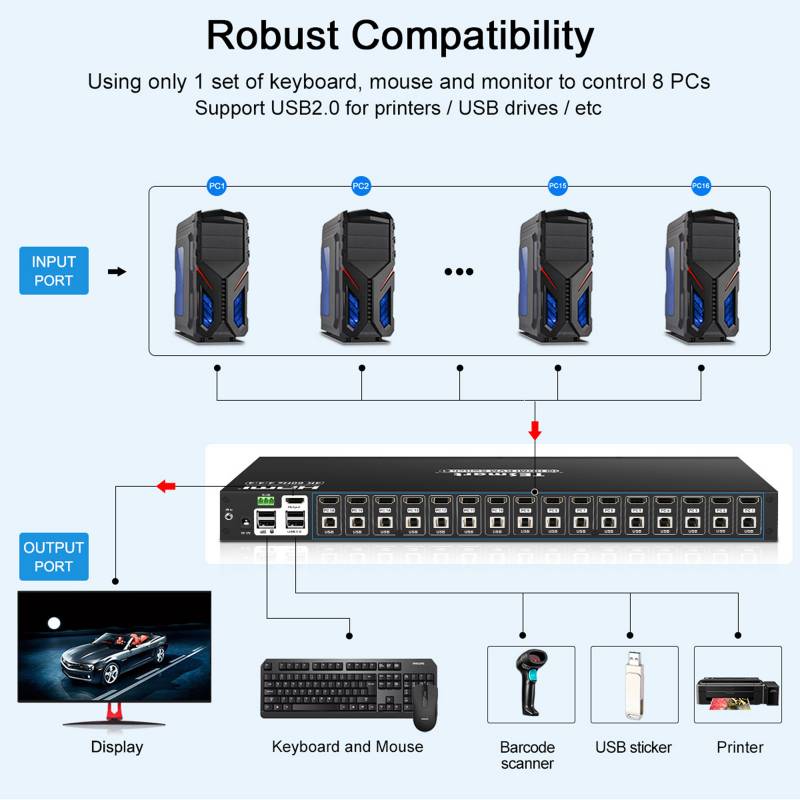

Connection Diagram




Specification



HKS1601A1U

16x1 HDMI KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Console commands

RS232 / IP

Technical:

Max. Resolution

3840x2160@60Hz

Auto to get EDID

Yes

Data rate

18 Gbps

Auto scan interval

5~3600 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

2 * USB Type A

Video /Audio

1 * HDMI Type A

RS232

3 Pins jack

LAN (TCP/IP)

1 * RJ45

IR extension input

1 * AUX

System ports

USB Data

16 * USB Type B

Video / Audio

16 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Metal

Product

Dimension

440 (L) x 150 (W) x 44.5 (H) mm

Weight

1905g

Item

Dimension

488 (L) x 123 (W) x 186 (H) mm

Weight

3461g

Carton

Dimension

505 (L) x 280 (W) x 395 (H) mm

Quantity

4pcs

Total Weight

14.594kg

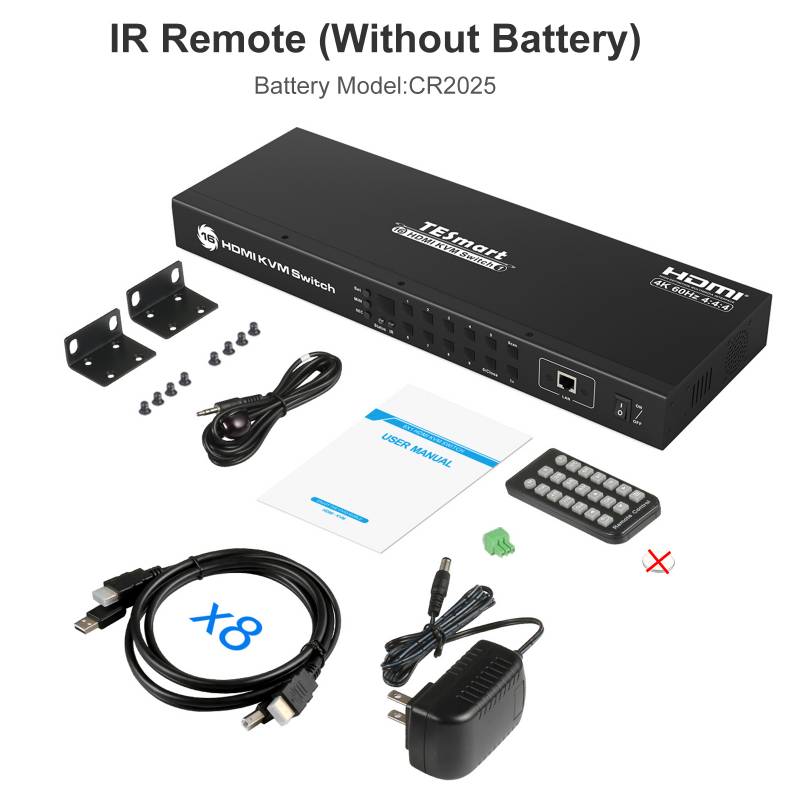

Packing list


1 * 16x1 HDMI KVM Switch

1 * DC 12V Power Adapter

1 * IR Remote Control

1 * Quick-Start Guide
