4x1 Seamless Multi-view KVM Switch

4x1 Seamless Multi-view KVM Switch

#HKS0401B40

This 4x1 Seamless Multi-view KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily.

The KVM supports two output mode: KVM mode and synchronizer mode. In synchronizer mode, a set of keyboard and mouse can control four PCs simultaneously;  In synchronizer mode, a set of keyboard and mouse can only control one PC at a time. It supports four HDMI input sources which can be displayed on one screen with multiple multi-view modes. It integrates HDMI signals from 4 different HDMI sources for viewing on a single monitor. For the four connected inputs, it also functions as a switch with fast switching between seamless sources. It can be controlled by various ways, through the front panel button, IR, etc. Support USB 2.0 hub and USB 2.0 keyboard & mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM.



0.00
0.00


#HKS0401B40

This 4x1 Seamless Multi-view KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily.

The KVM supports two output mode: KVM mode and synchronizer mode. In synchronizer mode, a set of keyboard and mouse can control four PCs simultaneously;  In synchronizer mode, a set of keyboard and mouse can only control one PC at a time. It supports four HDMI input sources which can be displayed on one screen with multiple multi-view modes. It integrates HDMI signals from 4 different HDMI sources for viewing on a single monitor. For the four connected inputs, it also functions as a switch with fast switching between seamless sources. It can be controlled by various ways, through the front panel button, IR, etc. Support USB 2.0 hub and USB 2.0 keyboard & mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM.




  Features


l  Using only 1 set of keyboard, mouse and monitor to control 4 PCs

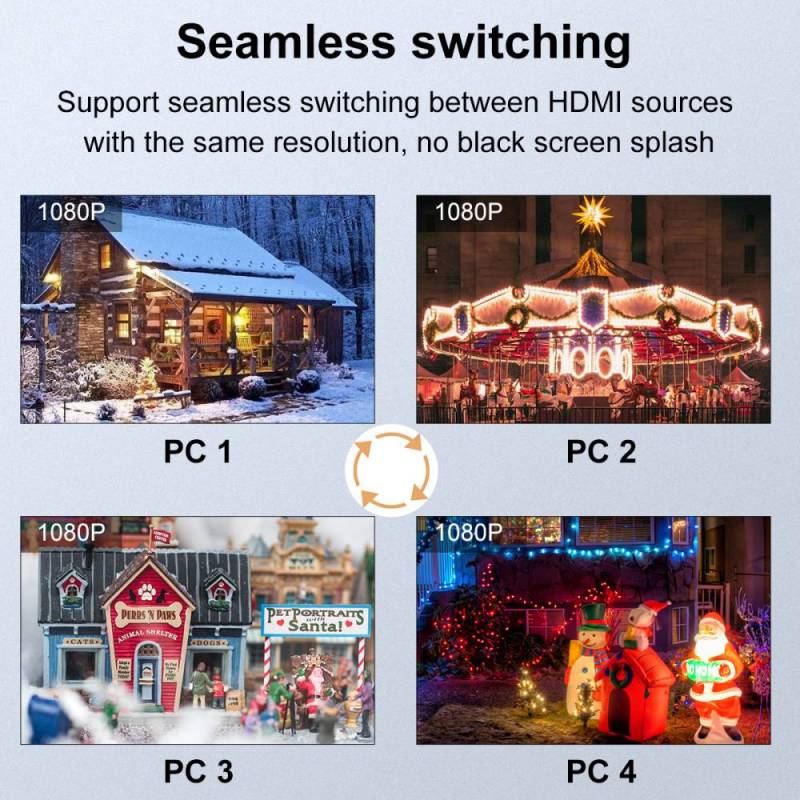

l  No latency, support seamless switching

l  Support resolution up to 1080P

l  Support two working modes: KVM mode and synchronizer mode

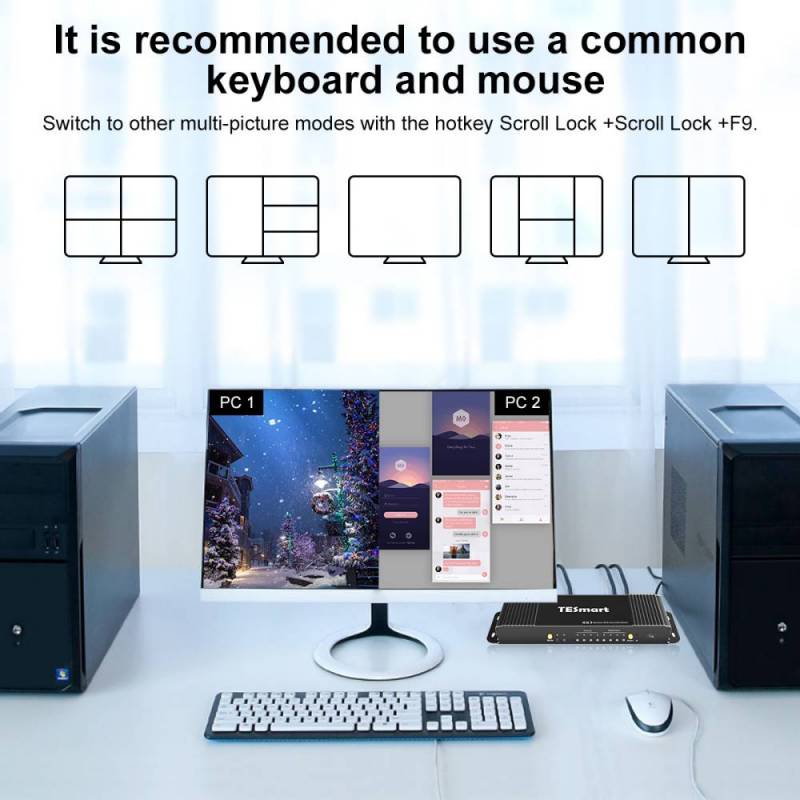

l  Support two display modes: full-screen display mode and multi-view display mode

l  Available to use keyboard and mouse without any delay after switching input sources

l  Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices

l  Support auto switching among all devices so as to monitor the devices in a specified time interval

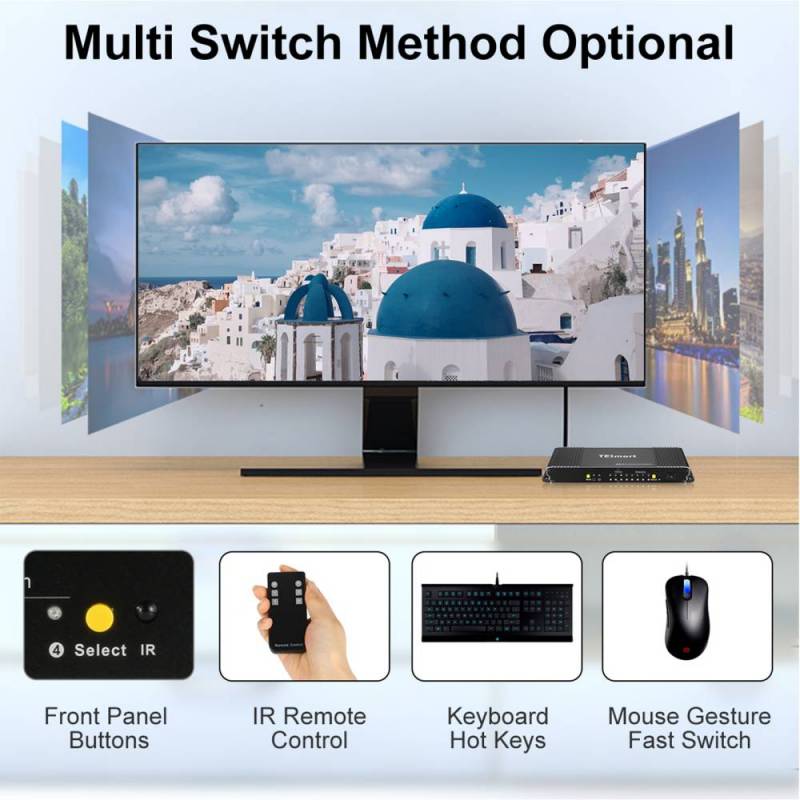

l Support keyboard hotkeys, IR remote control, front panel buttons and mouse gesture to control the KVM to switch inputs

l With extra standard USB port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM

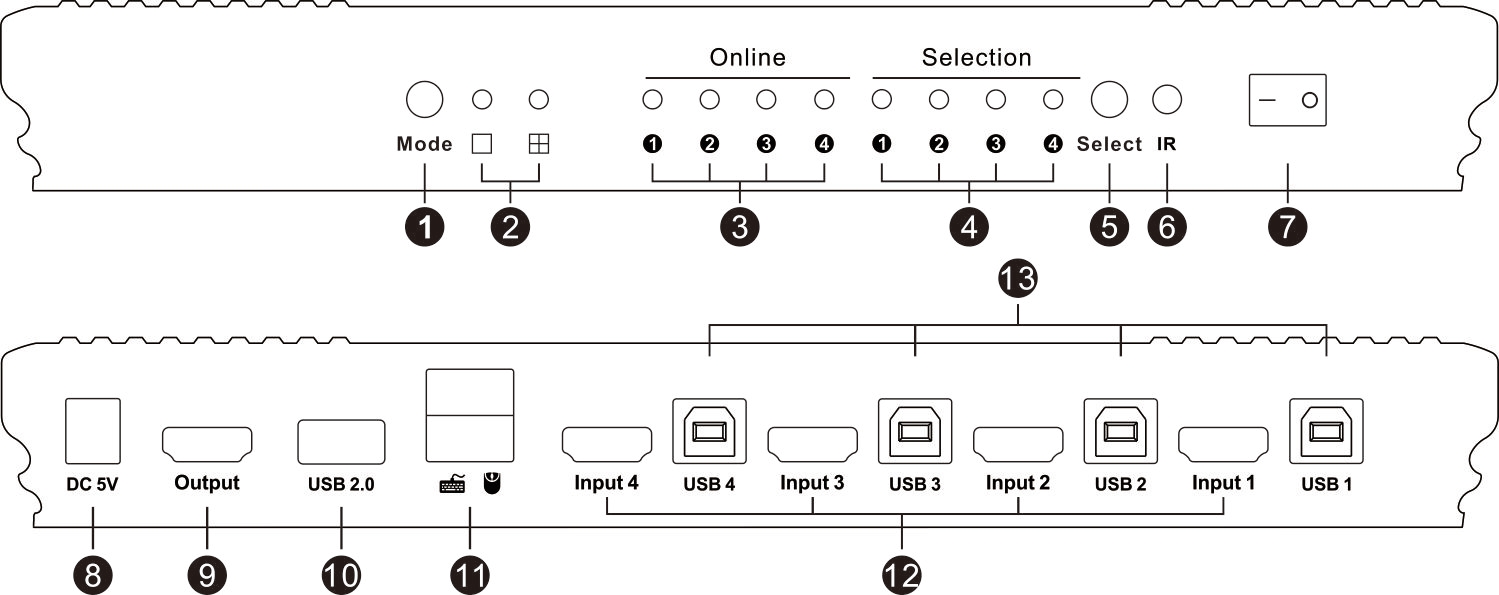

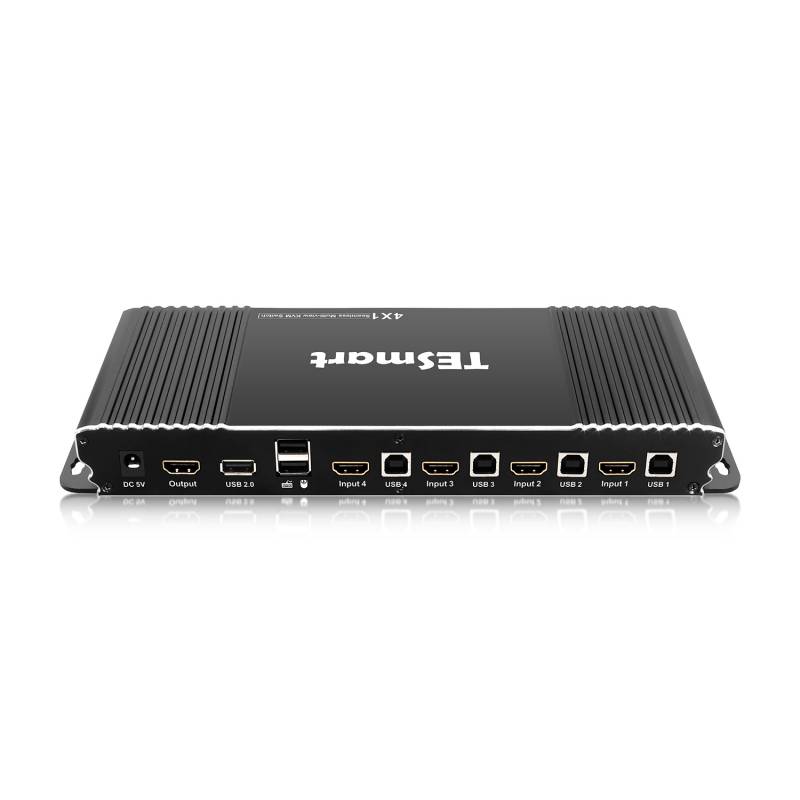

  Panel Description






ID

Name

Description

1

Screen display mode and working mode selection button

(1)Press once, cyclically switch between full-screen mode and quad-view mode

(2)Keep pressing for 3~5 seconds, cyclically switch between KVM mode and synchronizer mode

2

Screen display mode status

Left-LED on: Full-screen mode

Right-LED on: Quad-view mode

3

USB connection status

The corresponding LED will be lit if the USB data port is well connected to the computer and the computer is on

4

Input selection status

Indicate current active selected input source

5

Multi-function switching button

In full-screen mode, switch audio, video, mouse and keyboard channels simultaneously

In multi-screen mode, only switch audio, mouse and keyboard channels

6

IR receiver

Receive IR remote signal

7

Power switch

Turn on or off power supply

8

DC 5V input

DC 5V power supply

9

HDMI output

Connect to HDMI display

10

Standard USB2.0 port

Connect to USB 2.0 devices, printers, USB drives

11

Keyboard and mouse input

Connect to keyboard and mouse

12

HDMI input

Connect to HDMI source devices

13

USB data ports

Connect to USB ports of computers



   Connection Diagram





  Specification



HKS0401B40

4x1 Seamless Multi-view KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Console commands

No

Technical:

Resolution

1080P

Auto to get EDID

Yes

Data rate

10.2 Gbps

Auto scan interval

5~254 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

1 * HDMI Type A

RS232

NA

LAN

NA

System ports

USB Data

4 * USB Type B

Video / Audio

4 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product

Dimension

262.5 (L) x 108 (W) x 33.3 (H) mm

Weight

756g

Item

Dimension

321 (L) x 175 (W) x 81 (H) mm

Weight

1331g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

14.16kg

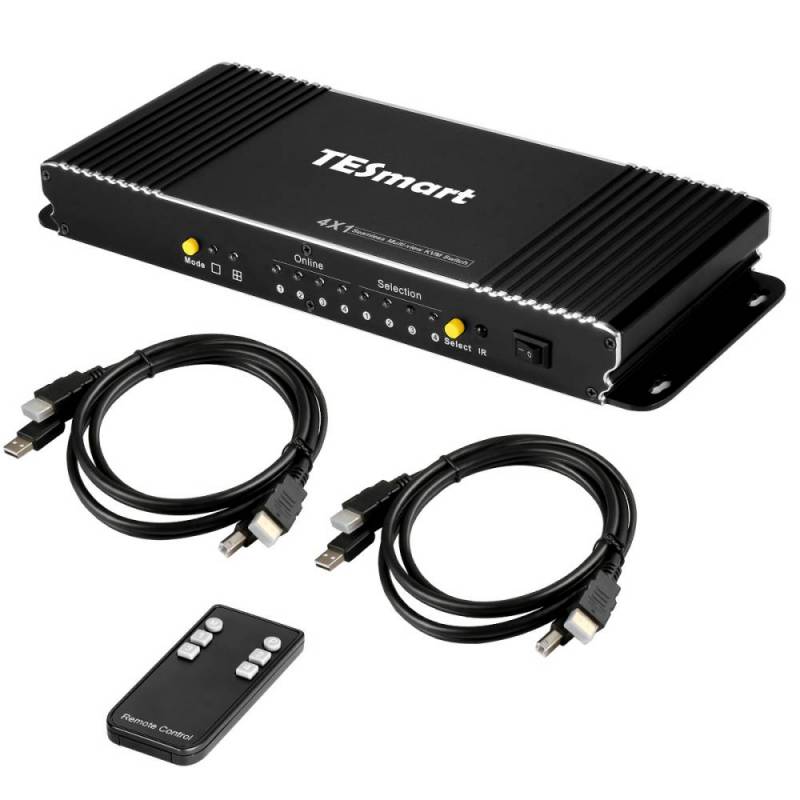

  Packing List


1 * 4x1 HDMI KVM Switch

1 * DC 5V Power Adapter

1 * IR Remote Control

1 * Quick-Start Guide
