1x8 HDMI Splitter

1x8 HDMI Splitter

#HSP0108A1U

This 1x8 HDMI splitter routes can distributes one Ultra HD HDMI source to eight Ultra HD displays simultaneously. Support resolution up to 4K@60Hz. Compliant with HDCP 2.2.Support up to 36 bit/pixel deep color. Support manual switching mode and auto switching mode.With smart EDID management, make it compatible with most of the HDMI displays and sources. Support pass through LPCM 7.1, Dolby®TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™.


0.00
0.00


#HSP0108A1U

This 1x8 HDMI splitter routes can distributes one Ultra HD HDMI source to eight Ultra HD displays simultaneously. Support resolution up to 4K@60Hz. Compliant with HDCP 2.2.Support up to 36 bit/pixel deep color. Support manual switching mode and auto switching mode.With smart EDID management, make it compatible with most of the HDMI displays and sources. Support pass through LPCM 7.1, Dolby®TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™.


Download the specification
   Application


The HDMI splitter(HSP0108A1U) is apply to TV stores, exhibition hall, bars, KTV clubs, schools, hospitals, hotel lobbies, retail establishments and any other installations where Ultra HD AV content from an HDMI source needs to be displayed simultaneously on up to eight Ultra HD displays.


Features


l  Support the resolution up to Ultra HD 4K 60Hz 4:4:4

l  Support up to 36 bit/pixel Deep Color

l  Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™

l  Support HDR10 and Dolby Vision

l  HDCP2.2 compliant

l  Adjust the resolution of the input source according to the resolution of the display

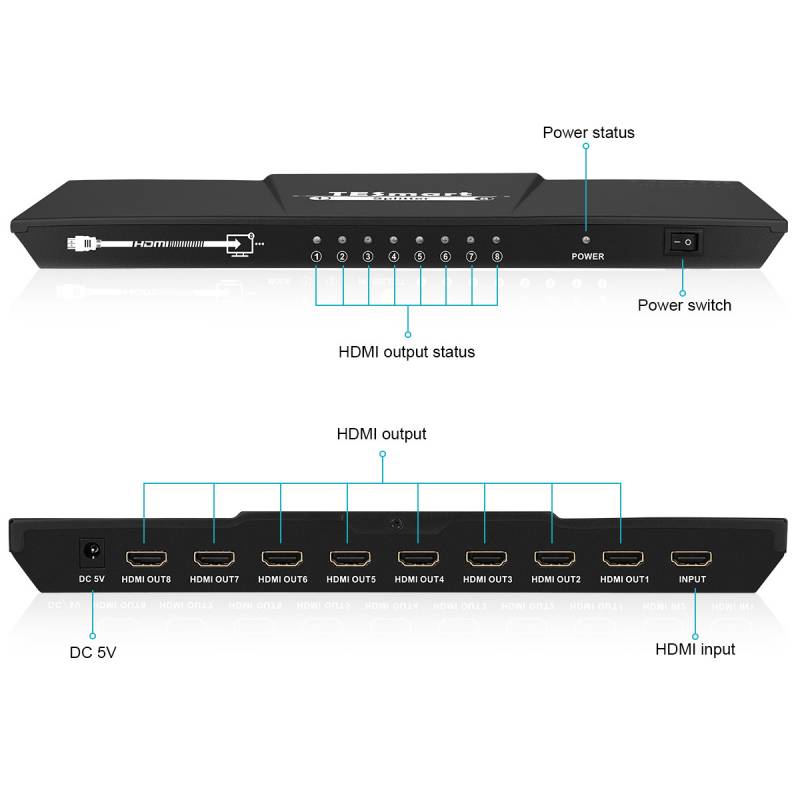

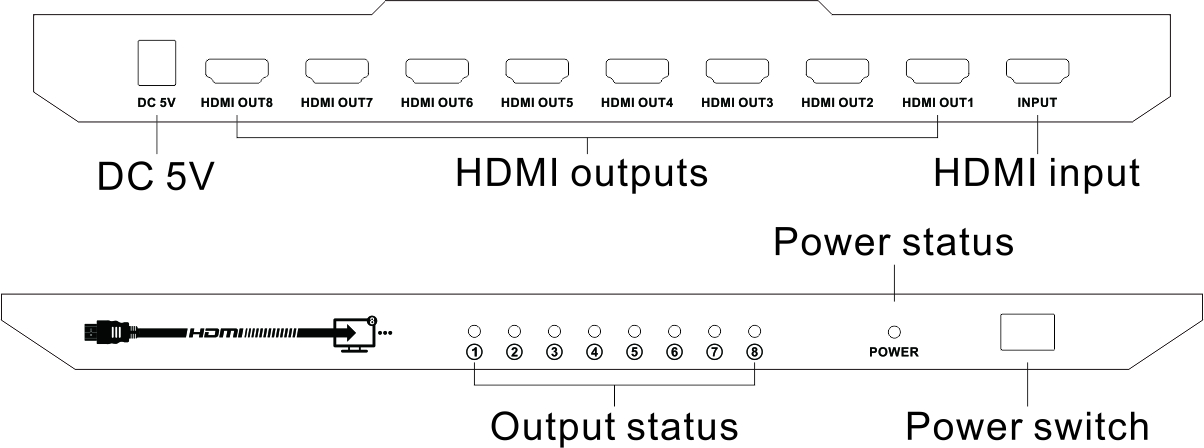

  Panel Description

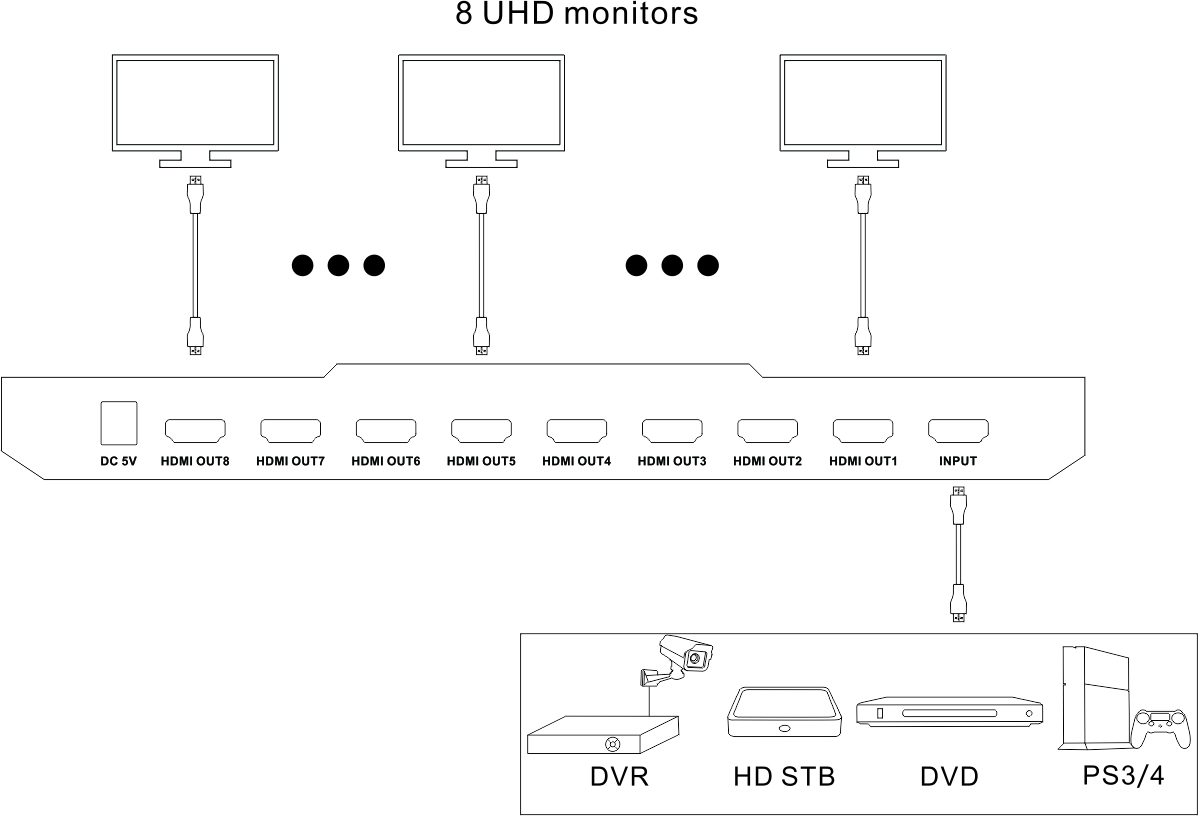

  Connection Diagram






 Specification



HSP0108A1U

1x8 HDMI Splitter

Functionality:

Smart EDID

Yes

Technical:

Max.Resolution

3840*2160@60Hz

HDCP version

2.2

Data rate

18 Gbps

Input

1* HDMI Type A

Output

8* HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical

Chasing material

Aluminum Alloy

Power supply

DC 5V 1A

Operating/storage temperature

0 to 70 degree/-40 to 85 degree

Operating humidity

10 to 90% RH

Product

Dimension

300 (L) x 117 (W) x 28 (H) mm

Weight

497g

Item

Dimension

338 (L) x 166 (W) x 90 (H) mm

Weight

908g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

9.93kg

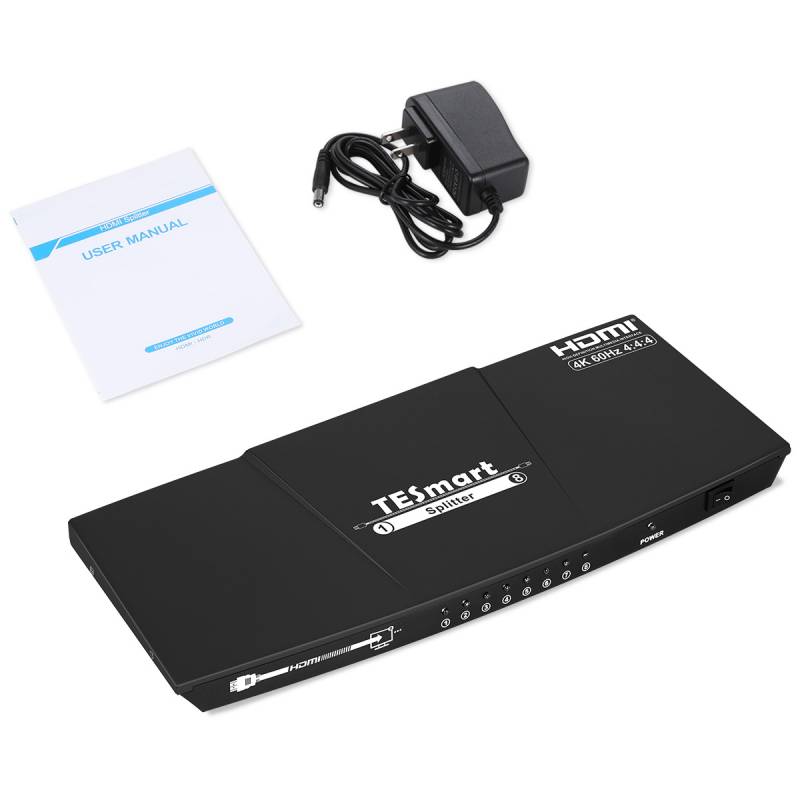

  Packing List


1 * HDMI Splitter 1x8

1 * DC 5V 2A Power Adapter

1 * Quick-Start Guide
