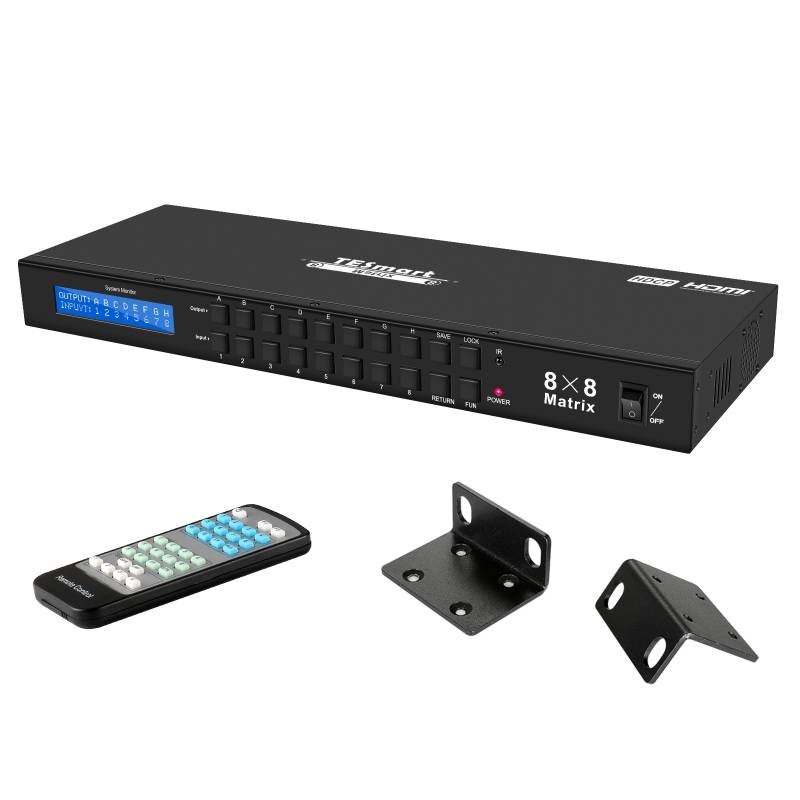

8x8 HDMI Matrix

8x8 HDMI Matrix

#HMA0808A30

This 8x8 HDMI matrix routes 8 Ultra HD sources to eight 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS232, IP interface. With smart EDID management, make it compatible with most of the HDMI source and sink devices.


0.00
0.00


#HMA0808A30

This 8x8 HDMI matrix routes 8 Ultra HD sources to eight 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS232, IP interface. With smart EDID management, make it compatible with most of the HDMI source and sink devices.


Download the specification

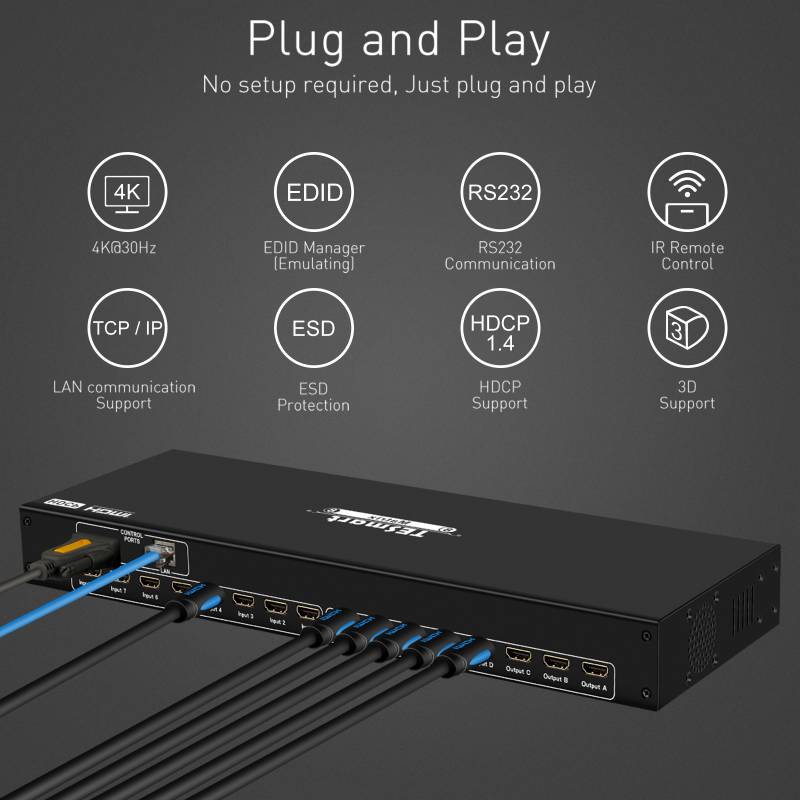

Features


l Resolution up to 3840*2160@30Hz

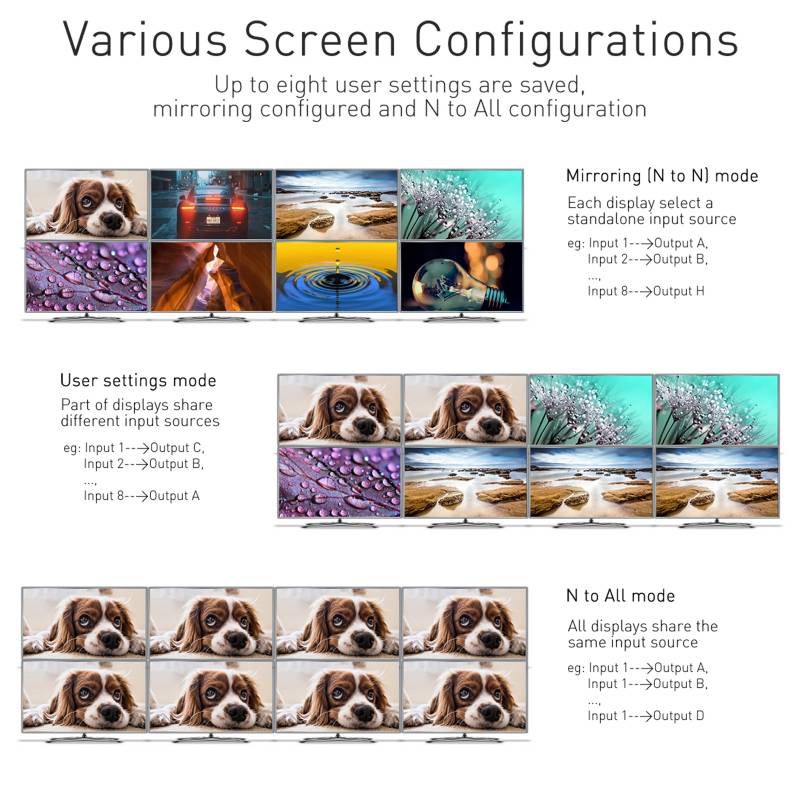

l  Each HDMI output can share same input or select standalone input

l  Support PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format

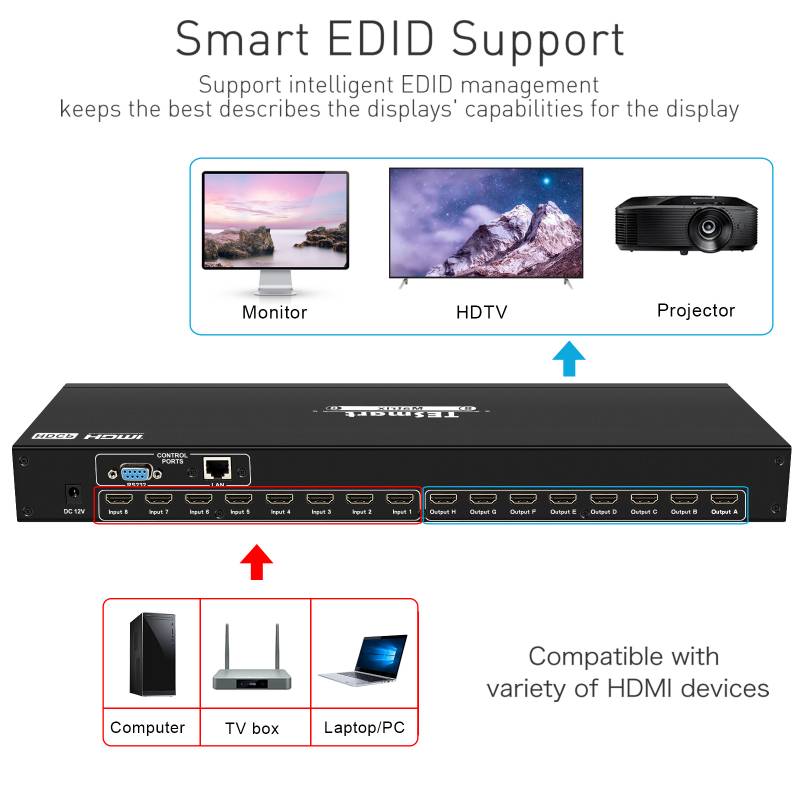

l  Smart EDID management, make it compatible with most display devices

l  Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

l  Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)

l  Easy to view real time inputs and outputs status via LCD display

l  Support 8 configurable user preset connections

l  Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

l  HDCP1.4 compliant

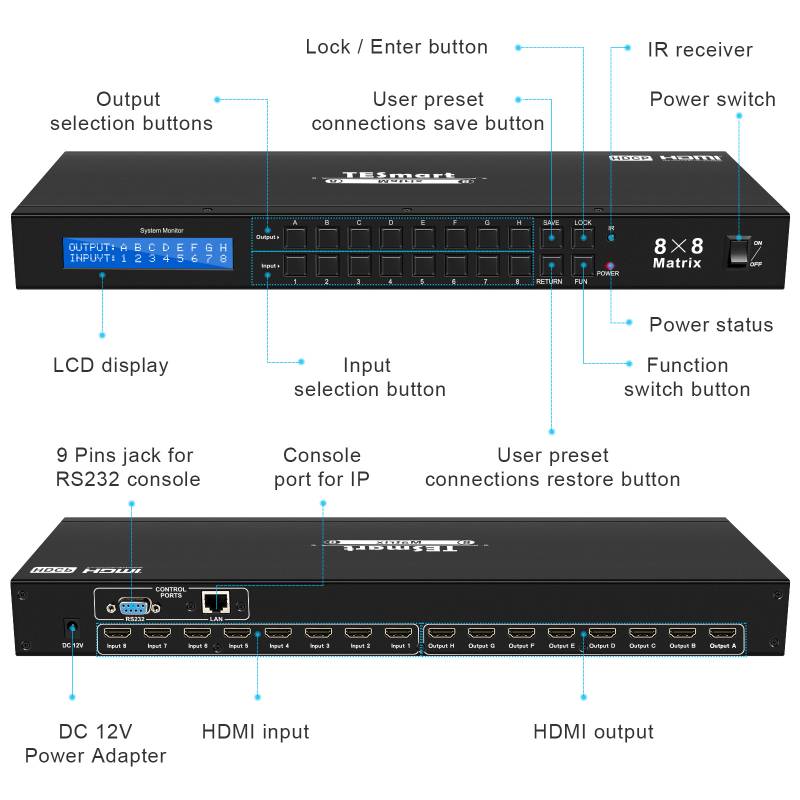

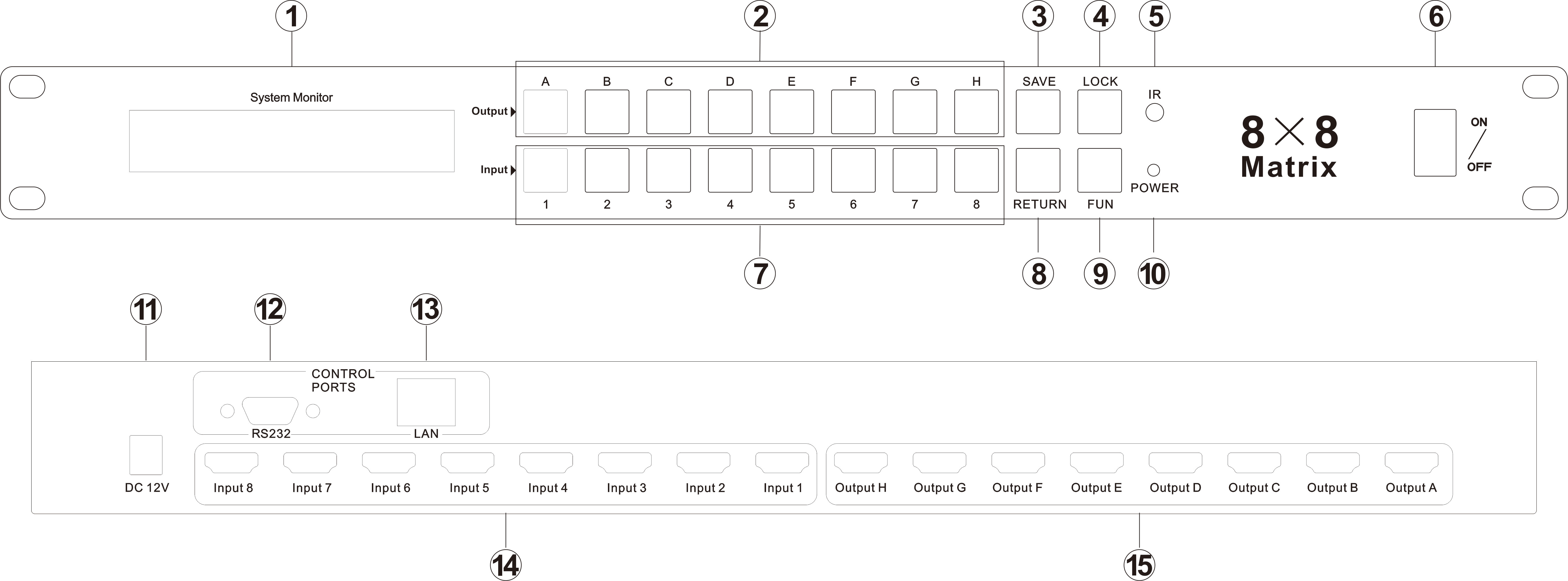

Panel Descriptions







1. 24x2 LCD display, display matrix routing status                 8. Restore user preset connection

2. Output selection buttons                                                     9. Function switch button, output to all or mirrored connection

3. Save user preset connections                                           10. Power status

4. Lock/Enter button                                                              11. DC 12V

5. IR receiver                                                                         12. Console port for RS232

6. Power switch                                                                     13. Console port for IP

7. Input selection button                                                        14. HDMI input

                                                                                              15. HDMI output

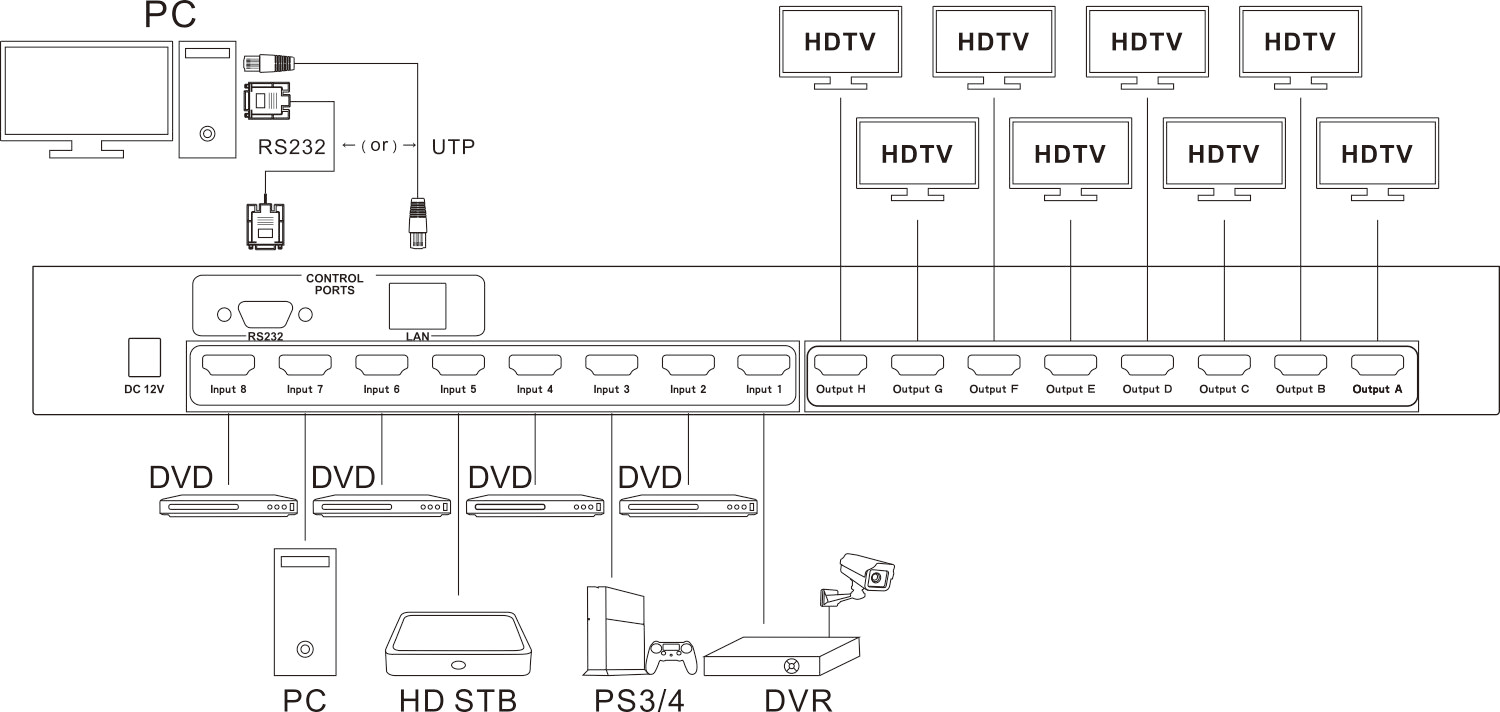

Connection Diagram








Specification


HMA0808A30

8x8 HDMI Matrix

Functionality

Port selection

Front panel buttons

Yes

Console commands

RS232 / IP

IR remote control

Yes

LCD Display

24x2 characters

OSD

No

Smart EDID

Yes

Technical

Resolution

Up to 3840x2160@30Hz/ 1080P@60Hz 3D

HDCP

No

Data rate

10.2 Gbps

Input

8*HDMI Type A, 24/26 AWG HDMI cable up to 10M

Output

8*HDMI Type A, 24/26 AWG HDMI cable up to 20M

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical

Chasing material

Metal

Power supply

DC 12V 2A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

Product

Dimension

440(L) x 150 (W) x 44.5 (H) mm

Weight

1861g

Item

Dimension

488 (L) x 123 (W) x 186 (H) mm

Weight

2321g

Carton

Dimension

505 (L) x 280 (W) x 395 (H) mm

Quantity

4pcs

Total Weight

10.034kg

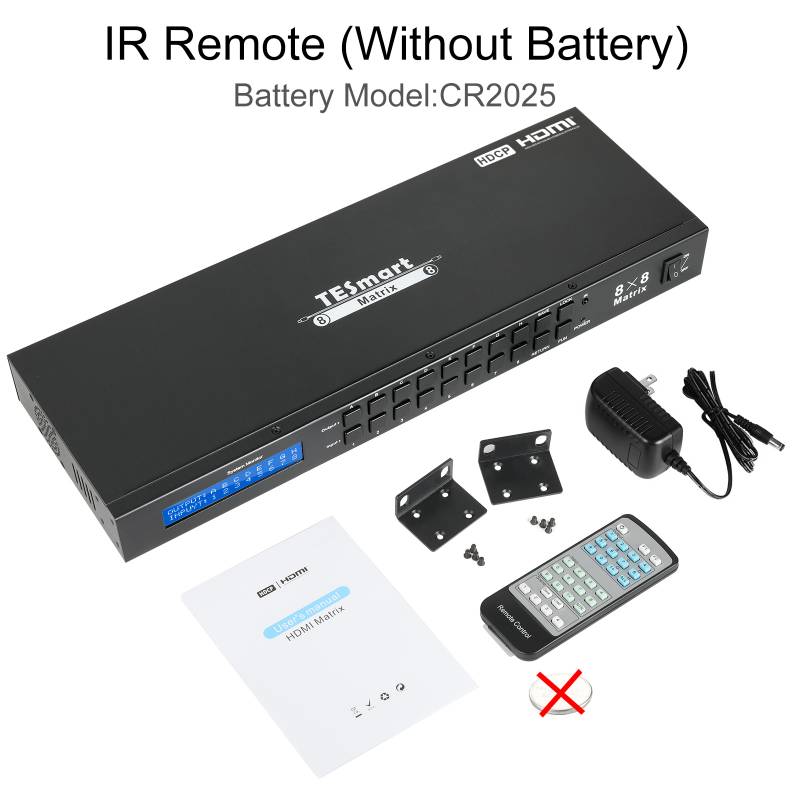

Packing list


1 * 8x8 HDMI Matrix

1 * IR Remote control

2 * Rack-ears

1 * DC 12V 2A Power Adapter

1 * User manual
