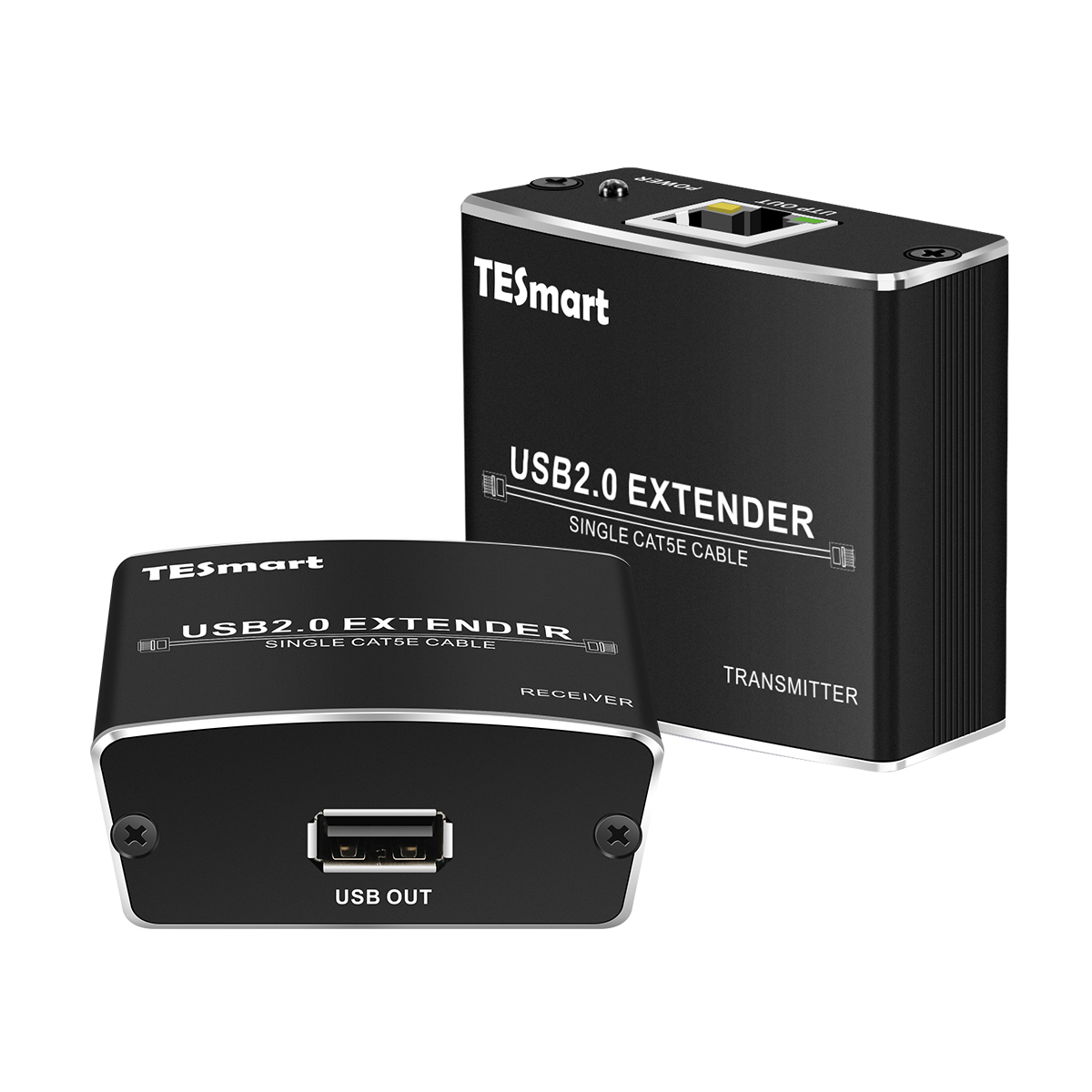

USB2.0 Extender

USB2.0 Extender

#UNE0100A10

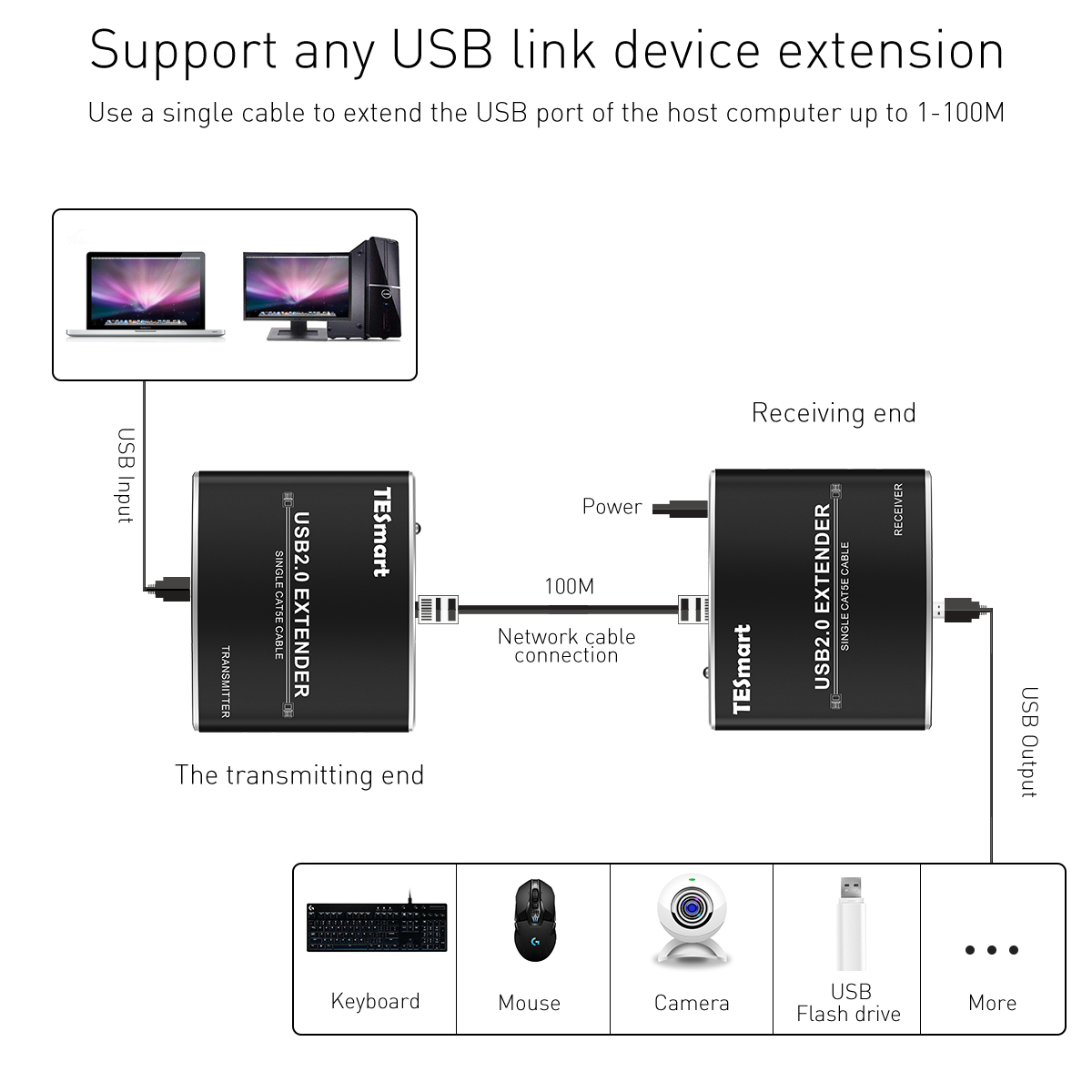

This USB2.0 Extender can easily send the USB signals via Cat-5/5e/6 cable up to 100 meters at data rate of High Speed (480Mb/s) . Without any configuration or software driver, this USB extender allows you to extend your USB device up to 100m from your computer, which overcomes the typical USB cable limitation.




0.00
0.00


#UNE0100A10

This USB2.0 Extender can easily send the USB signals via Cat-5/5e/6 cable up to 100 meters at data rate of High Speed (480Mb/s) . Without any configuration or software driver, this USB extender allows you to extend your USB device up to 100m from your computer, which overcomes the typical USB cable limitation.





  Features


●  Extends signal transmission distance of a USB devices up to 100m via a Cat 5/5e/6 cable

●  Support all major operating systems, such as Windows, Mac OS and Linux

●  Plug and play, no additional drivers required

●  High speed up to 480Mbps

●  Support low speed USB, compatible with USB1.1

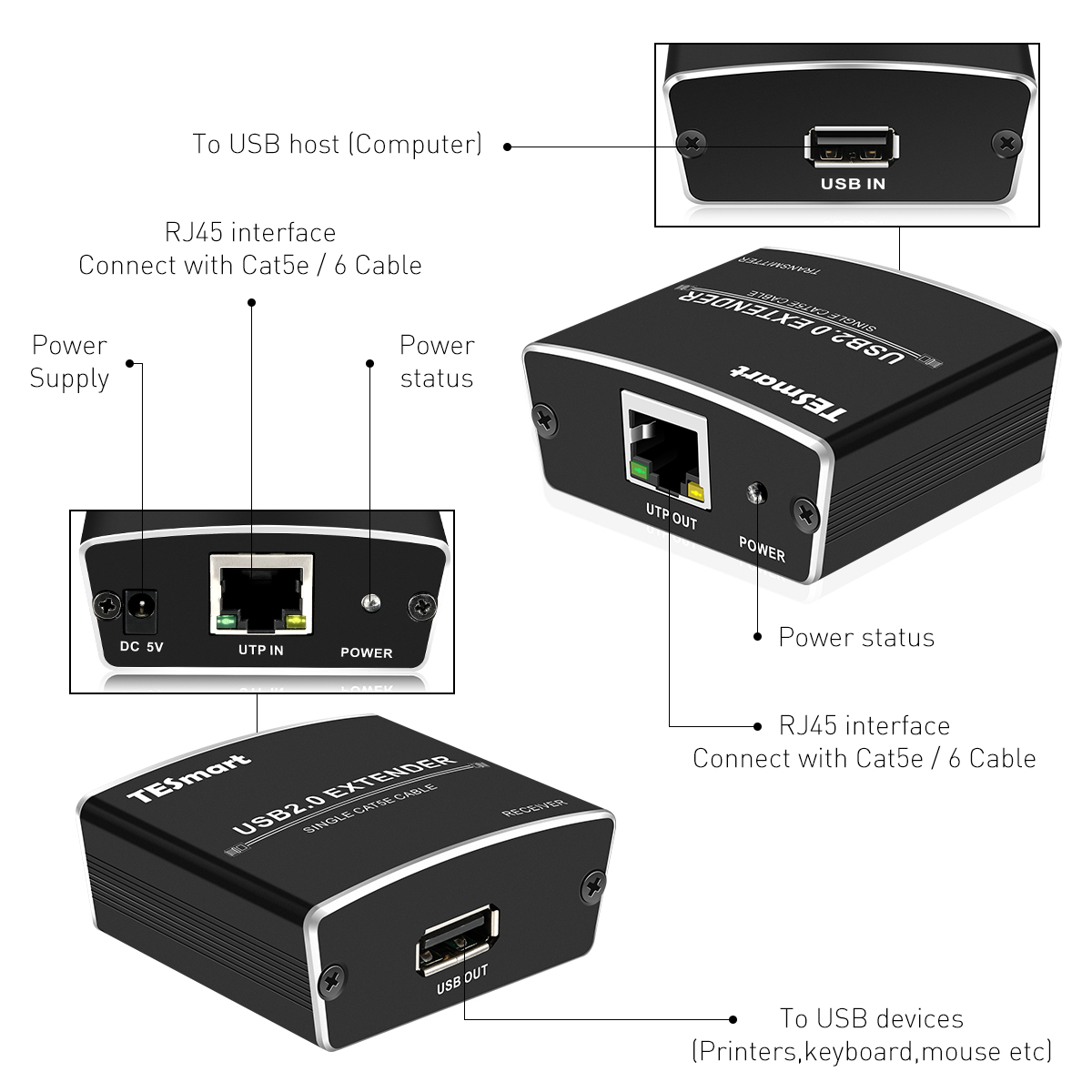

  Panel Description

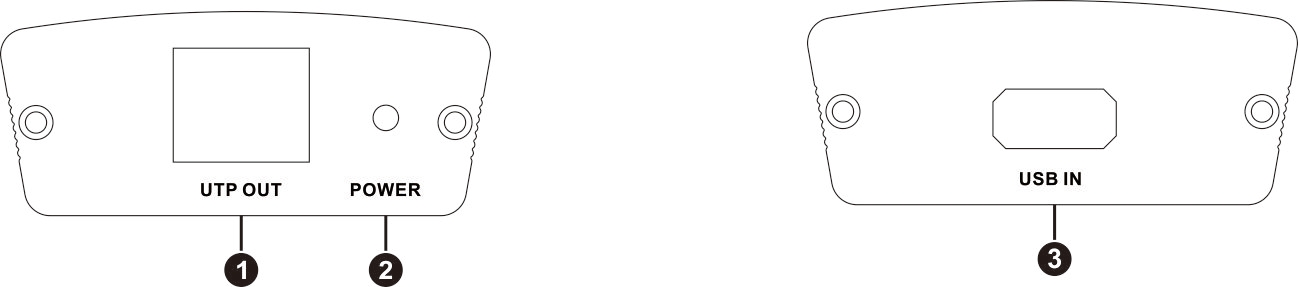

       Transmitter:



ID

Name

Description

1

UTP output

Connect a Cat 5/5e/6 cable between this port and the RJ45 connector port on the receiving unit

2

Power status

The LED will be active once transmitter is powered up

3

USB input

Connect the USB source to this input

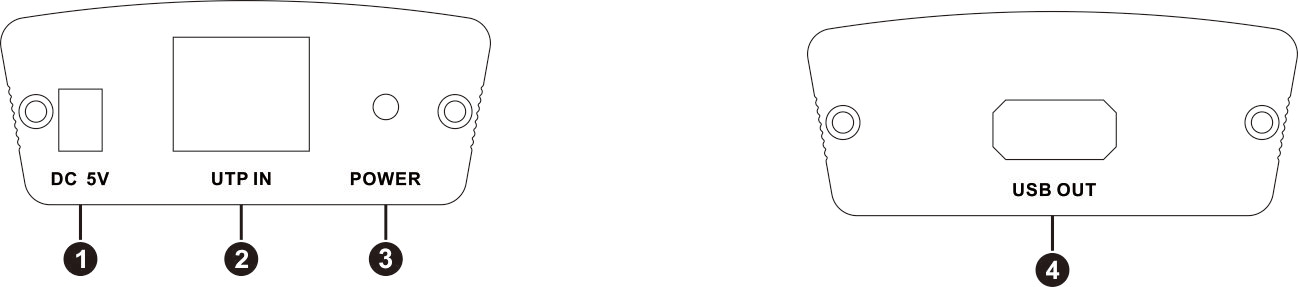

Receiver:



ID

Name

Description

1

DC 5V

5V DC power supply

2

UTP input

Connect a Cat 5/5e/6 cable between this port and the RJ45 connector port on the sending unit

3

Power status

The LED will be active once receiver is connected 5V DC power supply

4

USB input

Connect the USB source to this output

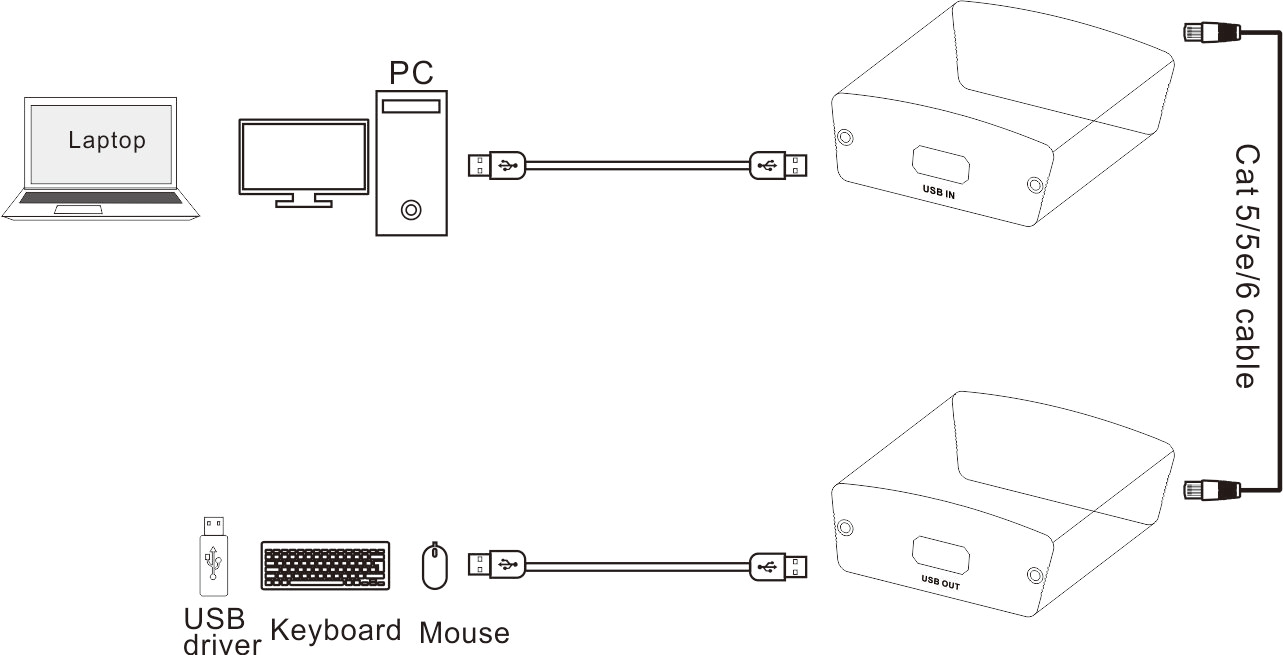

   Connection Diagram



  Specification


UNE0100A10

USB2.0 Extender

Technical

Transmission distance

100M

Data rate

480Mbps

ESD protection

Human body model - ±8kV (Air-gap discharge)

Transmitter

1* USB Type A

1* RJ45

Receiver

1* RJ45

1* USB Type A

Mechanical

Chasing material

Aluminum Alloy

Product Dimension

RX: 60 (W) x 48 (D) x 24 (H) mm

TX: 60 (W) x 48 (D) x 24 (H) mm

Item Weight

330g

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

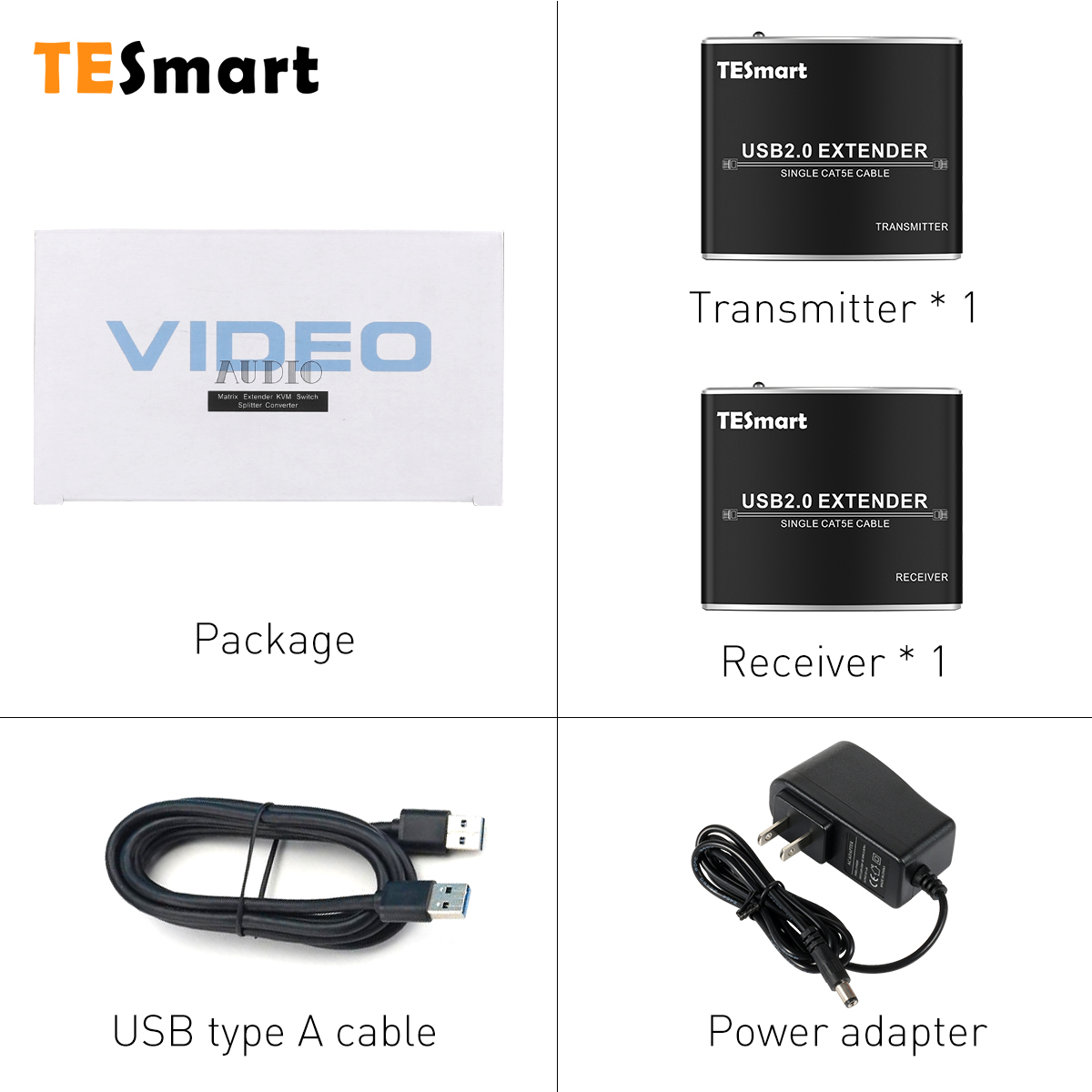

  Packing List


1 * USB2.0 Extender transmitter

1 * USB2.0 Extender receiver

1 * DC 5V Power adapter

1 * User manual
