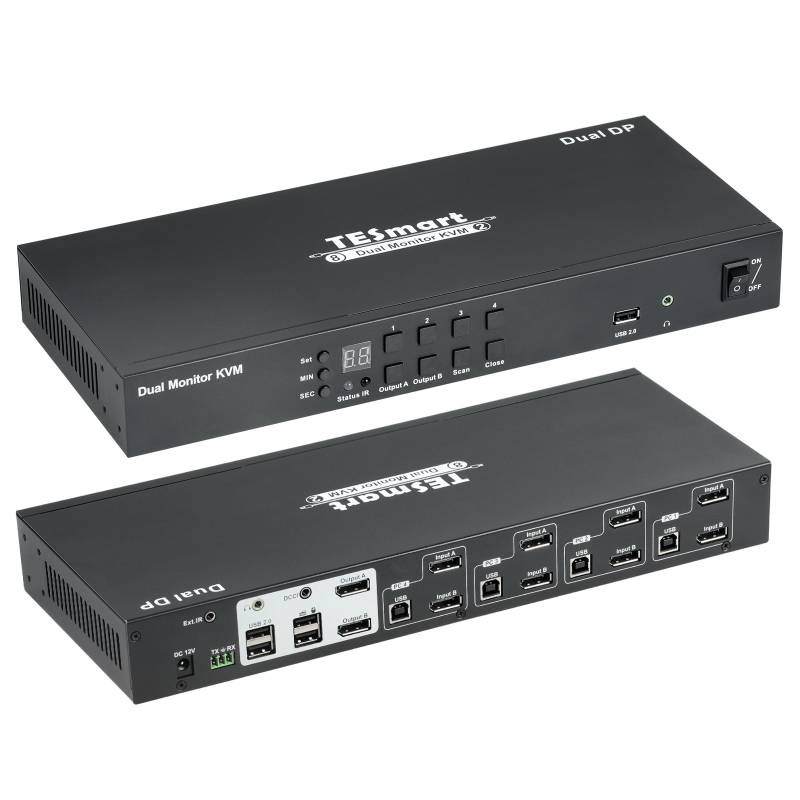

DP Dual Monitor KVM Switch

#PKS0802A10

DP Dual Monitor KVM Switch can easily integrate cross-platform computer devices. Our Dual Monitor KVM Switch can help you add more inputs to your TV or AV receiver if you have too many devices to manage. Each input device requires 2 DisplayPort inputs to display to 2 monitors. Support 2 display mode, you can choose any connected PC to duplicate or extend to 2 monitors, or switch any PC to display on any monitor at will. Support DCCI, you can extend the connected PCs to up to 4 monitors using 2 of this KVM Switch. Support using USB hubs and USB keyboard and mouse. You can connect a printer, USB drive, barcode scanner or other USB 2.0 devices to this KVM. This product also supports several other switching modes. You can switch input ports with front panel button, IR signals and keyboard hot keys.

0.00
0.00


#PKS0802A10

DP Dual Monitor KVM Switch can easily integrate cross-platform computer devices. Our Dual Monitor KVM Switch can help you add more inputs to your TV or AV receiver if you have too many devices to manage. Each input device requires 2 DisplayPort inputs to display to 2 monitors. Support 2 display mode, you can choose any connected PC to duplicate or extend to 2 monitors, or switch any PC to display on any monitor at will. Support DCCI, you can extend the connected PCs to up to 4 monitors using 2 of this KVM Switch. Support using USB hubs and USB keyboard and mouse. You can connect a printer, USB drive, barcode scanner or other USB 2.0 devices to this KVM. This product also supports several other switching modes. You can switch input ports with front panel button, IR signals and keyboard hot keys.


   Features


  • Using only 1 set of keyboard, mouse and 2 monitors to control 4 computers

  • Support 2 monitors to display the desktop of 1 computer or to display 2 desktops at the same time.

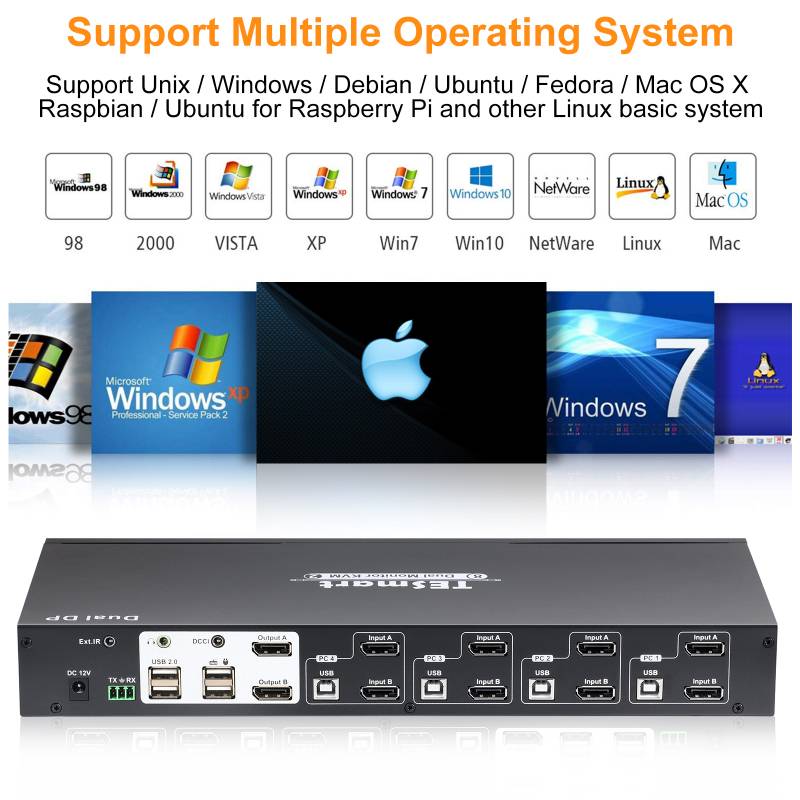

  • Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/ Raspbian/Ubuntu for Raspberry Pi and other Linux basic systems

  • Support resolution up to 3840*2160@60HZ

  • Support hot plug, disconnect or connect devices to the KVM at any time without turning off PC

  • Support front panel button, keyboard hotkeys, IR remote control and RS232 to control KVM

  • Available to use keyboard and mouse without any delay after switching input sources

  • With extra USB 2.0 port, it is possible to  connect barcode scanner, USB hard device or other USB device

  • Support keyboard and mouse pass through mode to improve KVM compatibility

  • Support auto switch to monitor computers in a specified time interval

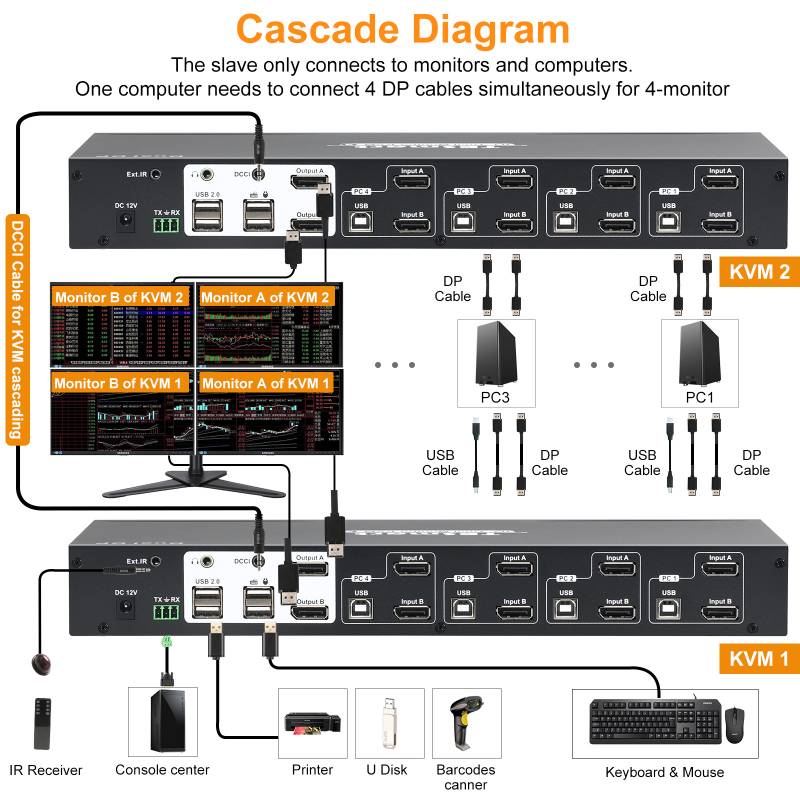

  • Support DCCI

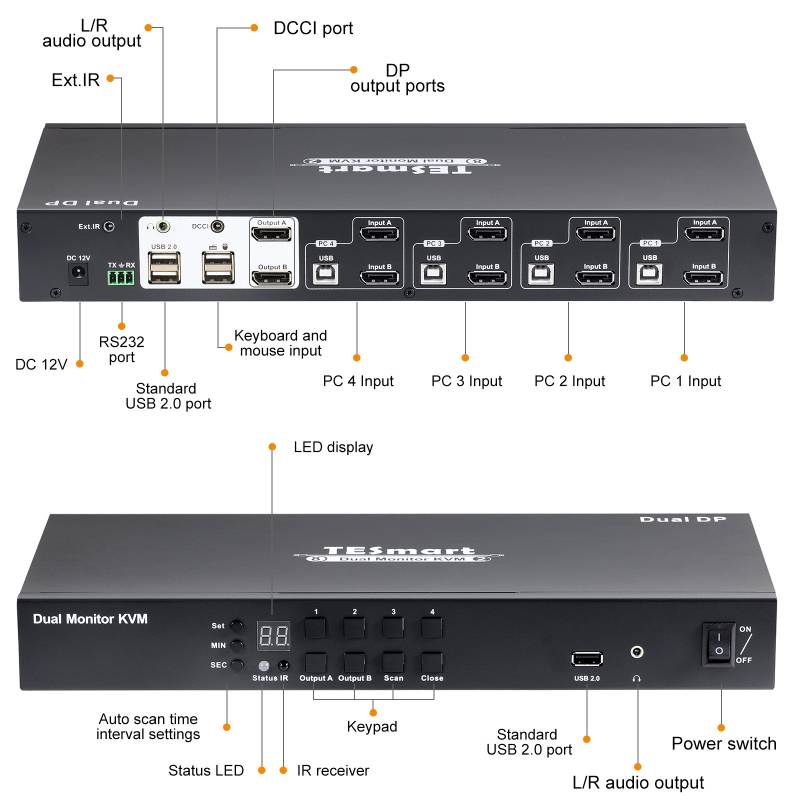

  Panel Description







ID

Name

Description

1

DC 12V input

DC 12V power supply

2

RS232 port

Connect this port to any control termination, then it is able to select the input sources by sending RS232 commands

3

Ext.IR

For extended IR receiver cable input

4

L/R audio output

Analog audio output, connect to speaker

5

Standard USB 2.0 port

Connect to USB 2.0 devices, printers, USB drives

6

DCCI port

Used for product cascading to realize simultaneous display of 4 monitors

7

Keyboard and mouse input

Connect to keyboard and mouse

8

HDMI output ports

Connect to DP displays

9

PC 4 Input

DP input A/B:Connect to the two outputs of the same computer

USB:Connect to computer by USB Type A to Type B cable

10

PC 3 Input

DP input A/B:Connect to the two outputs of the same computer

USB:Connect to computer by USB Type A to Type B cable

11

PC 2 Input

DP input A/B:Connect to the two outputs of the same computer

USB:Connect to computer by USB Type A to Type B cable

12

PC 1 Input

DP input A/B:Connect to the two outputs of the same computer

USB:Connect to computer by USB Type A to Type B cable

13

Auto scan time interval settings

[MIN]: Press [MIN] to loop between 0~59 minutes

[SEC]: Press [SEC] to loop between 0~59 seconds

[Set]: After setting minutes and seconds, press button [Set] to enter final scan time interval setting

14

LED display

Display current selected input port

15

Status LED

Red: Turn off auto scanning mode

Green: Turn on auto scanning mode

16

IR receiver

Receive IR remote signal

17

Keypad

[1~4]: Press button[1]~[4] to directly select input 1~4

[Output A]: Keyboard and mouse focus on the desktop of output A in the display mode 2

[Output B]: Keyboard and mouse focus on the desktop of output B in the display mode 2

[Output A]+[1~4]: After pressing [Output A], then press [1~4] to switch input sources of output A

[Output B]+[1~4]: After pressing [Output B], then press [1~4] to switch input sources of output B

[Close]: Press this button to turn on or off the LED display and monitor

[Scan]: Press this button to start or stop automatically scanning between input1 to input8. The interval time can be set by [Set], [MIN], [SEC] as described above

18

Power switch

Turn on or turn off power supply

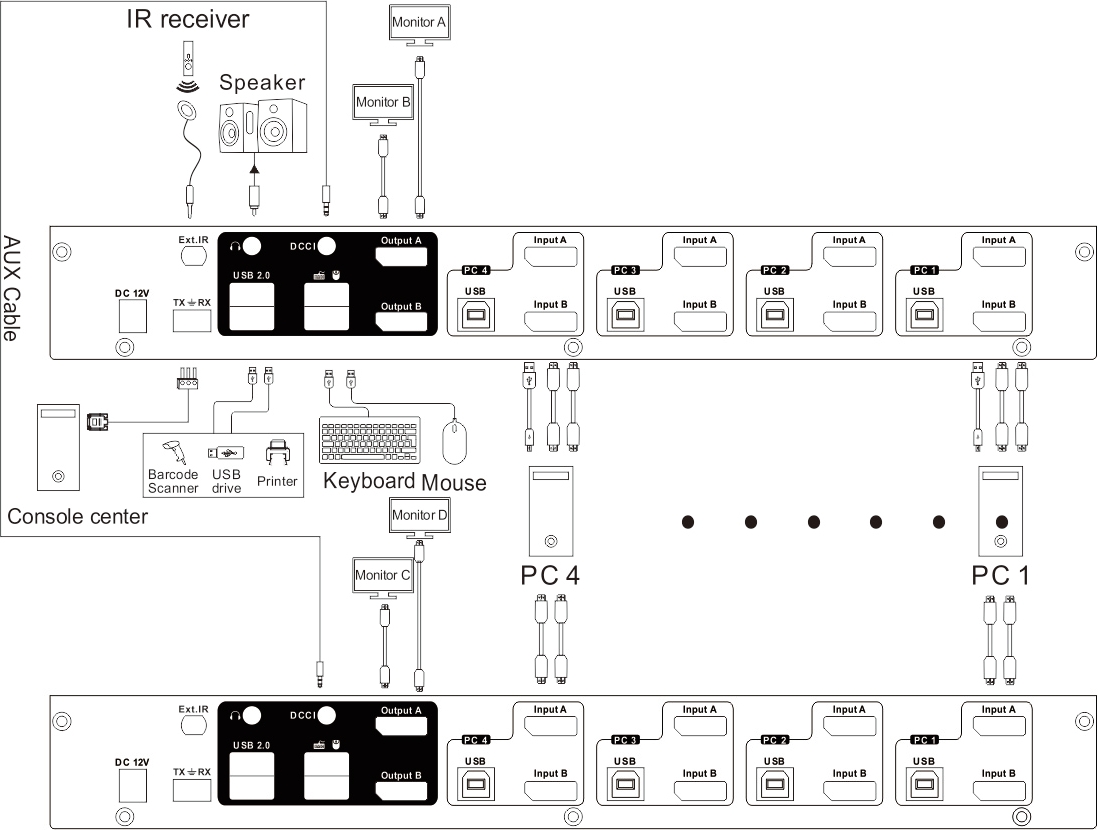

   Connection Diagram







   Specification



PKS0802A10

DP Dual Monitor KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Console commands

RS232

Technical:

Max. Resolution

3840x2160@60Hz

Auto to get EDID

Yes

Data rate

18 Gbps

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Input ports

Video /Audio

8 * DP Type A

USB 2.0 Hub ports

3 * USB Type A

USB Data

4 * USB Type B

Output ports

Video /Audio

2 * DP Type A

USB 2.0 Hub ports

1 * USB Type A

Keyboard/Mouse emulation

2 * USB Type A

L/R audio output

2*AUX

DCCI output

1*AUX

Ext.IR

1*AUX

RS232

3 Pins jack

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Metal

Product



Dimension

350 (L) x 149 (W) x 44.5 (H) mm

Weight

1268g

Item



Dimension

397 (L) x 197(W) x 107 (H) mm

Weight

2764g

Carton



Dimension

505 (L) x 280 (W) x 395 (H) mm

Quantity

4pcs

Total Weight

11.806kg

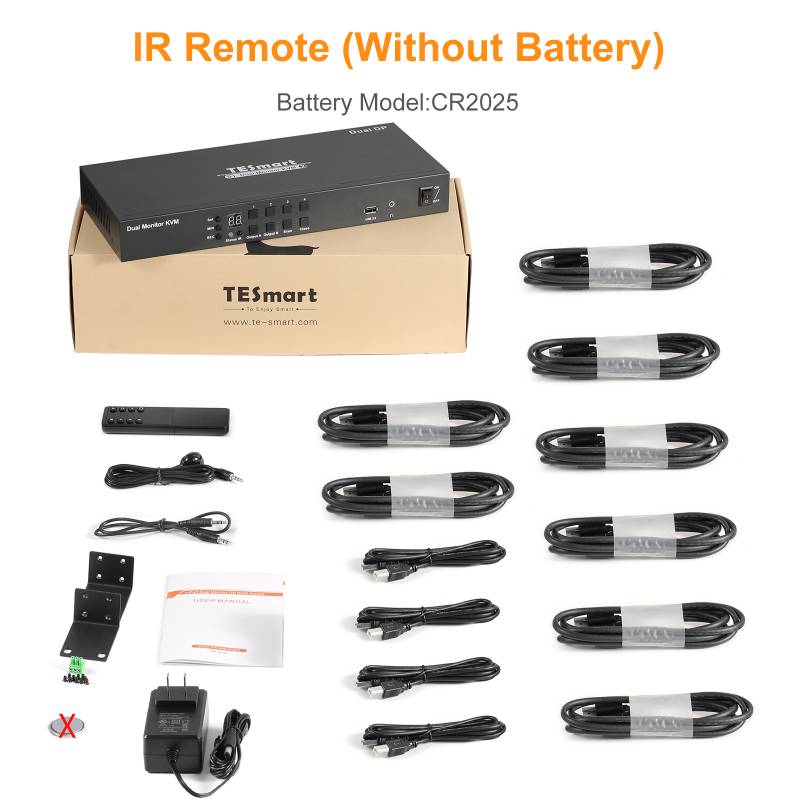

   Packing List


1 * Dual Monitor DP KVM Switch
1 * IR remote control
1 * IR Receiver cable
1 * DC 12V power adapter
1 * 3 Pins Connector(For RS232)
2 * Rack-ears
1 * AUX Cable
1 * User manual
