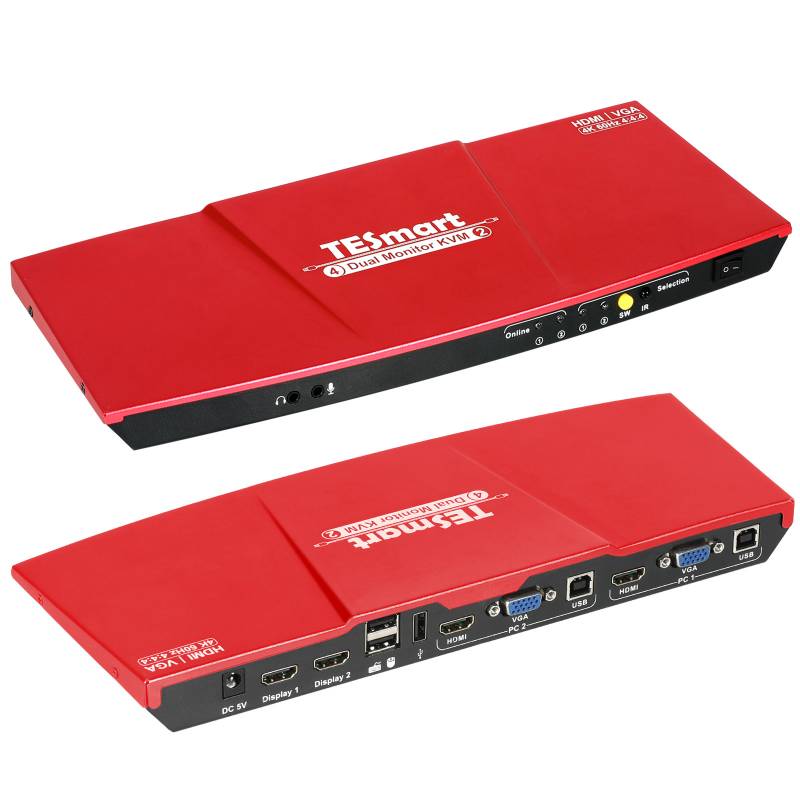

4x2 Dual Monitor KVM

4x2 Dual Monitor KVM

#HKV0402A1U

This 4x2 Dual Monitor KVM provides you with great flexibility in integrating cross-platform computer equipment easily. You can simultaneously output the HDMI and VGA of one PC to two HDMI monitors. You can control the Dual Monitor KVM with front-panel buttons, IR remote control and keyboard hotkeys.

The 4x2 Dual Monitor KVM supports only a set of keyboard & mouse and 2 monitors to control 2 PCs. Support switching between keyboard and mouse and external devices and audio channels using hotkey commands without switching screen order. Support USB 2.0, you can even attach USB 2.0 hub , USB drive, printer, barcode scanner or other USB devices to the Dual Monitor KVM. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.


0.00
0.00


#HKV0402A1U

This 4x2 Dual Monitor KVM provides you with great flexibility in integrating cross-platform computer equipment easily. You can simultaneously output the HDMI and VGA of one PC to two HDMI monitors. You can control the Dual Monitor KVM with front-panel buttons, IR remote control and keyboard hotkeys.

The 4x2 Dual Monitor KVM supports only a set of keyboard & mouse and 2 monitors to control 2 PCs. Support switching between keyboard and mouse and external devices and audio channels using hotkey commands without switching screen order. Support USB 2.0, you can even attach USB 2.0 hub , USB drive, printer, barcode scanner or other USB devices to the Dual Monitor KVM. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.


Download the specification
Features
l  Using only 1 set of keyboard, mouse and 2 monitors to control 2 computers

l Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OSX/Raspbian/Ubuntu for Raspberry Pi and other Linux based systems

l Support resolution up to 3840*2160@60HZ

l  Support hot plug, disconnect or connect devices to the KVM at any time without turning off PCs

l  With EDID emulators in each input port , keep PCs always having correct information , prevent displays setting from changing while switching input ports

l  Support keyboard hot keys , IR remote control and front panel buttons to control KVM

l  Available to use keyboard and mouse without any delay after switching input sources

l With extra USB 2.0 port, it is possible to connect barcode scanner, USB hard drive or other USB devices

l Support keyboard and mouse pass through mode to improve KVM compatibility

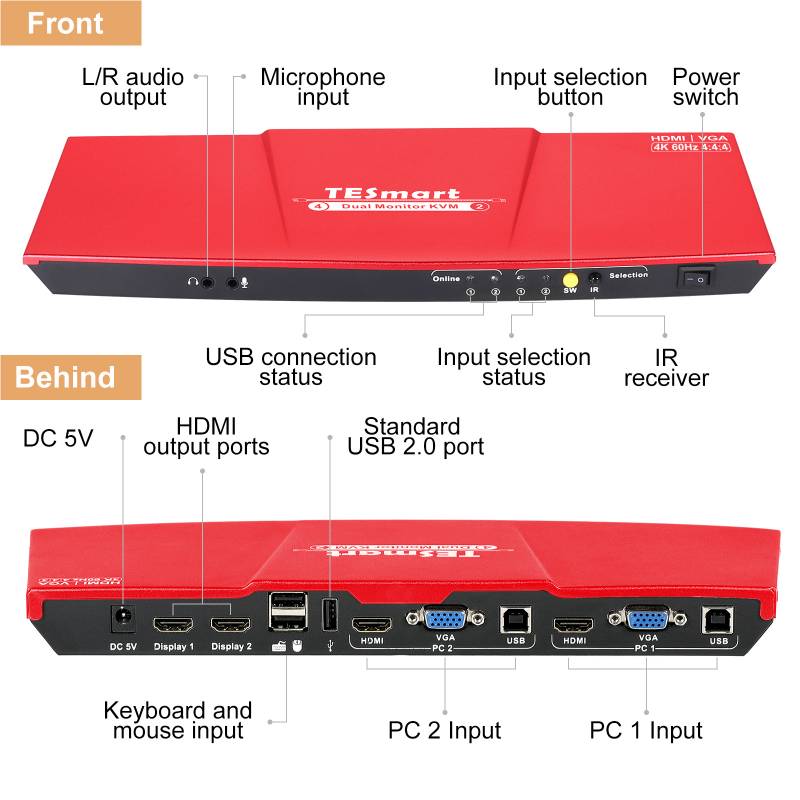

Panel description






ID

Name

Description

1

L/R audio output

Analog L/R audio output

2

Microphone input

Connect with microphone and receive audio signal

3

USB connection status

The corresponding LED will be lit if the USB data port is well connected to the computer and the computers are on

4

Input selection status

Indicate current active selected input source

LED1 on: Both monitors display PC1
LED2 on: Both monitors display PC2

5

Input selection button

Select input source

6

IR receiver

Receive IR remote signal

7

Power switch

Turn on or off power supply

8

DC 5V input

DC 5V power supply

9

HDMI output

Connect to HDMI displays

10

Keyboard and mouse input

Connect with keyboard and mouse

11

Standard USB2.0 input

Connect to USB 2.0 devices such as printers, USB drives

12

PC 2 Input

HDMI: Connect to HDMI output of PC2

VGA: Connect to VGA output of PC2

USB: Connect to USB of the PC2(with Type A to Type B cable)

13

PC 1 Input

HDMI: Connect to HDMI output of PC1

VGA: Connect to VGA output of PC1

USB:Connect to USB of the PC1(with Type A to Type B cable)




Connection diagram




Specification


HKV0402A1U

4X2 Dual Monitor KVM (HDMI+VGA)

Functionality:

Auto Scan

No

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Mouse gesture

No

Console commands

No

Technical:

Max. Resolution

3840x2160@60Hz

Auto to get EDID

Yes

Data rate

18 Gbps

Auto scan interval

5~254 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

2 * HDMI Type A

RS232

NO

LAN

NO

System ports

USB Data

2 * USB Type B

Video / Audio

2 * HDMI Type A ,2 * VGA Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product

Dimension

300 (L) x 117.4 (W) x 30.3 (H) mm

Weight

516g

Item

Dimension

338 (L) x 166 (W) x 90 (H) mm

Weight

1528g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

16.13kg

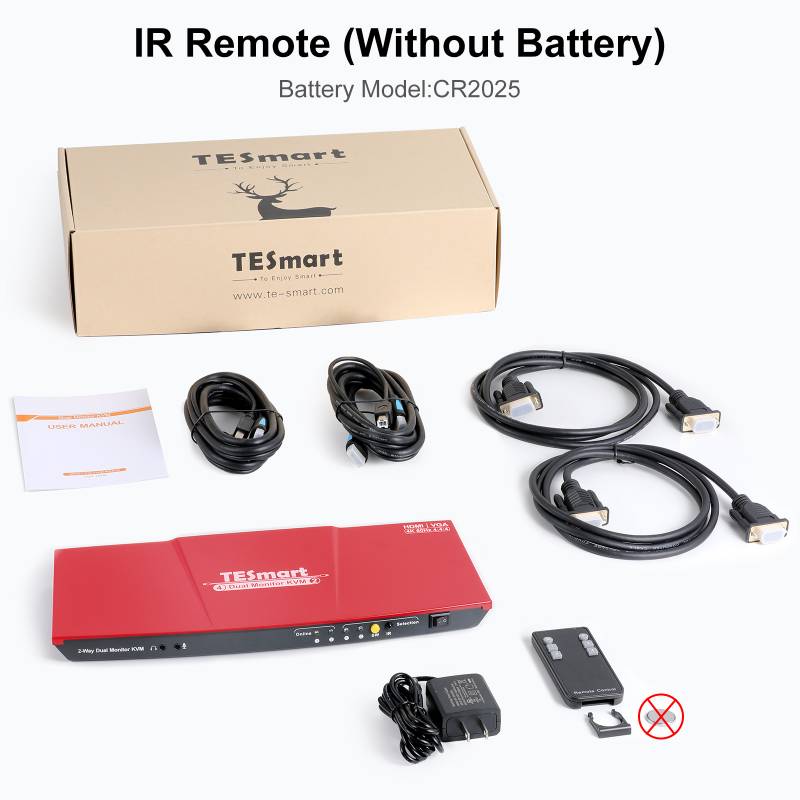

Packing list


1 * 4x2 Dual Monitor KVM

1 * DC 5V Power Adapter

1 * IR Remote Control

1 * User manual
