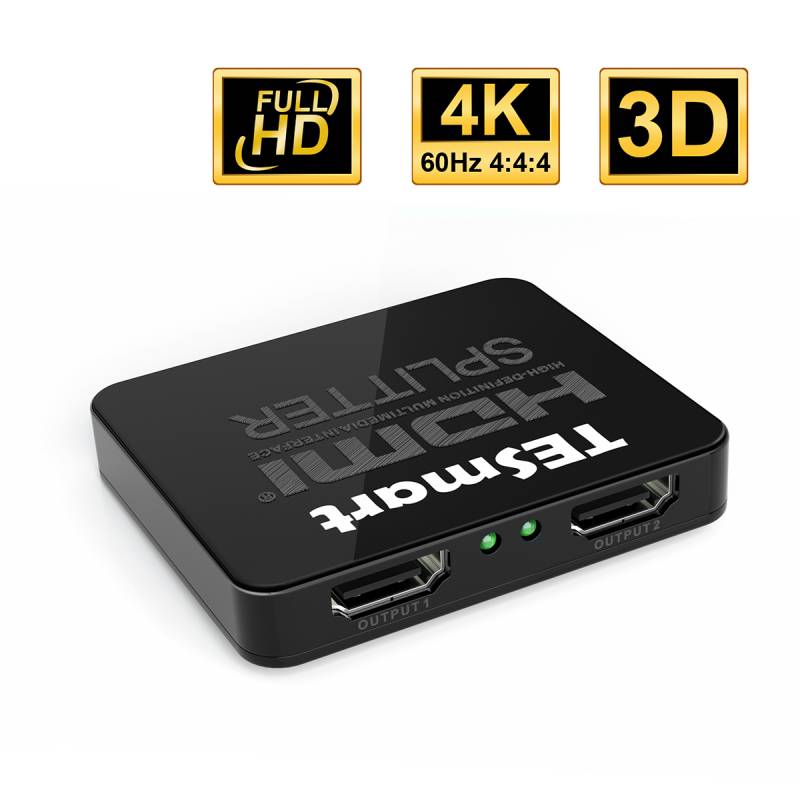

1x2 HDMI Splitter 4K@60Hz 4:4:4

#HSP0102B1U


This 1x2 HDMI splitter distributes one Ultra HD A/V source to two Ultra HD displays simultaneously without loss of quality. Support resolution up to 4K@60Hz 4:4:4. Support HDR, provide higher-quality video with more image detail. With smart EDID management, let the source device sends suitable A/V contents to the variable displays. Support LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.

0.00
0.00


#HSP0102B1U


This 1x2 HDMI splitter distributes one Ultra HD A/V source to two Ultra HD displays simultaneously without loss of quality. Support resolution up to 4K@60Hz 4:4:4. Support HDR, provide higher-quality video with more image detail. With smart EDID management, let the source device sends suitable A/V contents to the variable displays. Support LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.


   Application


The HDMI splitter(HSP0102B1U) can be used in TV stores, exhibition halls, bars, KTV clubs, schools, hospitals, hotel lobbies, retail establishments and any other installations where Ultra HD AV content from an HDMI source needs to be displayed simultaneously on up to two Ultra HD displays.



   Features


 HDCP 2.2 compliant

 Support to use DVI sources and DVI displays with HDMI-to-DVI adapters

 Distribute one Ultra HD A/V source to two Ultra HD displays

 Support resolution up to 4K@60Hz 4:4:4

 Bandwidth up to 18Gbps

 Support up to 36 bit/pixel Deep Color

 Support LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio™

 Support smart EDID management, compatible with most of the HDMI sources and displays

 Support HDR

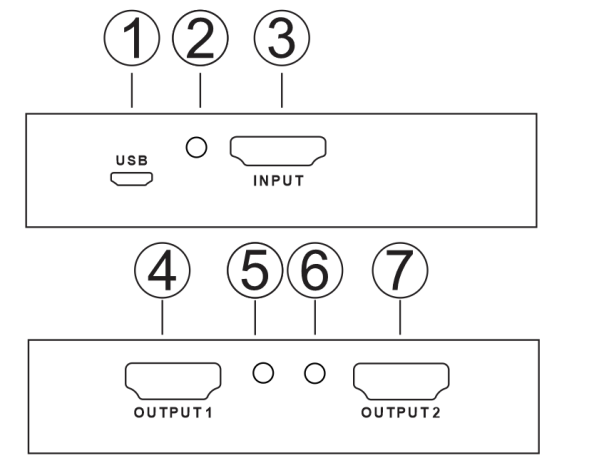

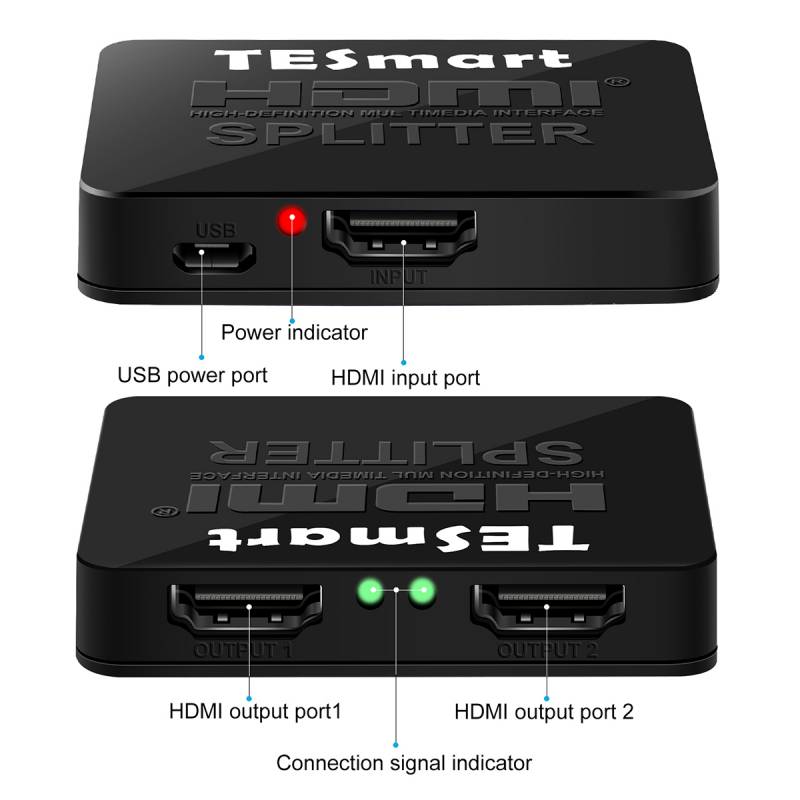

  Panel Description




ID

Name

Description

1

Micro USB power supply

DC 5V power supply

2

Power status

Indicate if power supply is available

3

HDMI Input

Connect to HDMI source device

4

HDMI Output1

Connect to HDMI display

5

Ouput 1  status

Indicate output connection status

6

Ouput 2  status

Indicate output connection status

7

HDMI Output2

Connect to HDMI display


   Connection Diagram





   Specification



HSP0102B1U

1x2 HDMI Splitter

Functionality:

Smart EDID

Yes

Technical:

Max.Resolution

3840*2160@60Hz 4:4:4

HDCP version

2.2

Data rate

18 Gbps

Input

1 * HDMI Type A1* Micro USB

Output

2 * HDMI Type A

ESD protection

Human body model - ±8KV (Air-gap discharge)

Mechanical

Chasing material

Plastics

Power supply

DC 5V power supply

Operating/storage temperature

0 to 70 degree/-40 to 85 degree

Operating humidity

10 to 90% RH

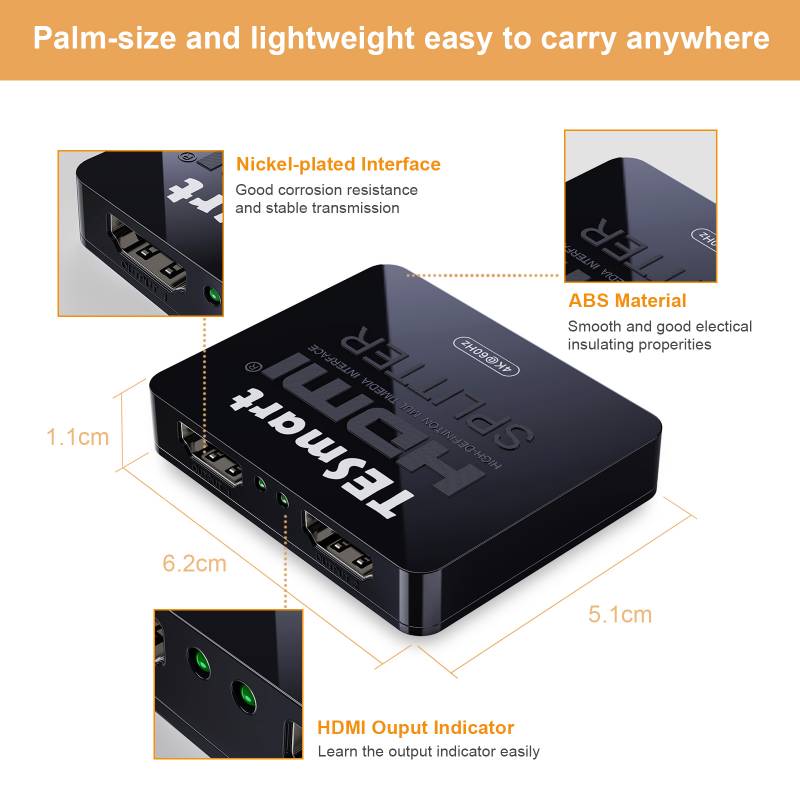

Product



Dimension

62 (L) x 51 (W) x 11 (H) mm

Weight

26.3g

Item



Dimension

118 (L) x 67 (W) x 17(H) mm

Weight

63.3g

Carton



Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

250pcs

Total Weight

16.675kg


   Packing List


1 * 1x2 HDMI  Splitter

1 * Micro USB Cable

1 * User manual
