4x1 HDMI Switch w/ PAP

4x1 HDMI Switch w/ PAP

#HSW0401A10

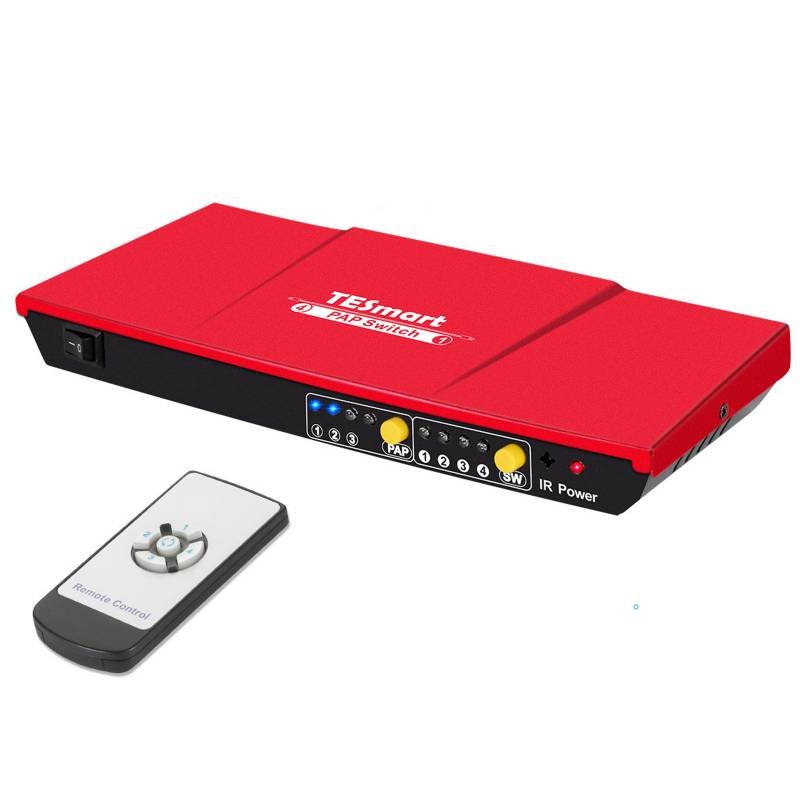

This 4x1HDMI Switch with PAP, routes four Full HD sources to one Full HD display. Each Full HD source can be switched to the display using the front panel push-button control or the included IR remote. And 4 Full HD input sources can appear on the monitor synchronously. This product supports resolutions up to 1080P@60Hz.

0.00
0.00


#HSW0401A10

This 4x1HDMI Switch with PAP, routes four Full HD sources to one Full HD display. Each Full HD source can be switched to the display using the front panel push-button control or the included IR remote. And 4 Full HD input sources can appear on the monitor synchronously. This product supports resolutions up to 1080P@60Hz.

      Demo Video:https://youtu.be/diXEufzGKkU

  Features



    ● Compliant with HDCP 1.3

    ● Seamlessly channel switch

    ● Support IR and front panel keys

    ● Support up to 36bit/pixel Deep color

    ● Support 5 multi-view modes

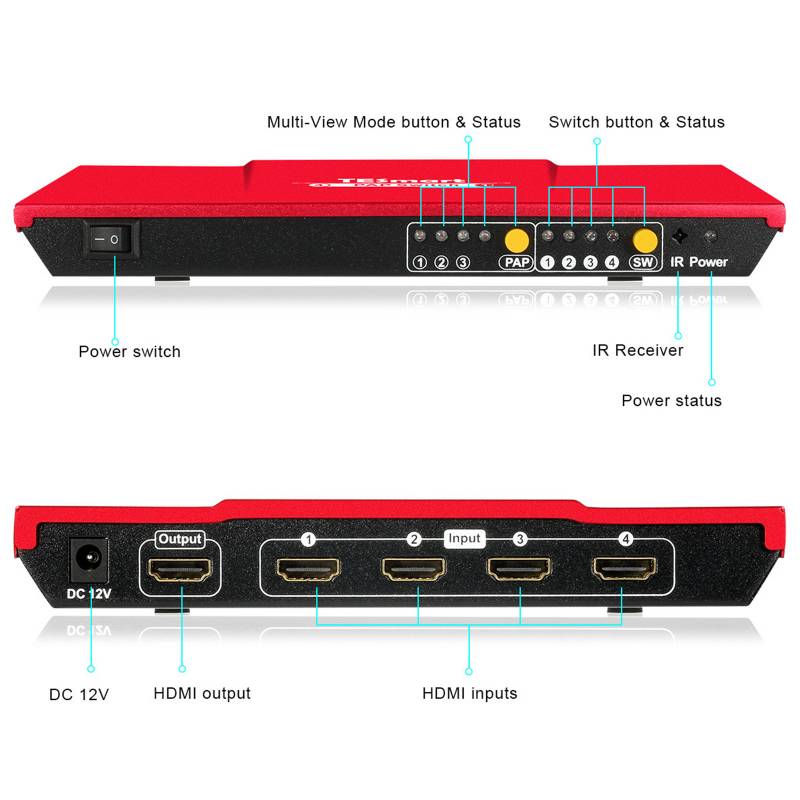

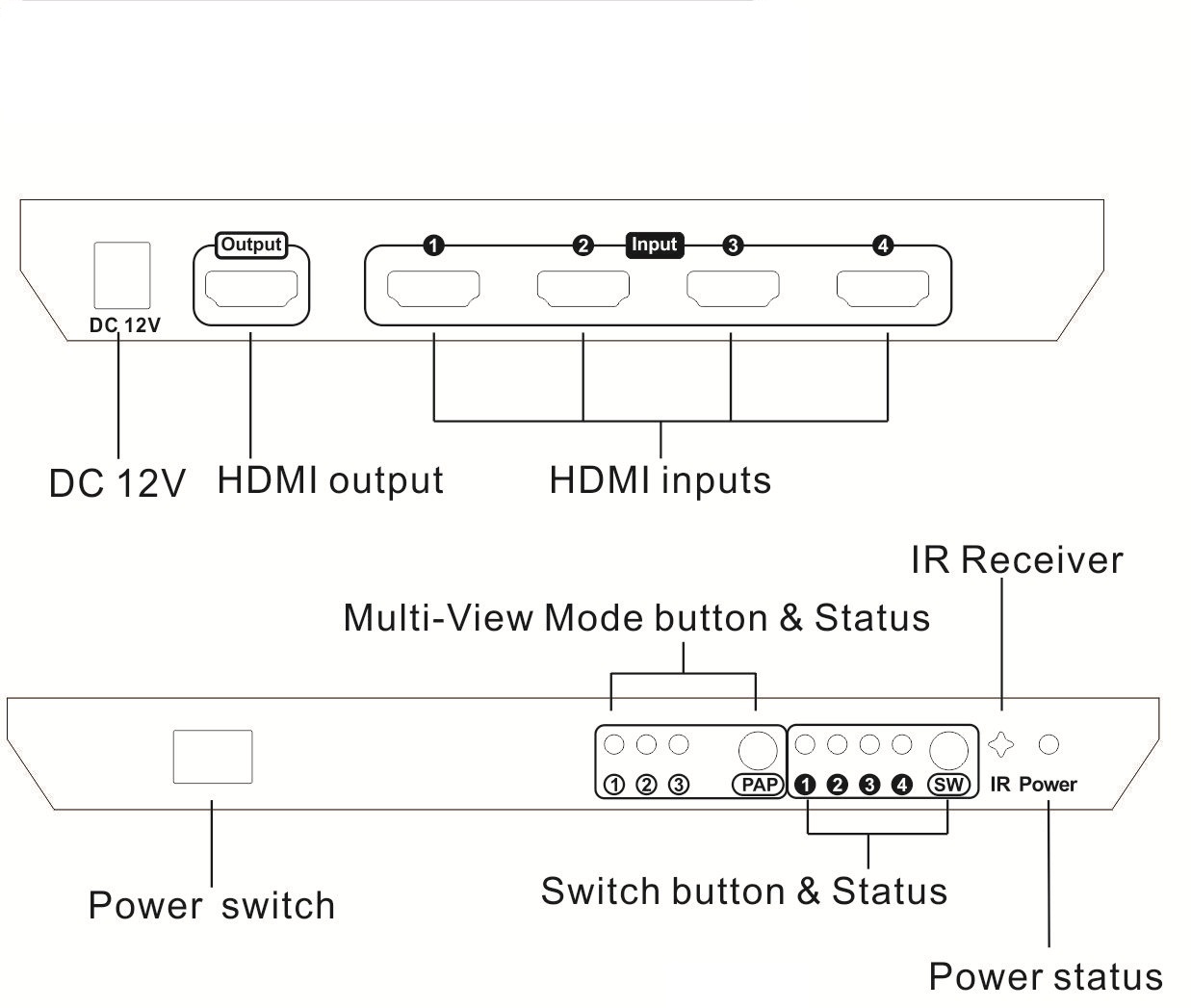

  Panel Description

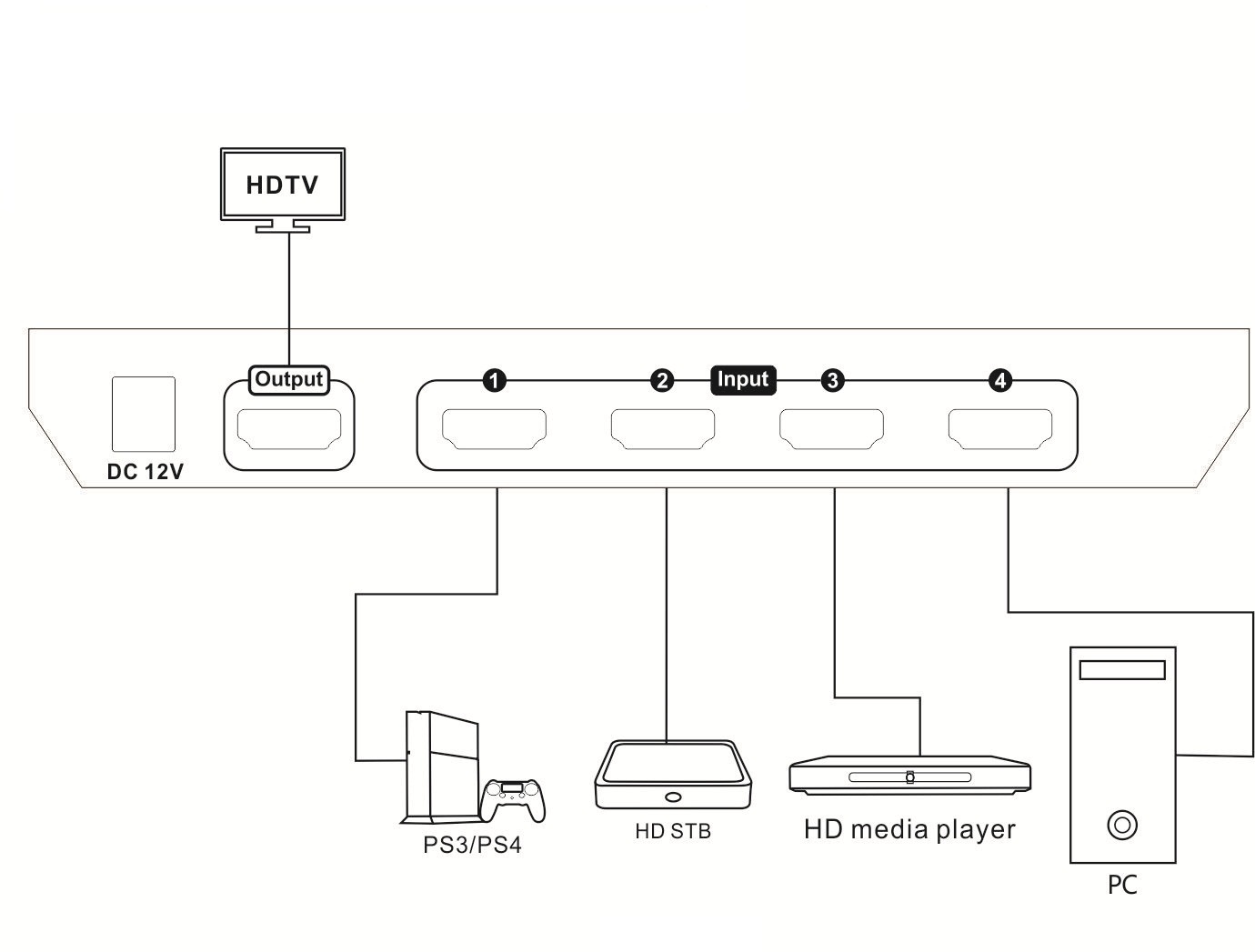

   Connection Diagram





  Specification



HSW0401A10

4x1 HDMI Switch w/ PAP

Technical

HDCP compliance

Yes

Data rate

10.2 Gbps

Max. Resolution

1080P@60Hz

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

4* HDMI Type A

Output

1* HDMI Type A

Mechanical

Chasing material

Aluminum Alloy

Power supply

DC 12V 2A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

Product

Dimension

196(L) x 80 (W) x 24 (H) mm

Weight

255g

Item

Dimension

245 (L) x 135 (W) x 90 (H) mm

Weight

563g

Carton

Dimension

515 (L) x 285 (W) x 470 (H) mm

Quantity

20pcs

Total Weight

12.11kg


  Packing List


1 * 4x1 PAP Switch

1 * DC 12V 2A Power Adapter

1 * IR Remote Control

1 * Quick-Start Guide
