KVM Extender over Fiber optic cable

#HFE0020B20

This KVM Extender over Fiber optic cable (HFE0020B20), uses Single-Mode optical fiber (SC connector) cable for longer transmission distance, which is up to 20KM. Near lossless compressed video, and the latency less than 80us, support resolution up to 3840x2160@30Hz. Support multiple control methods, front panel keys, IR signal and RS232 console commands.

0.00
0.00


#HFE0020B20

This KVM Extender over Fiber optic cable (HFE0020B20), uses Single-Mode optical fiber (SC connector) cable for longer transmission distance, which is up to 20KM. Near lossless compressed video, and the latency less than 80us, support resolution up to 3840x2160@30Hz. Support multiple control methods, front panel keys, IR signal and RS232 console commands.


   Features


l  HDCP 1.4 compliant

l  Support single-mode fiber transmission, transmission distance up to 20KM

l  Near lossless compressed video, resolution up to 3840*2160@30Hz

l  Support multiple control methods, front panel keys, IR signal and RS232 console commands

l  Support IR and RS232 pass through

l  Latency less than 80us



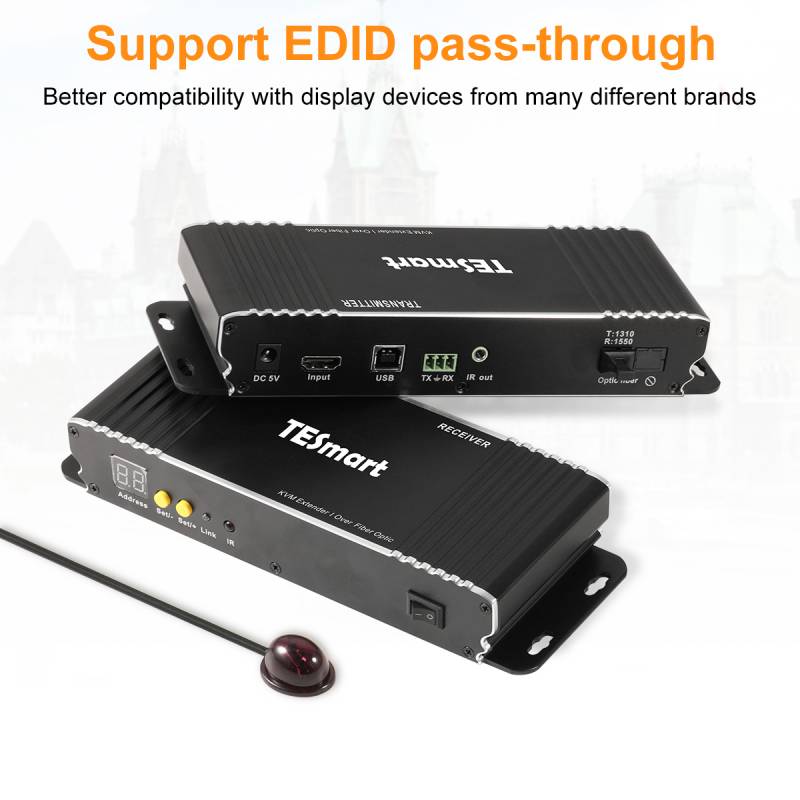

  Panel Description


     Transmitter:




1.DC 5V

7.LED display

2.HDMI input

8.Input address selection button, select previous Input address

3. USB ports connected to PC

9.Input address selection button, select next Input address

4.3 pins jack for RS232 console

10.Input and output connection status

5.IR transmitter

11.IR signal receiving end

6.Fiber optic output

12.Power switch

Receiver:





1.DC 5V

7.LED display

2.HDMI input

8.Input address selection button, select previous Input address

3. Keyboard and mouse inputs

9.Input address selection button, select next Input address

4.3 pins jack for RS232 console

10.Input and output connection status

5.IR receive

11.IR signal receiving end

6.Fiber optic input

12.Power switch



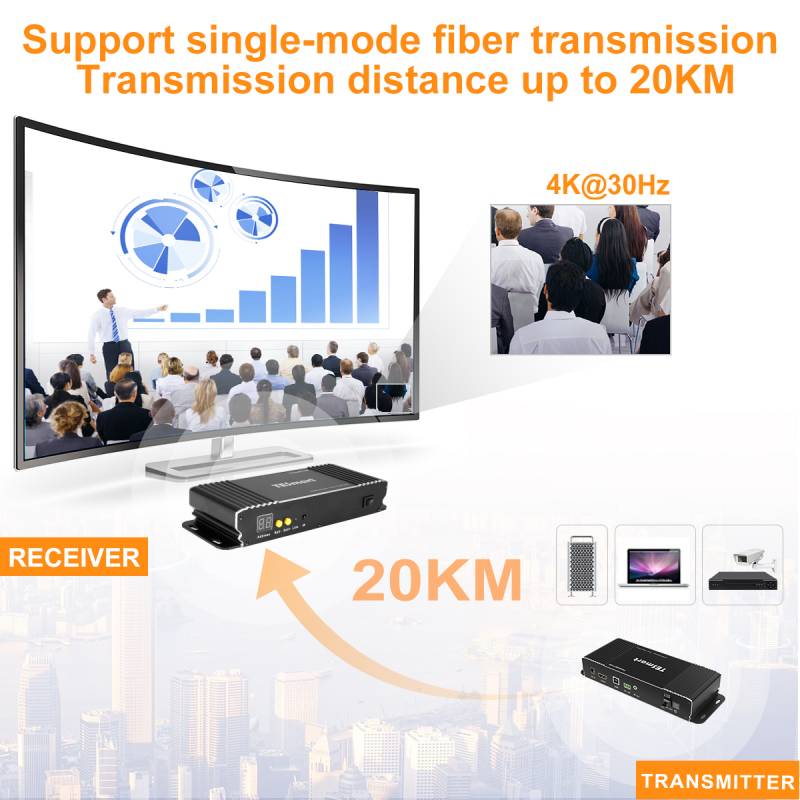

   Connection Diagram



   Specification



HFE0020B20

KVM Extender over Fiber optic cable

Technical

HDCP compliance

1.4

Data rate

10.2 Gbps

Fiber type

Signal-mode

Features

Front panel buttons

Yes

Keyboard hot keys

No

IR remote control

Yes

Console commands

RS232

Max. Resolution

3840*2160@30Hz

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

                         Transmitter: 1* HDMIRS232(3 pins jack)

                         Receiver: 1* Optical Fiber (SC connector)2* USB Type A

Output

                         Transmitter: 1* Optical Fiber (SC connector), 1* USB Type B

                         Receiver: 1* HDMI Type A, RS232(3 pins jack)

Mechanical

Chasing material

Aluminum Alloy

Product Dimensions

                            RX: 188 (W) x 72.5 (D) x 35.5 (H) mm

                            TX: 188 (W) x 72.5 (D) x 35.5 (H) mm

Item Weight

400g

Power supply

DC 5V 2A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

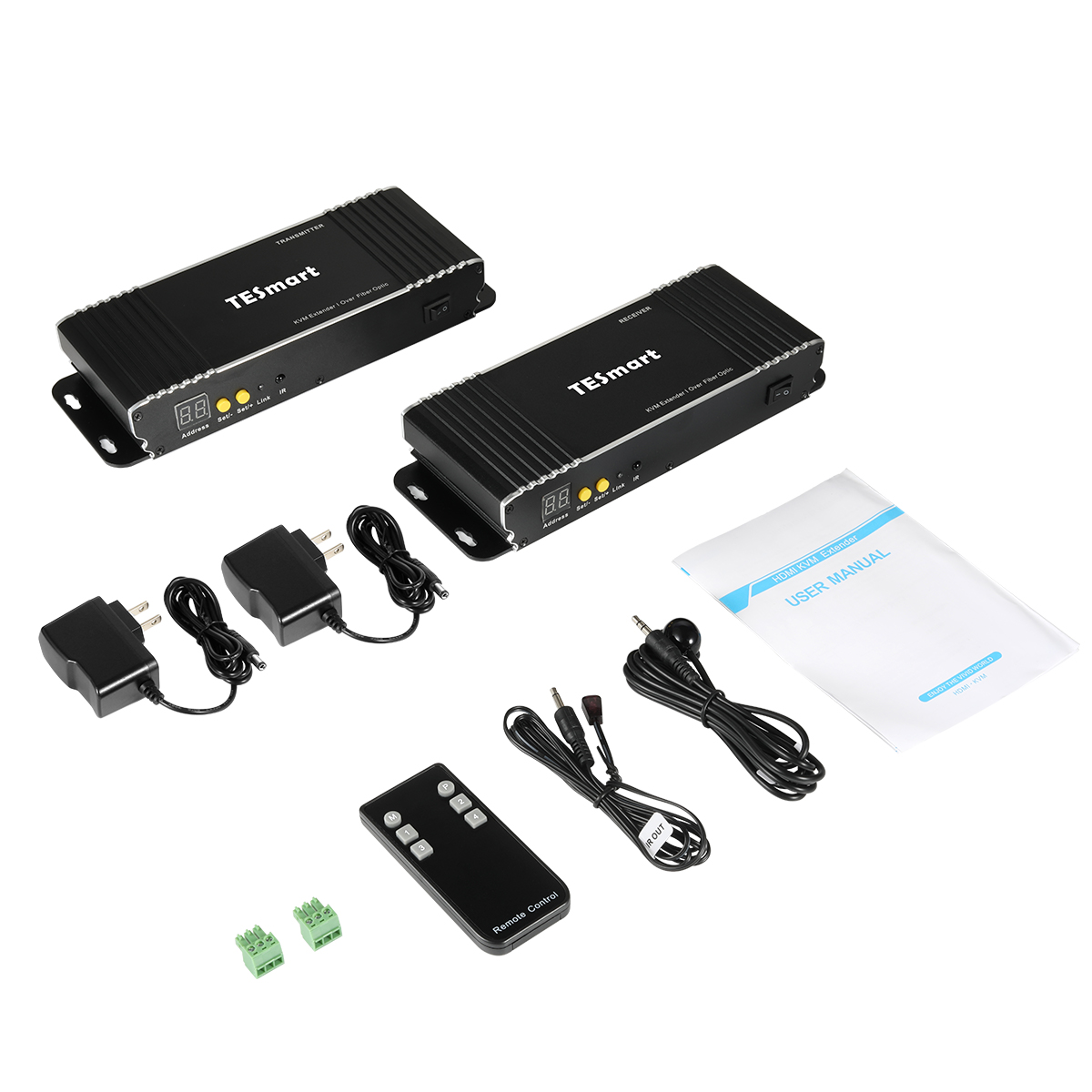

   Packing List


1 *KVM Extender over Fiber optic cable transmitter

1 * KVM Extender over Fiber optic cable receiver

1 * IR transmitter

1 * IR receiver

1 * IR remote control

2 * RS232 plug(3 pins)

2 * DC 5V Power Adapter

1 *User manual
