Features
l Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N video systems
l Support 720P and 1080P output
l L/R stereo audio input
l USB power supply

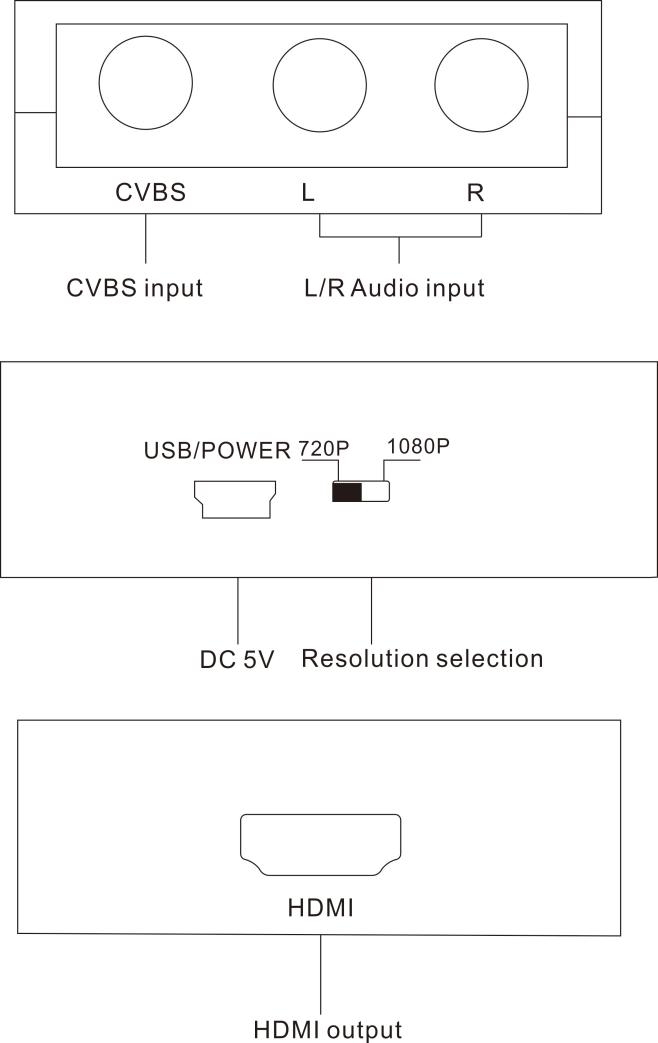

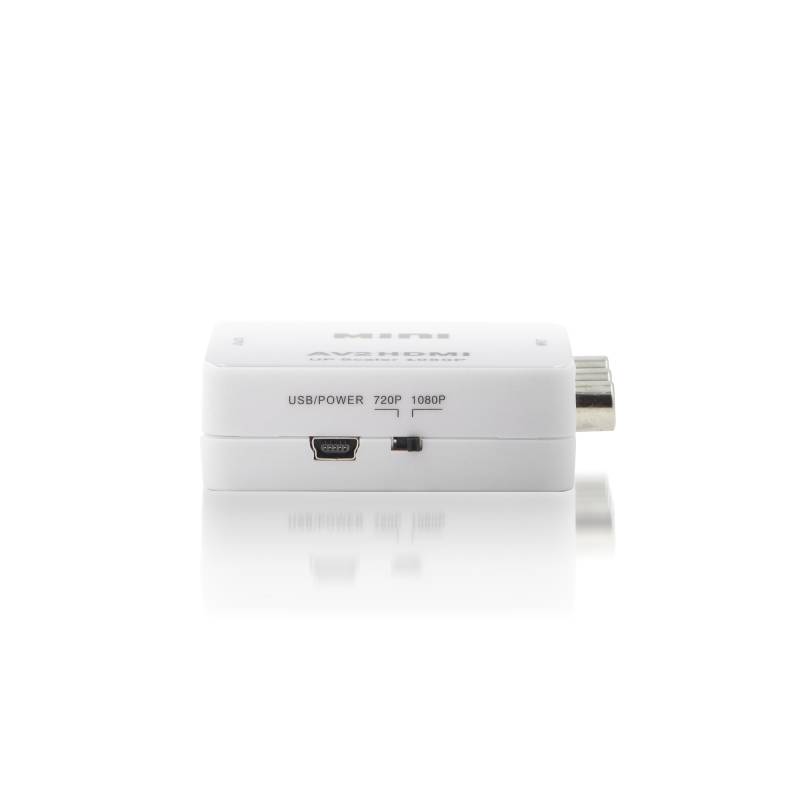

Panel Descripton

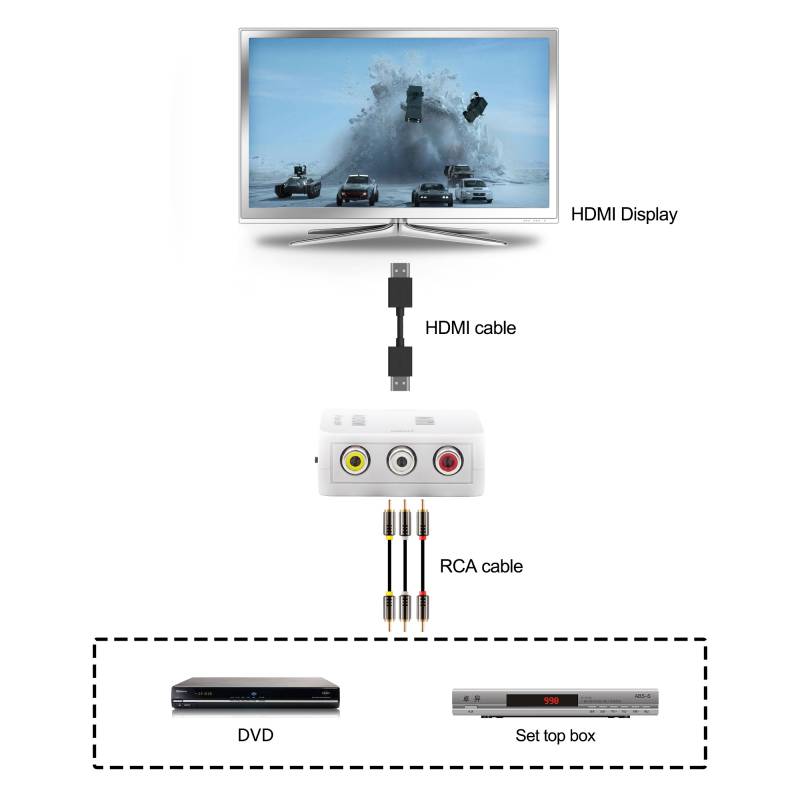

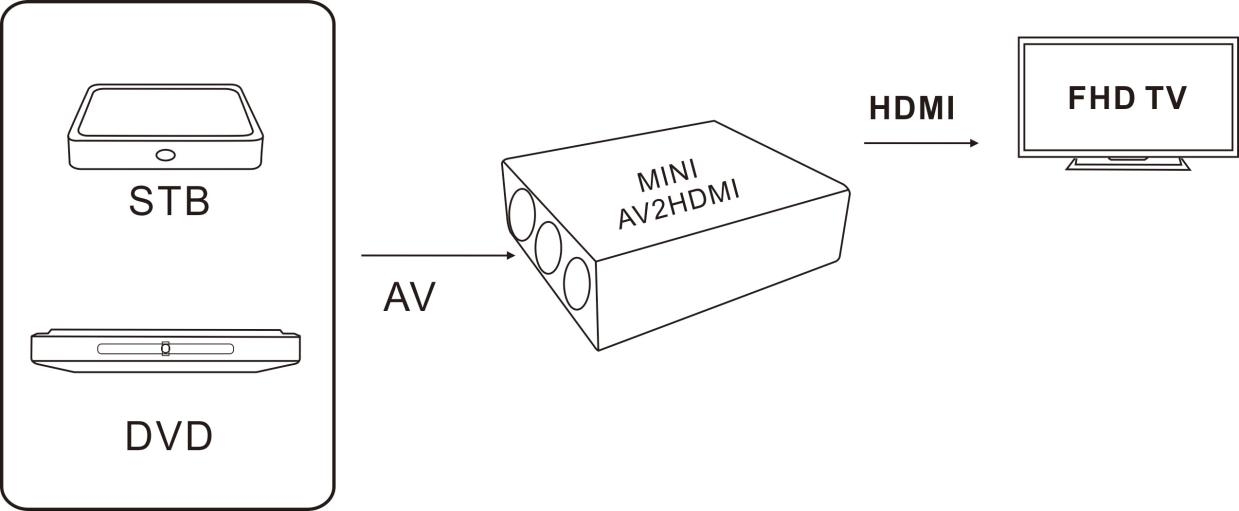

Connection diagram
Specification

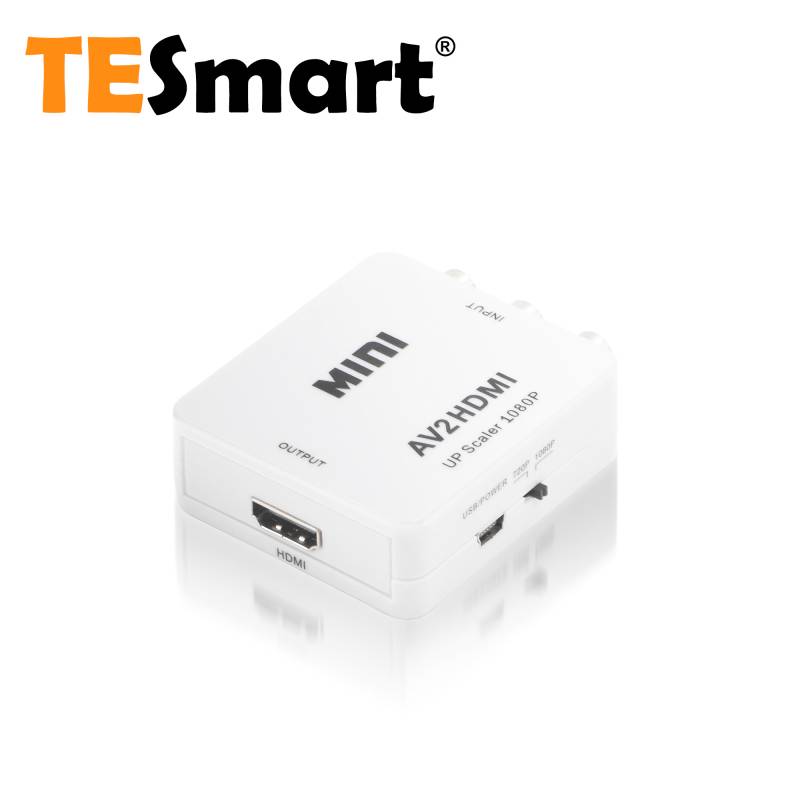

A2H0101W00 | AV to HDMI Converter |
Technical |
Support TV systems | PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N |
Output Resolution | 720P50/60Hz, 1080P50/60Hz |
ESD protection | Human body model - ±8kV (Air-gap discharge) |

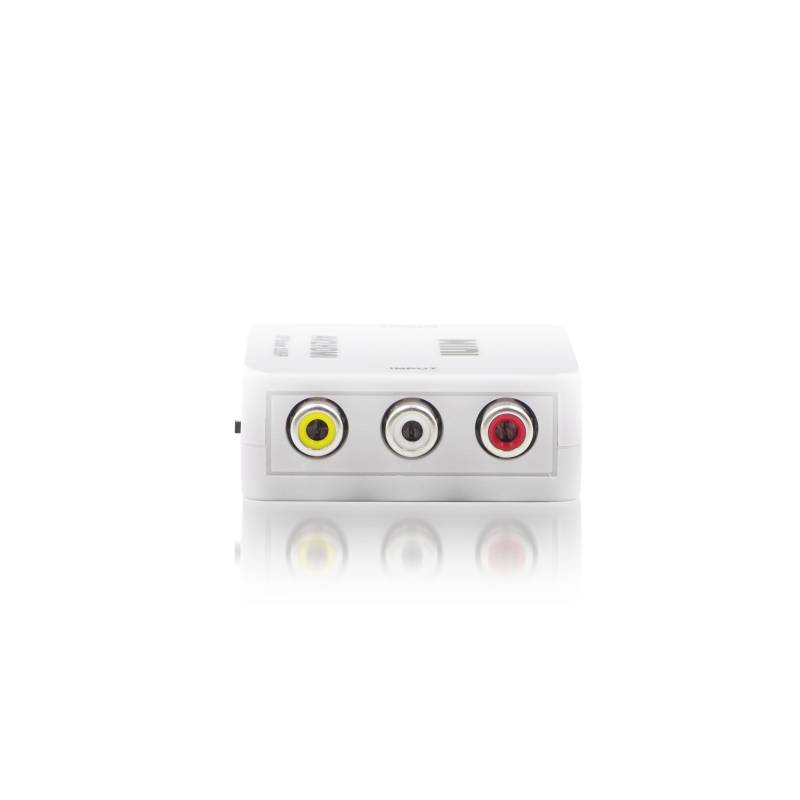

Input | 3* RCA Jack ( Video & L/R Audio), 1* Mini USB( DC 5V) |
Output | 1 * HDMI type A |
Mechanical |
Chasing Material | Plastic |
Product Dimensions | 66(D)x55(W)x20(H)mm |
Item Weight | 40g |
Power Supply | DC 5V 1A |
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree |
Operating Humidity | 10 to 90% RH |

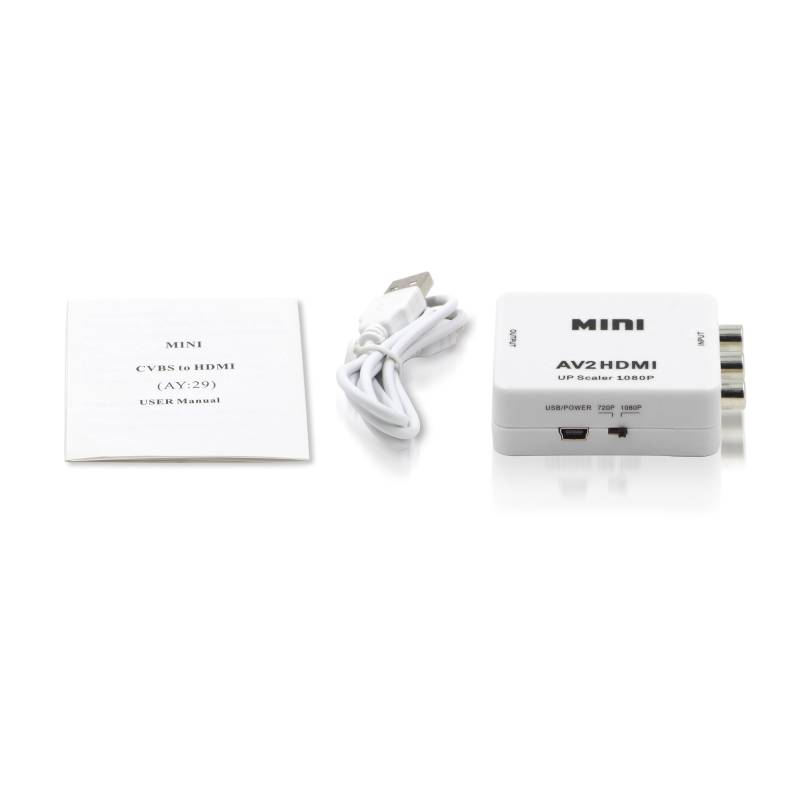

Packing List
1 * AV to HDMI Converter
1 * Mini USB Cable (Power supply)
1 * User Manual
