8x1 HDMI KVM Switch

#HKS0801A40

This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 8x1 HDMI KVM switch supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no blank video delay. It supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard.

With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.




0.00
0.00


#HKS0801A40

This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 8x1 HDMI KVM switch supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no blank video delay. It supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard.

With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.





   Features


l  Using only 1 set of keyboard and mouse to control 8 PCs

l  Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

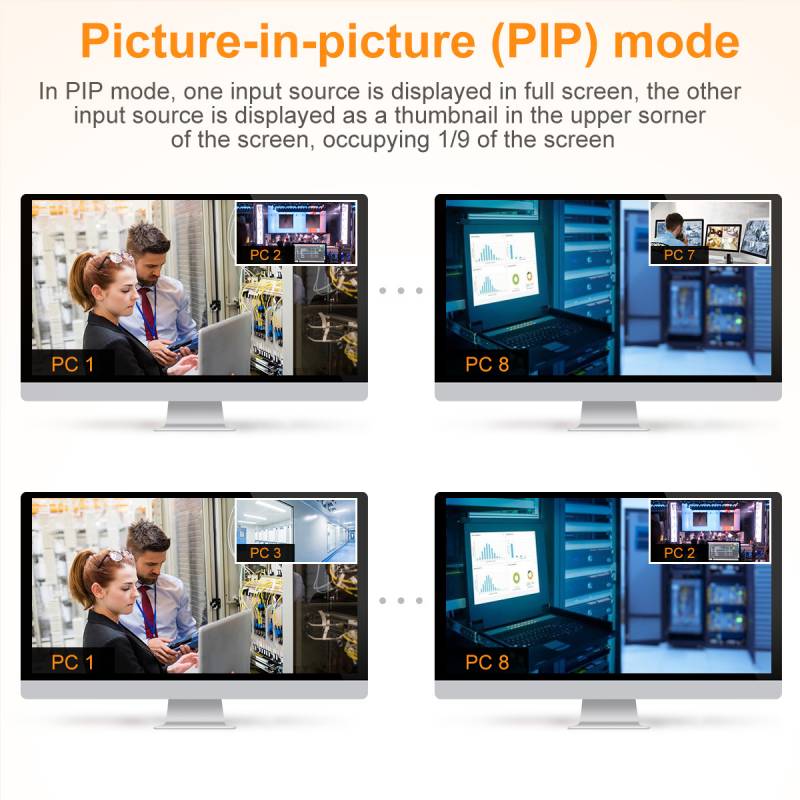

l  Support PIP(Picture-in-Picture) mode, one small window will be laid over another window

l  Support seamless switching of HDMI sources with same resolution, ensure no switching delay and no blank video delay

l  With EDID emulators in each input port, keep PCs always having correct display information

l  Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices

l  Support auto switching to monitor computers in a specified time interval

l  Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or TCP/IP commands to control the KVM switch

l  Available to use keyboard without any delay after switching input sources

l  Support resolution up to 3840*2160@30Hz

l  With extra standard USB 2.0 hub port, it is possible to connect barcode scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer

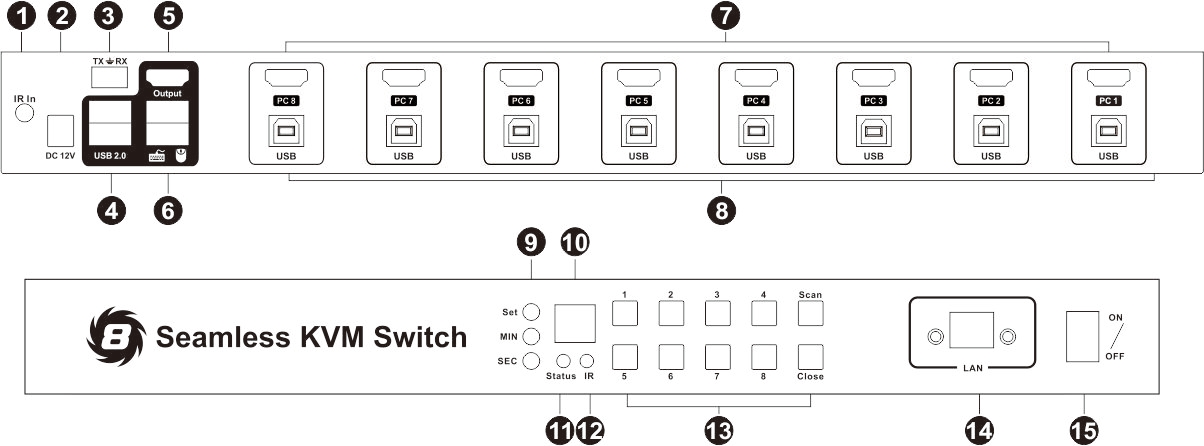

  Panel Description






ID

Name

Description

1

IR In

Connect IR receiver extension cable to this port, then it is able to use IR control even the KVM switch is installed in a rack

2

DC 12V

12V DC power supply

3

RS232 port

Connect this port to any control termination, then it is able to select the input sources by sending RS232 commands

4

USB 2.0 port

For USB 2.0 devices, for example printers, USB hard disk, barcode scanner, touch pad etc

5

HDMI output

Connect to HDMI display

6

Keyboard and mouse input

For USB keyboard and mouse input, including wireless keyboard and mouse

7

HDMI inputs

Connect to HDMI input source

8

USB data port

Connect to computer by USB Type A to Type B cable

9

Auto scan time interval settings

[MIN]: Press [MIN] to loop between 0~59 minutes

[SEC]: Press [SEC] to loop between 0~59 seconds

[Set]: After setting minutes and seconds, press button [Set] to enter final scan time interval setting

10

LED display

Display current selected input port

11

Status LED

Red: Turn off auto scanning mode

Green: Turn on auto scanning mode

12

IR receiver

Receive IR signal

13

Keypad

[1~8]: Press button[1]~[8] to directly selelct input input 1~8

[Close]: Press this button to turn on or off the LED display and monitor

[Scan]: Press this button to start or stop automatically scanning between input1 to input8. The interval time can be set by [Set], [MIN], [SEC] as described above

14

LAN port

By connecting to the LAN through this port, you can use the terminal device in the same LAN to send TCP/IP commands to control the switching  of input port

15

Power switch

Turn on or turn off power supply

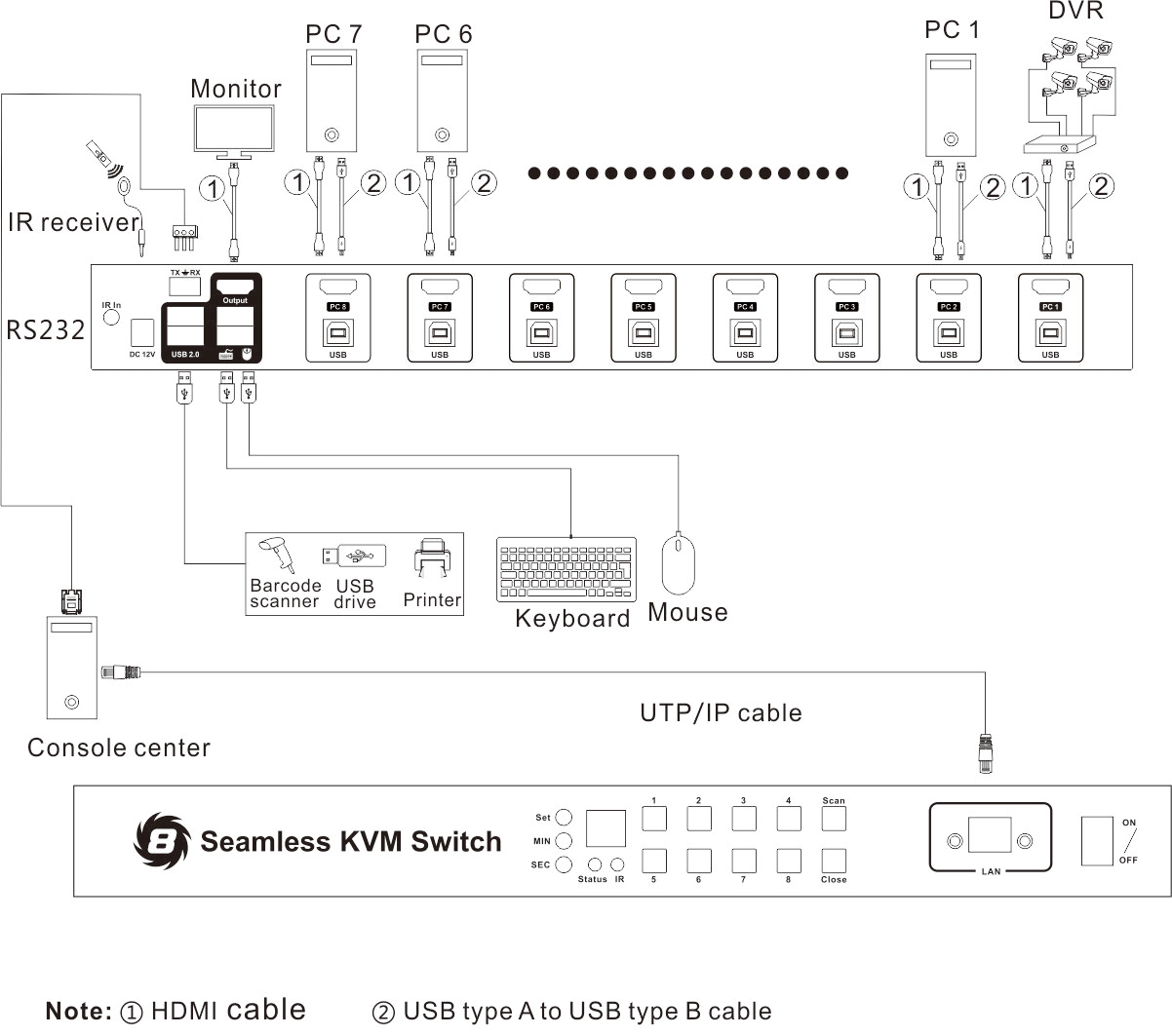

   Connection Diagram





   Specification


HKS0801A40

8x1 HDMI KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Console commands

RS232 / IP

Technical:

Max. Resolution

3840x2160@30Hz

Auto to get EDID

Yes

Data rate

10.2 Gbps

Auto scan interval

5~3600 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

2 * USB Type A

Video /Audio

1 * HDMI Type A

RS232

3 Pins jack

LAN (TCP/IP)

1 * RJ45

IR extension input

1 * AUX

System ports

USB Data

8 * USB Type B

Video / Audio

8 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Metal

Product



Dimension

440 (L) x 150 (W) x 44.5 (H) mm

Weight

1879g

Item



Dimension

488 (L) x 123 (W) x 186 (H) mm

Weight

2633g

Carton



Dimension

505 (L) x 280 (W) x 395 (H) mm

Quantity

4pcs

Total Weight

11.282kg

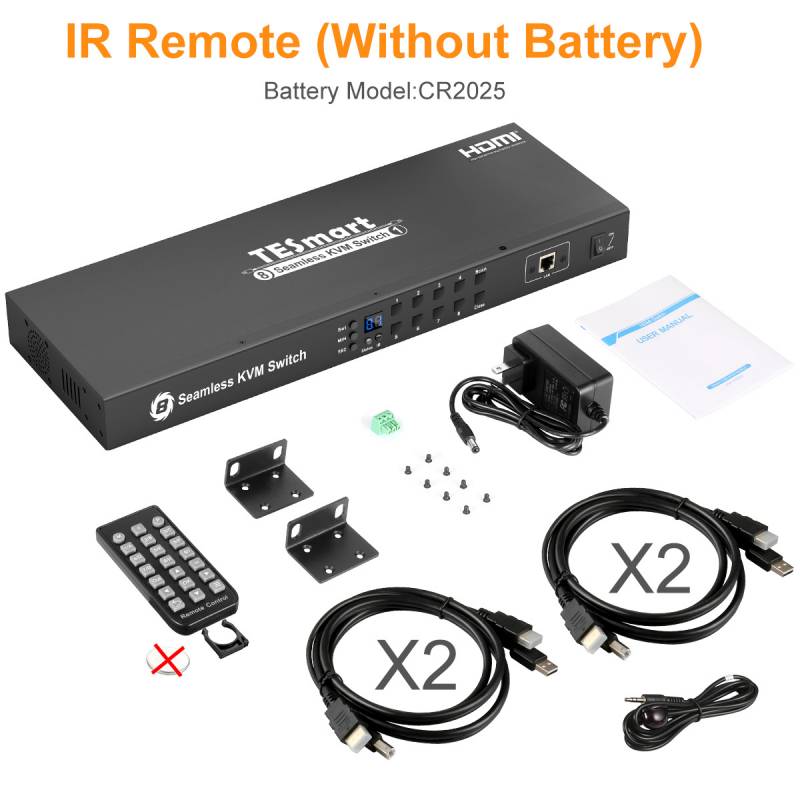

   Packing List


1 * 8x1 HDMI KVM Switch

1 * DC 12V 2A Power Adapter

1 * IR Remote Control

1 * IR Receiver Cable

1 * 3 Pins Connector (For RS232)

2 * Rack-ears

1 * Quick-Start Guide
