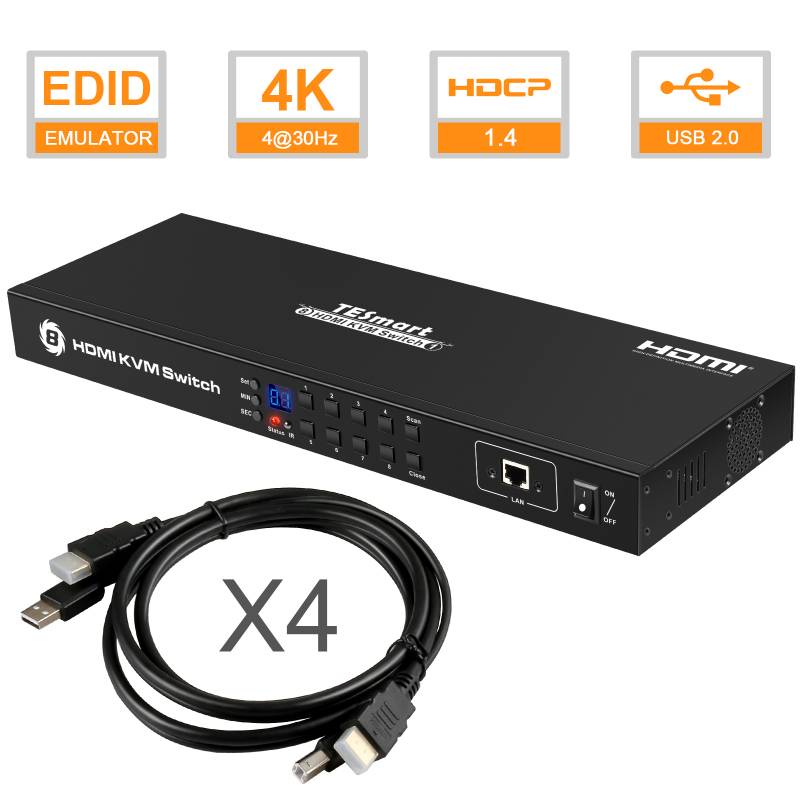

8x1 HDMI KVM Switch

#HKS0801A30

This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 8x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard.

With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.


0.00
0.00


#HKS0801A30

This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 8x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard.

With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.



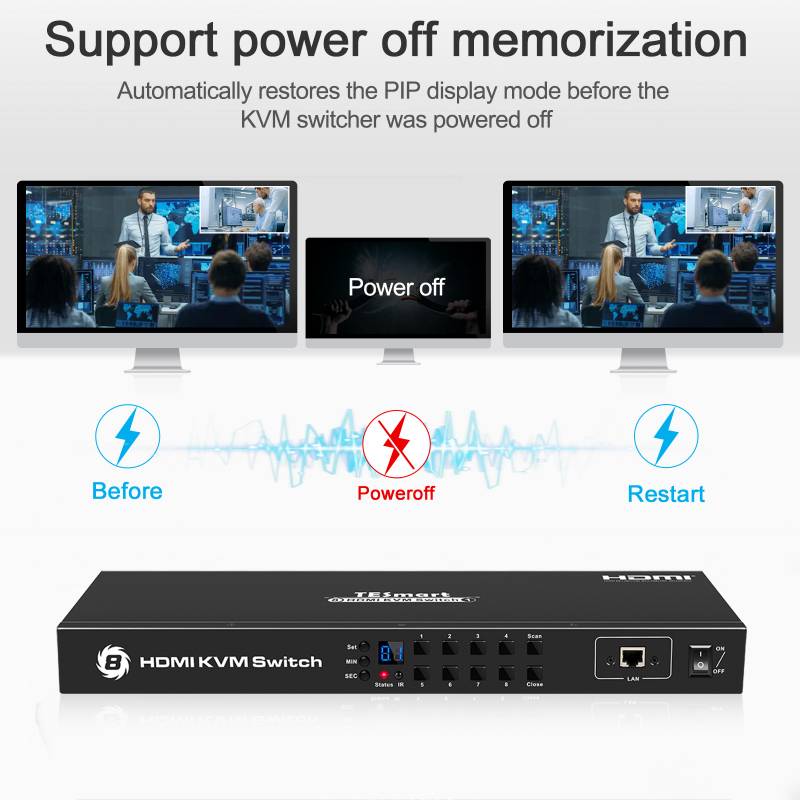

   Features

lUsing one USB console controls 8 HDMI computers

lSupport Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system

lWith EDID emulators in every input ports, keep PCs always have correct display information

l Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices

lSupport auto switching to monitor computers in a specified time interval

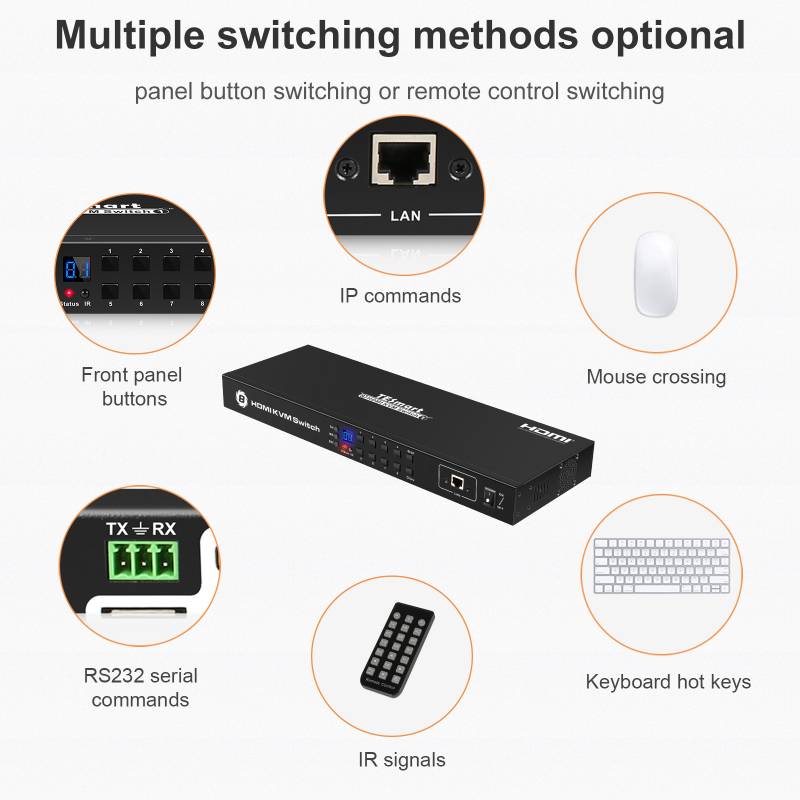

lSupport front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch

lAvailable to use keyboard without any delay after switch input sources

l Support resolution up to 3840*2160@30Hz

lWith extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer

lSupports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

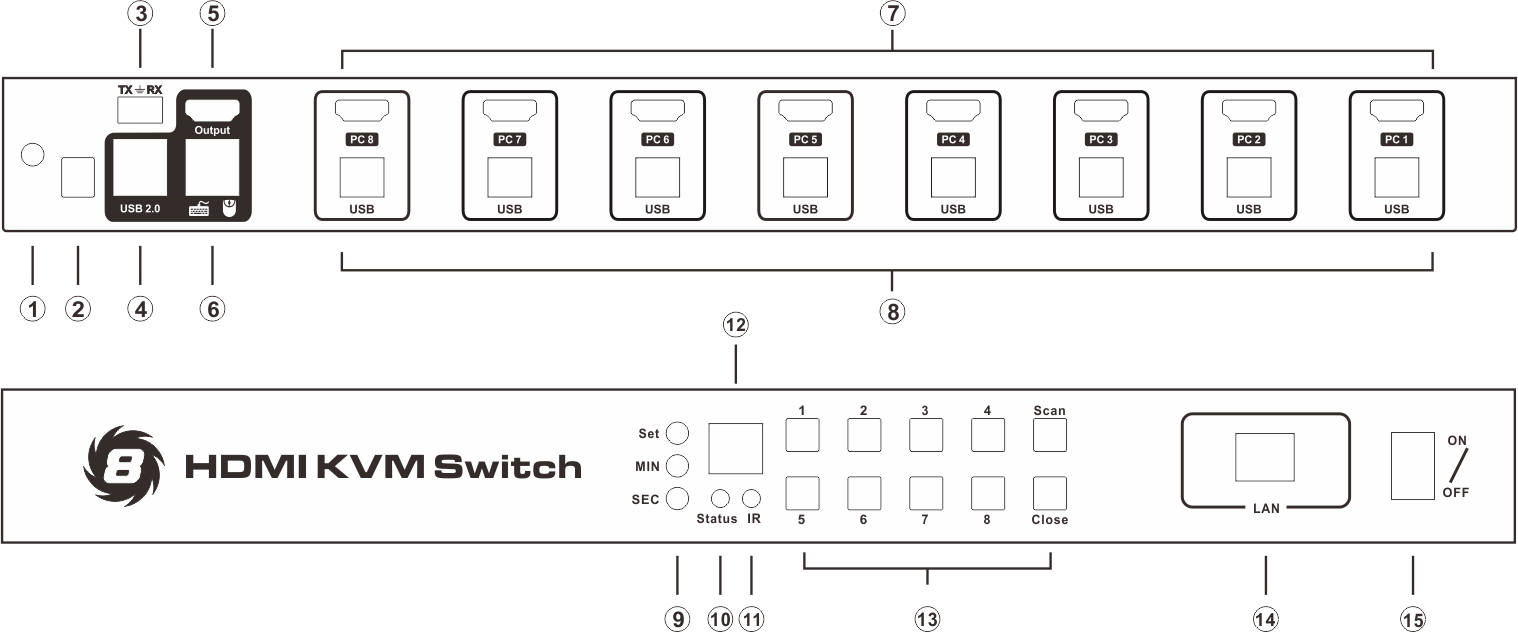

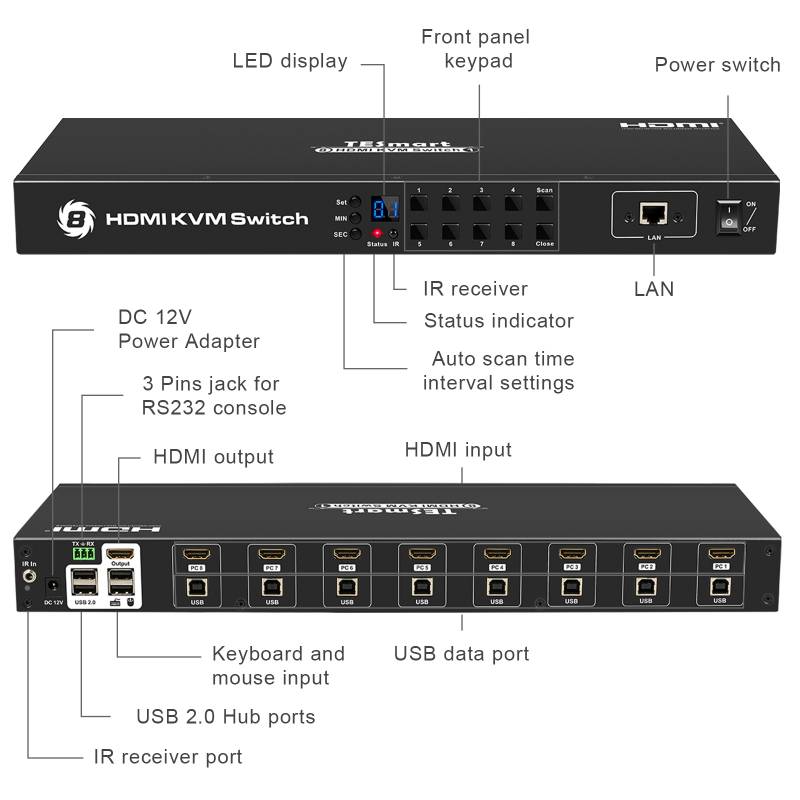

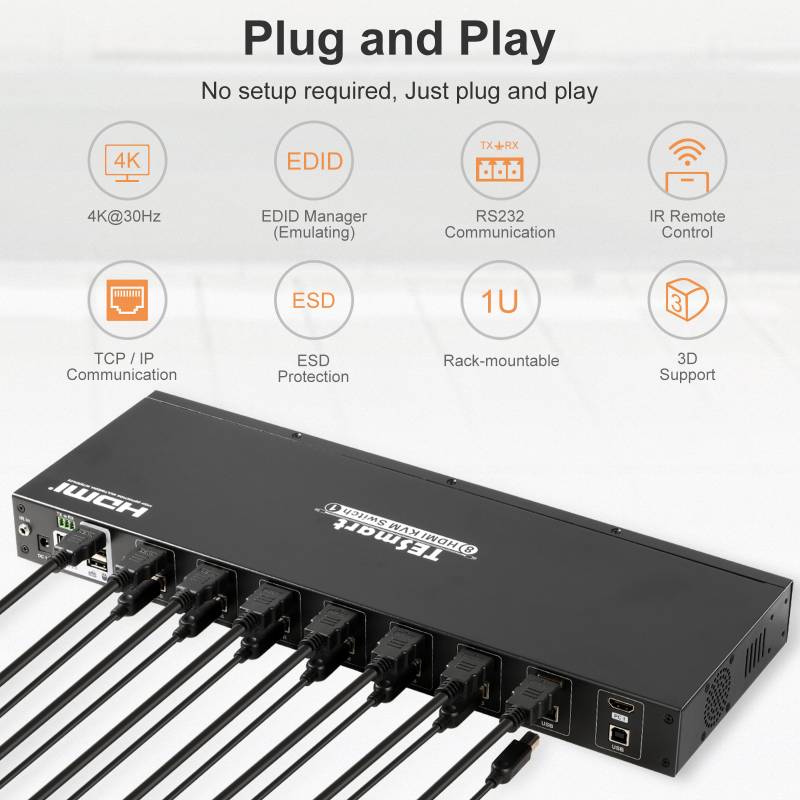

  Panel Description




1. IR receiver extension cable input

2. DC 12V Power Adapter

3. 3 Pins jack for RS232 console

4. USB 2.0 Hub ports

5. HDMI output port

6. Keyboard and mouse input

7. HDMI input ports

8. USB data (Connected to PCs)

9. Auto scan time interval settings

[MIN]: Press button [MIN] to loop between 0~59 minutes.

[SEC]: Press button [SEC] to loop between 0~59 seconds.

[Set]: After setting minutes and seconds by buttons [MIN] and [SEC], press button [Set] to enter final scan time interval setting.

10. Status indicator:

Green LED: Normal status

Red LED: Auto scanning mode

11. IR receiver

12. LED display: display current selected input source

13. Keypad:

[1~8]: Press these buttons to directly select input 1~8 sources.

[Close]: Press this button directly will turn on or turn off the display out

[Scan]: Press this button to start or stop automatically scan between input 1 to input 8. The interval time can be set by buttons [Set], [MIN], [SEC] as described above.

14. LAN: TCP/IP console interface

15. Power switch: Turn on or off the power.

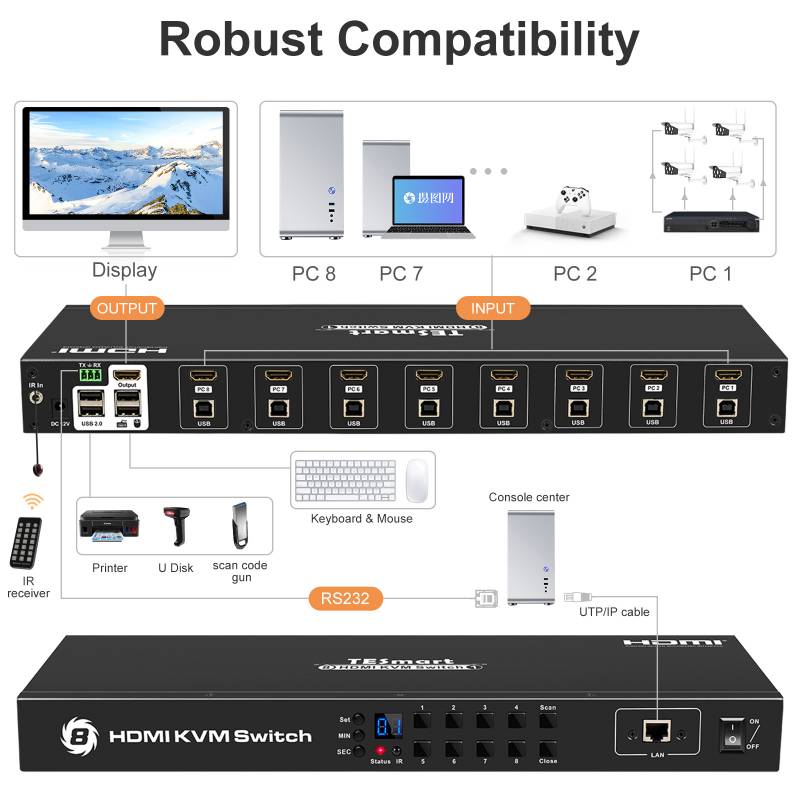

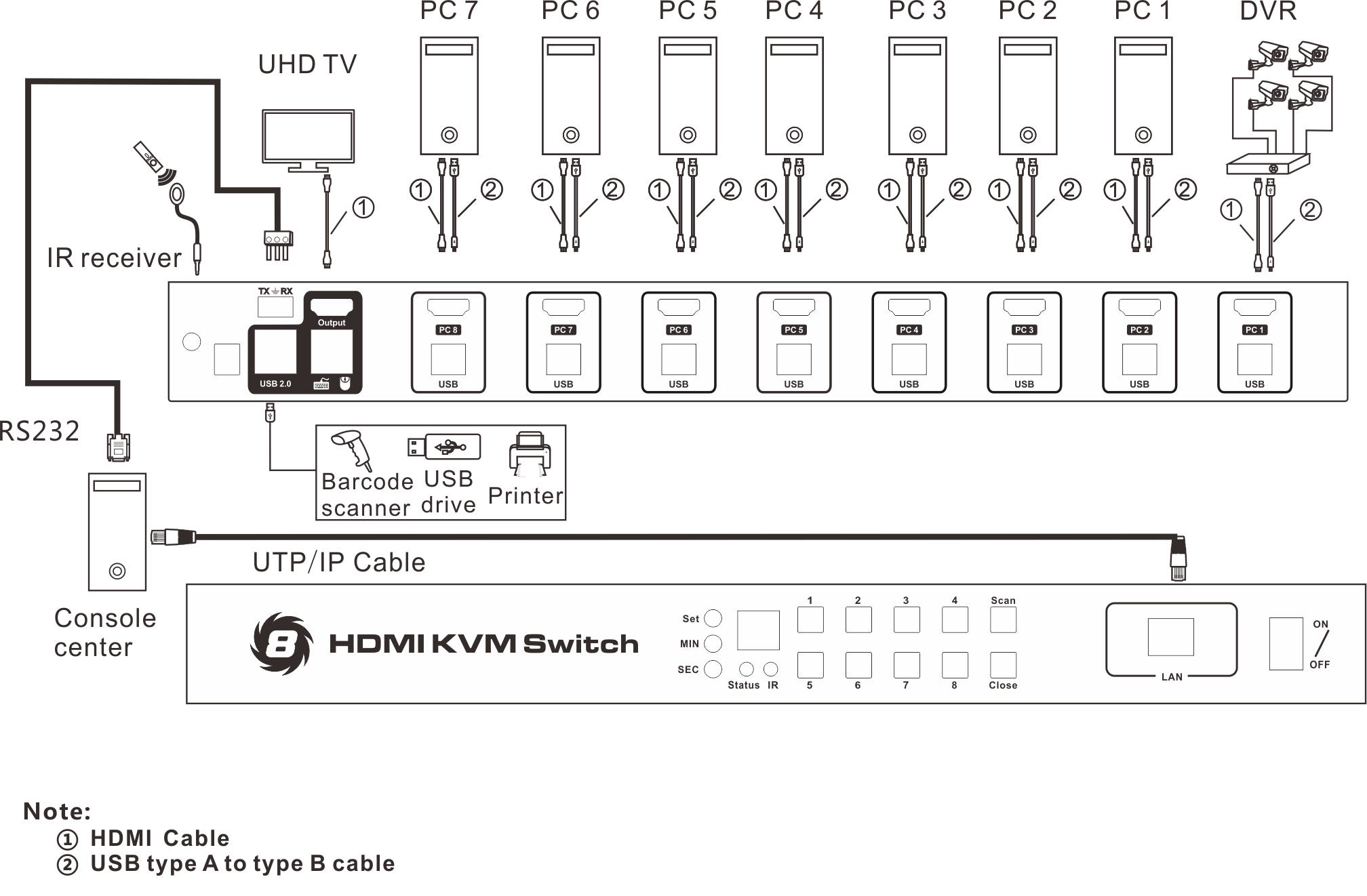

   Connection Diagram





   Specification

HKS0801A30

8x1 HDMI KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Console commands

RS232 / IP

Technical:

Max. Resolution

3840x2160@30Hz

Auto to get EDID

Yes

Data rate

10.2 Gbps

Auto scan interval

5~3600 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

2 * USB Type A

Video /Audio

1 * HDMI Type A

RS232

3 Pins jack

LAN (TCP/IP)

1 * RJ45

IR extension input

1 * AUX

System ports

USB Data

8 * USB Type B

Video / Audio

8 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Metal

Product Dimensions

440 (L) x 150 (W) x 44.5 (H) mm

Item Weight

1800g

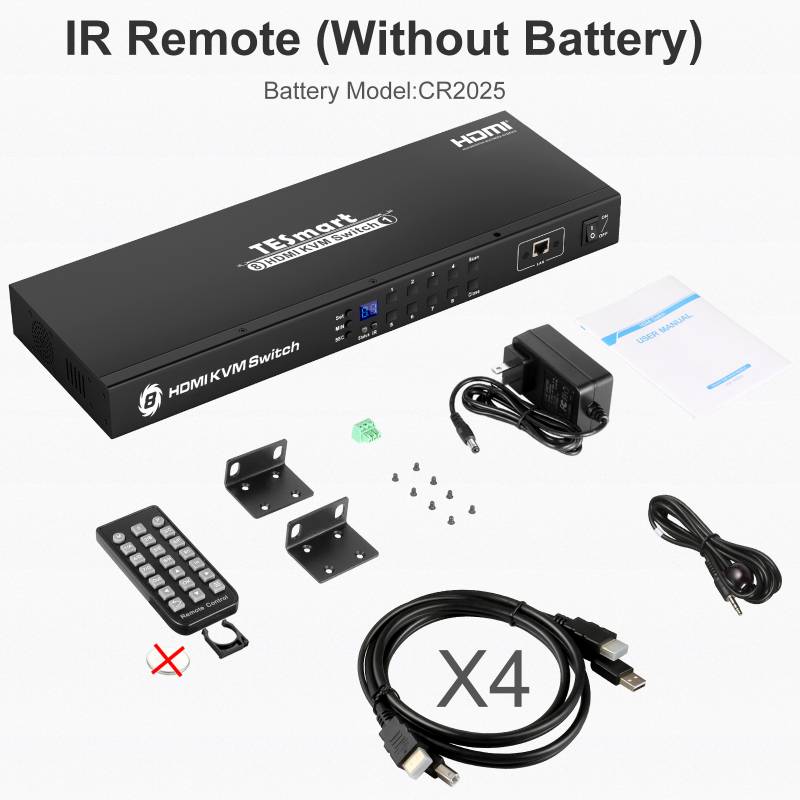

   Packing List


1 * 8x1 HDMI KVM Switch

1 * DC 12V 2A Power Adapter

1 * IR Remote Control

1 * IR Receiver Cable

1 * 3 Pins Connector(For RS232)

2 * Rack-ears

1 * Quick-Start Guide
