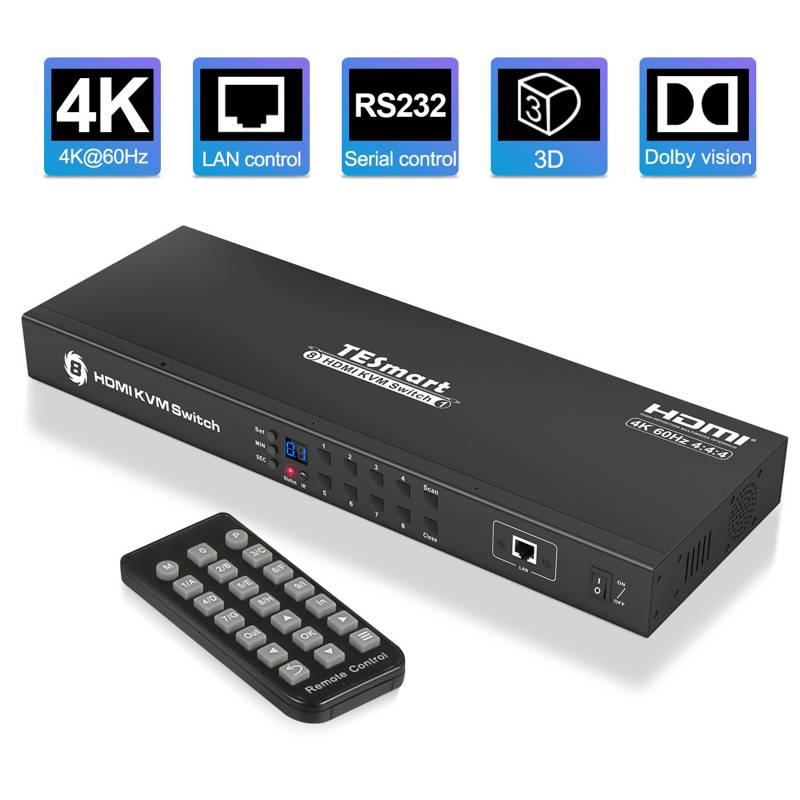

8x1 HDMI KVM Switch
This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.The 8x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching inputs.
This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.The 8x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching inputs.
| Download the specification |  |
Features
l Using only 1 set of keyboard, mouse and monitor to control 8 PCs
l Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
l With EDID emulators in each input port, keep PCs always having correct display information
l Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
l Support auto switching to monitor computers in a specified time interval
l Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch
l Available to use keyboard and mouse without any delay after switching input sources
l Support resolution up to 3840*2160@60Hz 4:4:4
l With extra standard USB 2.0 hub port, it is possible to connect barcode scanner, USB hard drive or other USB devices to KVM
l Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

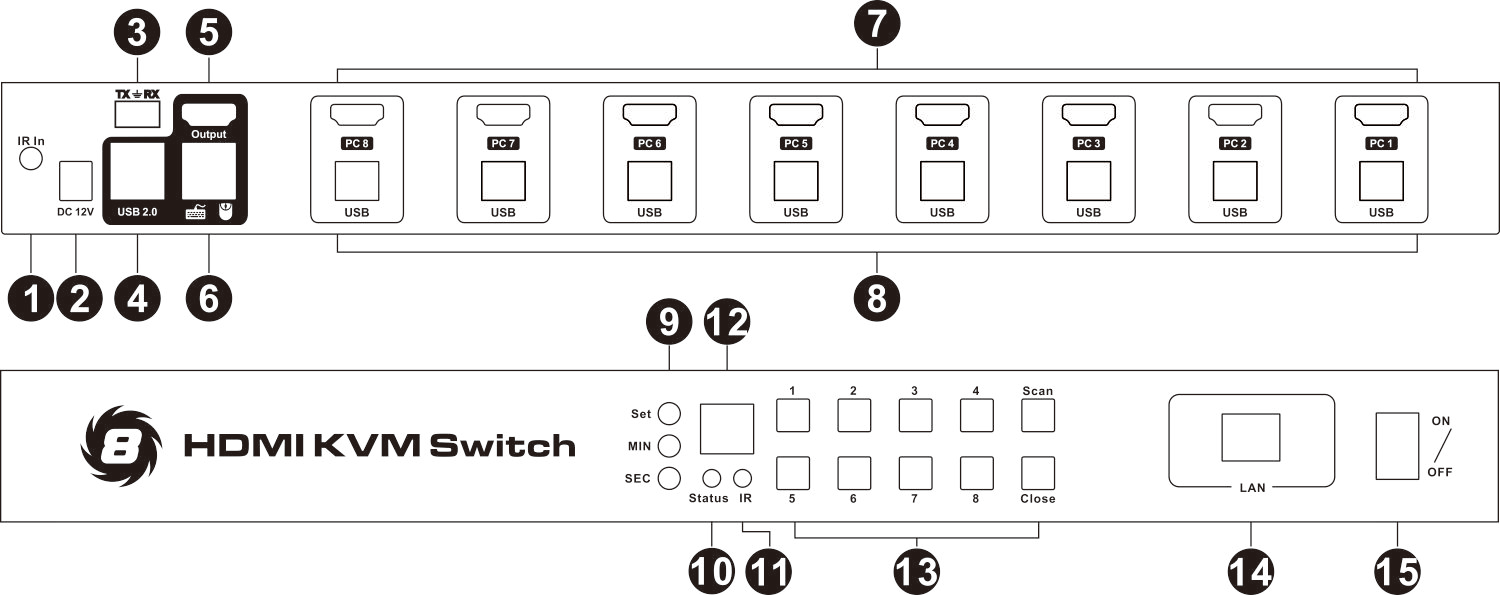

Panel Descriptions
ID | Name | Description |
1 | IR in | Connect IR receiver extension cable to this port, then it is able to use IR control even if the KVM switch is installed in a rack |
2 | DC 12V | 12V DC power supply |
3 | RS 232 | Connect this port to any control termination, then it is able to select the input sources by sending RS232 commands |
4 | USB2.0 port | For USB2.0 devices, for example printers, USB hard disk, barcode scanner, touch pad,etc |
5 | HDMI output | Connect to HDMI display |
6 | Keyboard and mouse input | For USB keyboard and mouse input, including wireless keyboard and mouse |
7 | HDMI input | Connect to HDMI sources |
8 | USB data | Connect to computer by USB Type A to Type B cable |
9 | Auto scan time interval settings | [MIN]: Press [MIN] to loop between 0~59 minutes [SEC]: Press [SEC] to loop between 0~59 seconds [Set]: After setting minutes and seconds, press button [Set] to enter final scan time interval setting |
10 | Status LED | Red: Turn off auto scanning mode Green: Turn on auto scanning mode |
11 | IR receiver | Receive IR signal |
12 | LED display | Display current selected input port |
13 | Keypad | [1~8]: Press these buttons to directly select input 1~8 sources [Scan]: Press this button to start or stop automatically scan between input 1 to input 8. The interval time can be set by buttons [Set], [MIN], [SEC] as described above |
14 | LAN port | By connecting to the LAN through this port, you can use the terminal device in the same LAN to send TCP/IP commands to control the switching of input port |
15 | Power switch | Turn on or off power supply |

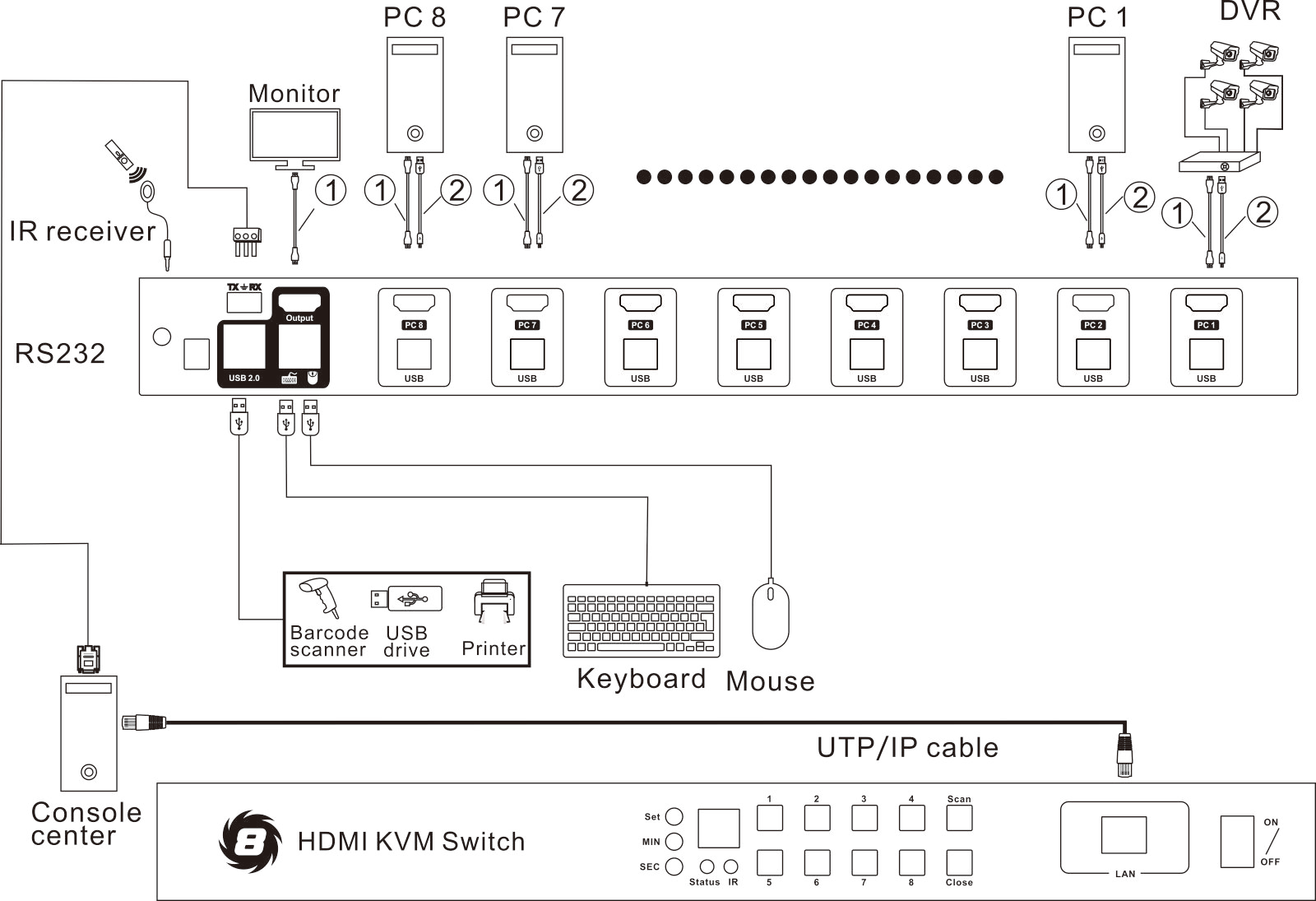

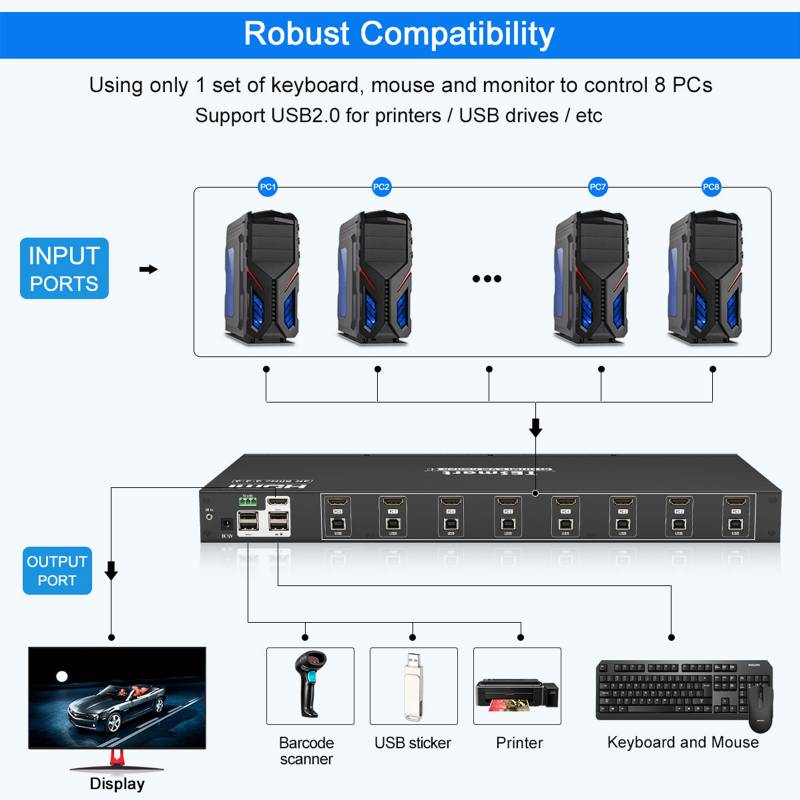

Connection Diagram
Specification
HKS0801A1U | 8x1 HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Console commands | RS232 / IP | |
Technical: | ||
Max. Resolution | 3840x2160@60Hz | |
Auto to get EDID | Yes | |
Data rate | 18 Gbps | |
Auto scan interval | 5~3600 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |
Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 2 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | 3 Pins jack | |
LAN (TCP/IP) | 1 * RJ45 | |
IR extension input | 1 * AUX | |
System ports | USB Data | 8 * USB Type B |
Video / Audio | 8 * HDMI Type A | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |
Mechanical: | ||
Chasing material | Metal | |
Product
| Dimension | 440 (L) x 150 (W) x 44.5 (H) mm |
Weight | 1936g | |
Item
| Dimension | 488 (L) x 123 (W) x 186 (H) mm |
Weight | 3027g | |
Carton
| Dimension | 505 (L) x 280 (W) x 395 (H) mm |
Quantity | 4pcs | |
Total Weight | 12.858kg | |
Packing list
1 * 8x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
