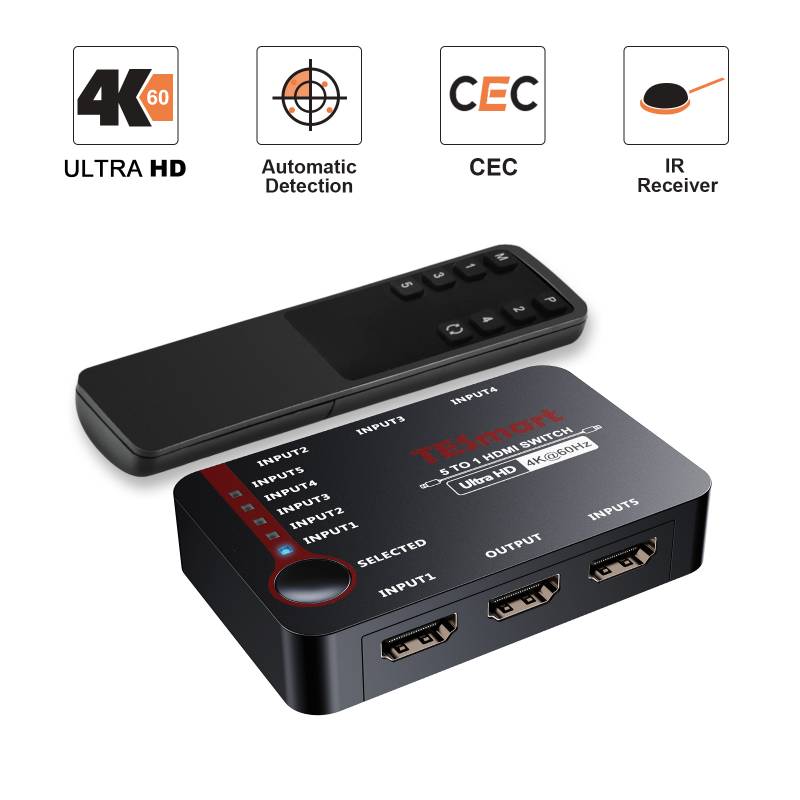

The 5 ports HDMI switch HSW0501A1U, allows up to five Ultra HD sources to be routed to one Ultra HD display. Support resolutions up to 4K@60Hz 4:4:4. Two switching modes are available for you to choose, auto mode and manual mode. Support automatic input source detection, when attach new input device to the switch, the switch will switch to last plugged in source automatically.

With EDID emulators in each input port, keep PCs always have correct display information, prevent display settings from changing while switching input ports.


0.00
0.00


#HSW0501A1U

The 5 ports HDMI switch HSW0501A1U, allows up to five Ultra HD sources to be routed to one Ultra HD display. Support resolutions up to 4K@60Hz 4:4:4. Two switching modes are available for you to choose, auto mode and manual mode. Support automatic input source detection, when attach new input device to the switch, the switch will switch to last plugged in source automatically.

With EDID emulators in each input port, keep PCs always have correct display information, prevent display settings from changing while switching input ports.


Download the specification


Features

l  With 5 HDMI inputs and 1 HDMI output

l  Support resolution up to 4K@60Hz 4:4:4

l Support two switching mode: auto mode and manual mode

l Compliant with HDCP 2.2

l  Auto input detect and switch

l Easy to switch input source with infrared remote control

l  Support HDR 10 and Dolby Vision

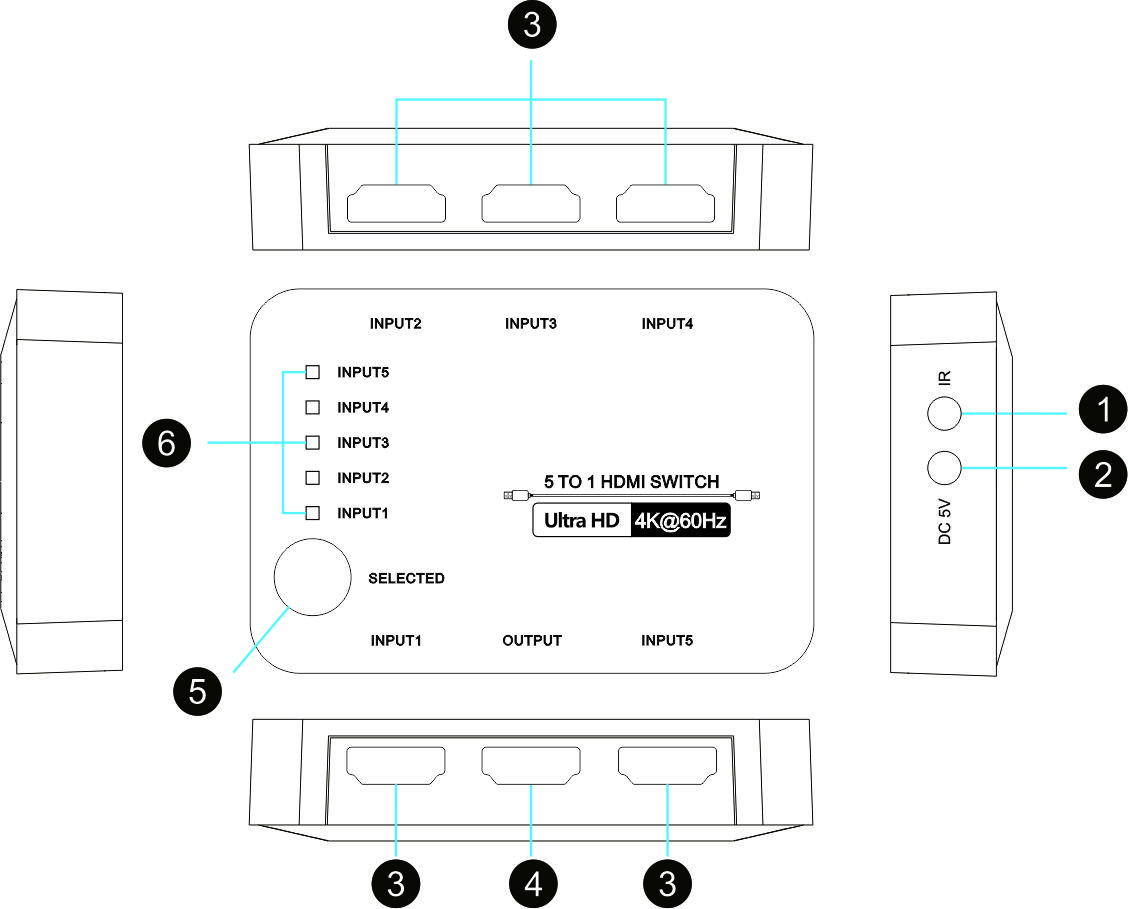

Panel Descriptions





ID

Name

Description

1

IR receiver

Receive IR remote signal

2

DC 5V

DV 5V power supply

3

HDMI input

Connect to HDMI source devices

4

HDMI output

Connect to HD display

5

Input selection button

Select input source

6

Input selection status

Indicate current active selected input source

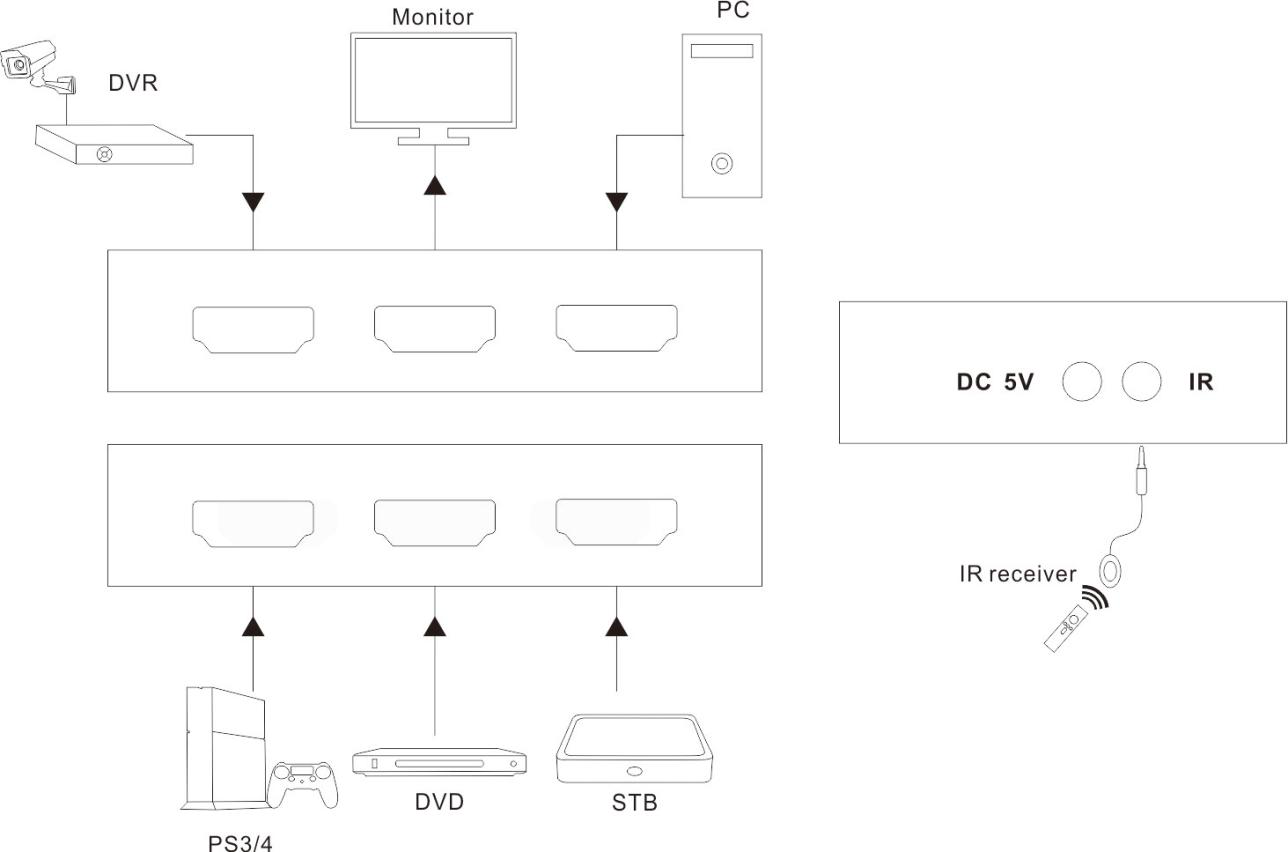

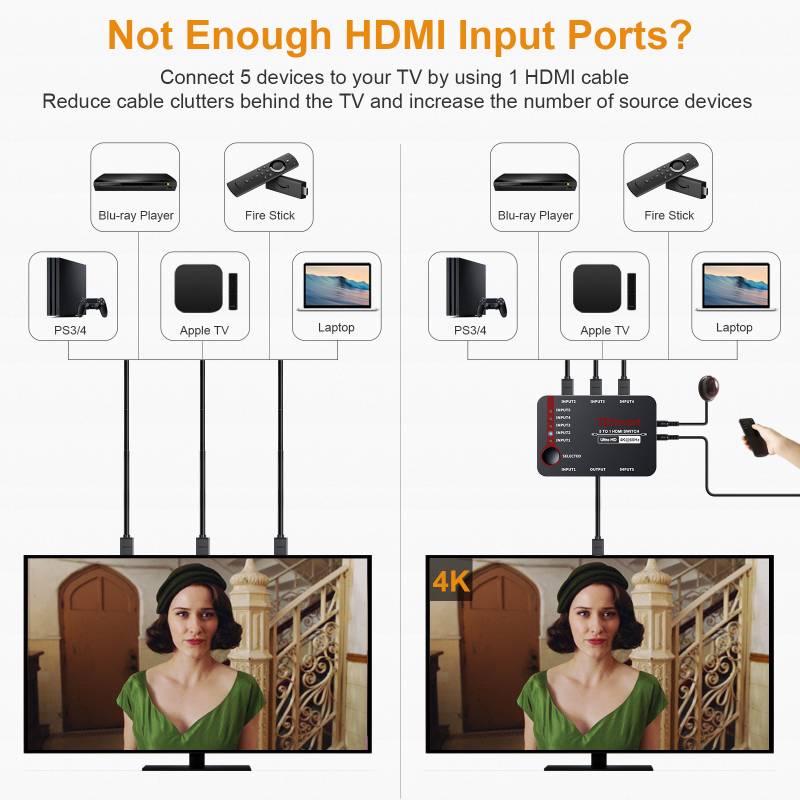

Connection Diagram




Specification


HSW0501A1U

5x1 HDMI Switch 4K@60Hz 4:4:4

Technical

HDCP compliance

2.2

Data rate

18 Gbps

Max. resolution

3840x2160@60Hz 4:4:4

Audio support

Surround sound(up to 7.1ch) or stereo digital audio

ESD protection

Human body model - ±8KV (Air-gap discharge)

Input

5* HDMI Type A, IR receiver x 1

Output

1* HDMI Type A

Mechanical

Chasing material

Plastics

Power supply

DC 5V 1A or powered by HDMI

Operating/storage temperature

0 to 70 degree/-40 to 85 degree

Operating humidity

10 to 90% RH

Product

Dimension

88(L) x 60 (W) x 19 (H) mm

Weight

60g

Item

Dimension

157 (L) x 90 (W) x 76 (H) mm

Weight

226g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

48pcs

Total Weight

11.698kg



Packing list

1 * 5 ports HDMI Switch

1 * IR Remote Control

1 * IR receiver cable

1 * DC 5V Power adapter

1 * User Manual
