4x4 HDMI Seamless Matrix w/Video wall

#HMA0404A70

The 4 x 4 HDMI Matrix Switch can route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD. The matrix supports multiple control methods, front-panel pushbuttons, IR, RS232 and TCP/IP.

It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no blank video delay. And supports 2X2 video wall mode, provide you an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations.

0.00
0.00


#HMA0404A70

The 4 x 4 HDMI Matrix Switch can route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD. The matrix supports multiple control methods, front-panel pushbuttons, IR, RS232 and TCP/IP.

It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no blank video delay. And supports 2X2 video wall mode, provide you an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations.

Features

l  Compliant with HDCP 1.4

l  Supports resolution up to 3840x2160@30Hz

l  Connects any of 4 HDMI sources to any of 4 HDMI displays

l  No latency, support seamless switching

l  Support 2X2 video wall mode

l  Smart EDID management, make it compatible with most display devices

l  Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

l  Easy to control matrix via IR remote control, front keypad and PC(via RS232 port or LAN port)

l  Easy to view real time inputs and outputs status via LED display

l  Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

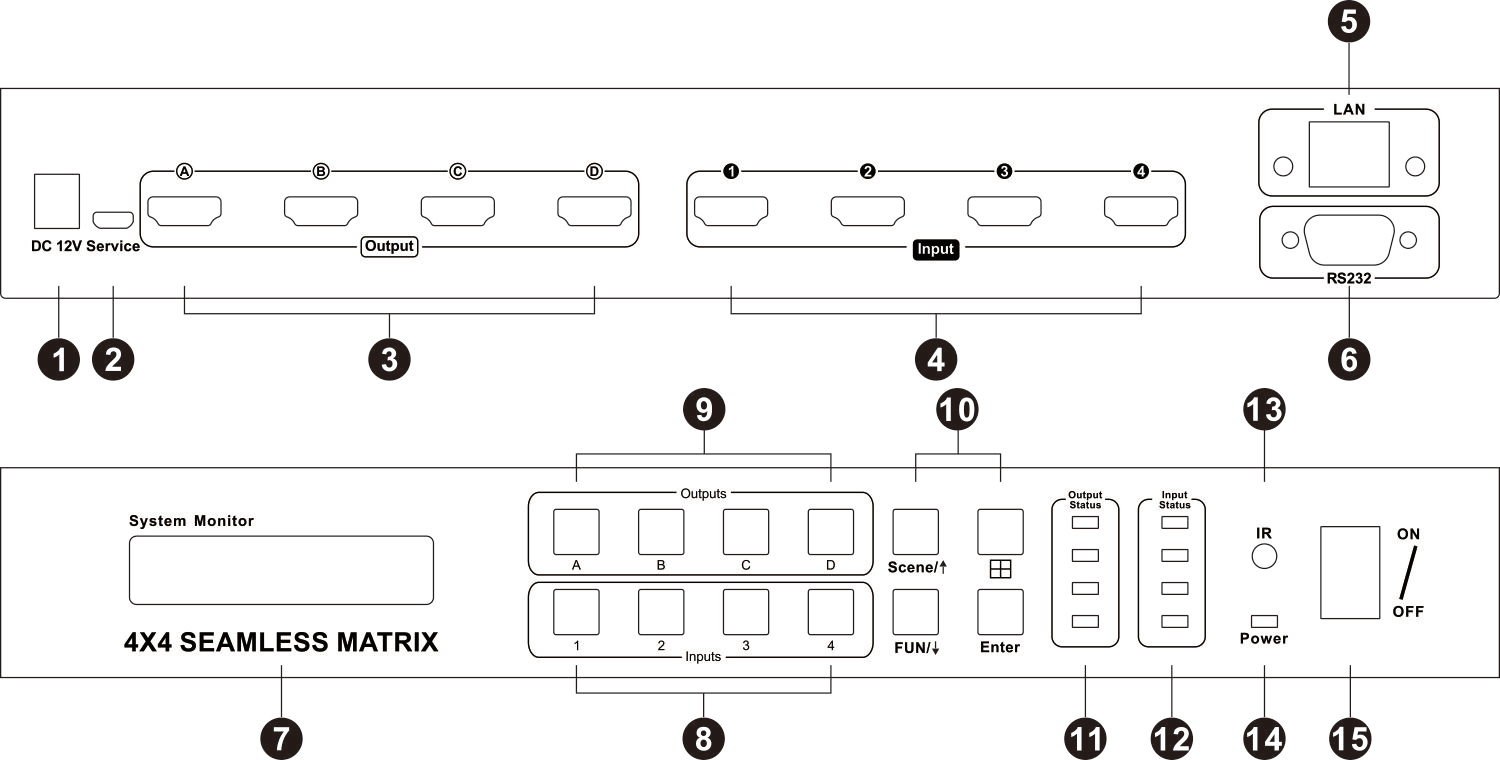

Panel description

                                                        1. DC 12V                             2. USB port for system upgrade

                                                        3. HDMI output                       4. HDMI input

                                                        5. LAN port                            6. RS232 console port

                                                        7. 16X2 LCD display                8. Input selection button

                                                        9. Output selection button         10. Function keys

                                                        11. Output status                    12. Power status

                                                        13. Power status                    14. IR receiver

                                                        15. Power switch

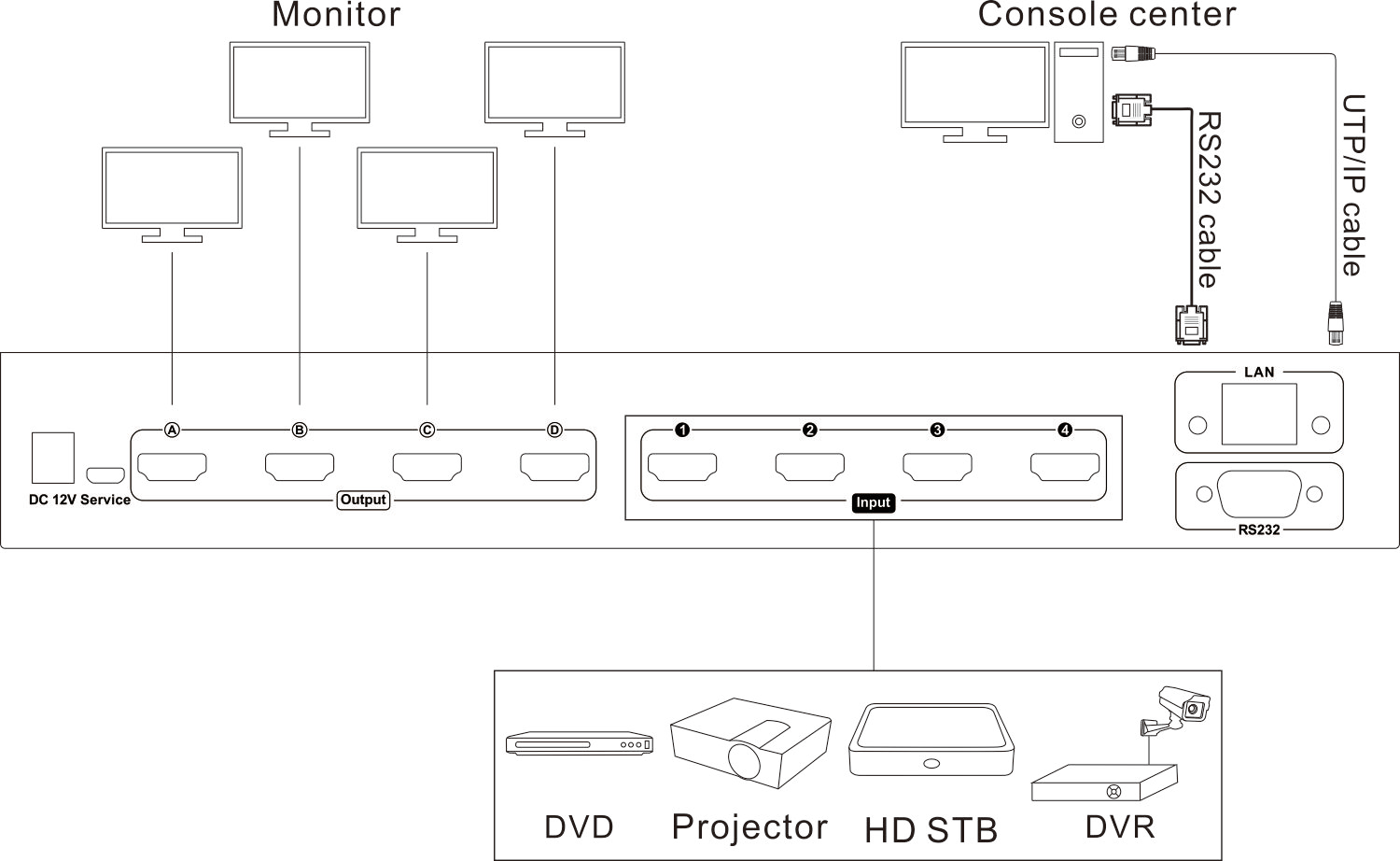

Connection diagram



Specification



HMA0404A70

4x4 HDMI Seamless Matrix

Functionality

Port selection

Front panel buttons

Yes

Console commands

RS232/TCP/IP

IR remote control

Yes

OSD

No

Smart EDID

Yes

Technical

Resolution

Up to 3840x2160@30Hz

HDCP version

1.4

Data rate

10.2 Gbps

Input

4*HDMI Type A, 24/26 AWG HDMI cable up to 8M

Output

4*HDMI Type A, 24/26 AWG HDMI cable up to 10M

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical

Chasing material

Metal

Product Dimensions

440(L) x 139 (W) x 44.5 (H) mm

Item Weight

1100 g

Power supply

DC 12V 2A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH



Pack
ing List

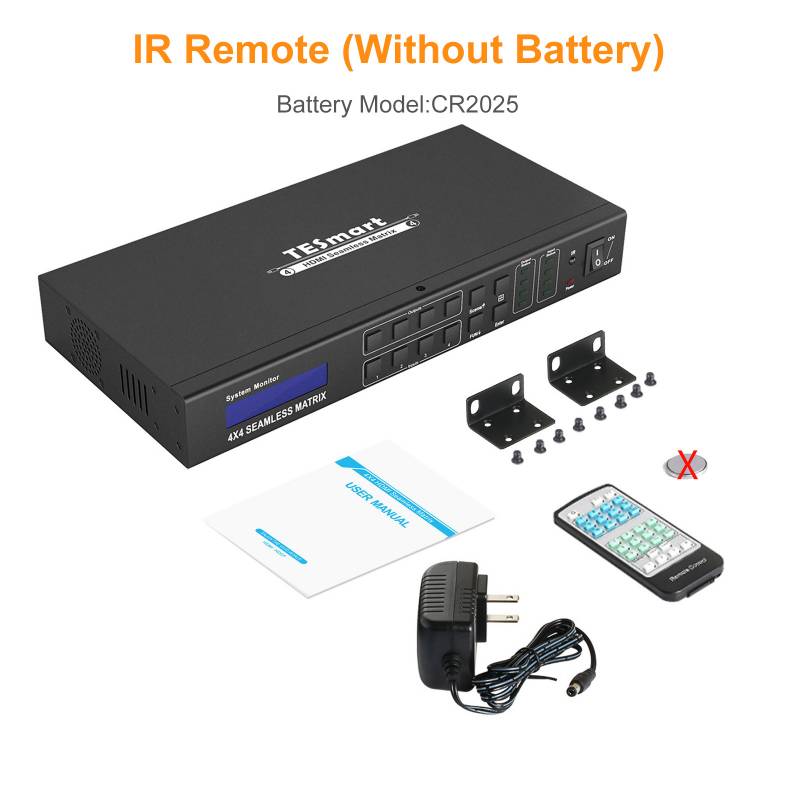

1 * 4x4 HDMI Matrix

1 * Remote control

1 * DC 12V Power Adapter

1 * User manual
