#HMA0404A1U
This 4x4 HDMI matrix routes 4 Ultra HD sources to 4 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display using front-panel buttons or IR Remote Control. The matrix can also be controlled via RS232 or LAN port. With smart EDID management, make it compatible with most of the HDMI source and sink devices.
#HMA0404A1U
This 4x4 HDMI matrix routes 4 Ultra HD sources to 4 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display using front-panel buttons or IR Remote Control. The matrix can also be controlled via RS232 or LAN port. With smart EDID management, make it compatible with most of the HDMI source and sink devices.
Features
l Resolution up to 3840*2160@60Hz
l Each HDMI output can share same input or select standalone input
l Support PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio formats
l Smart EDID management, make it compatible with most display devices

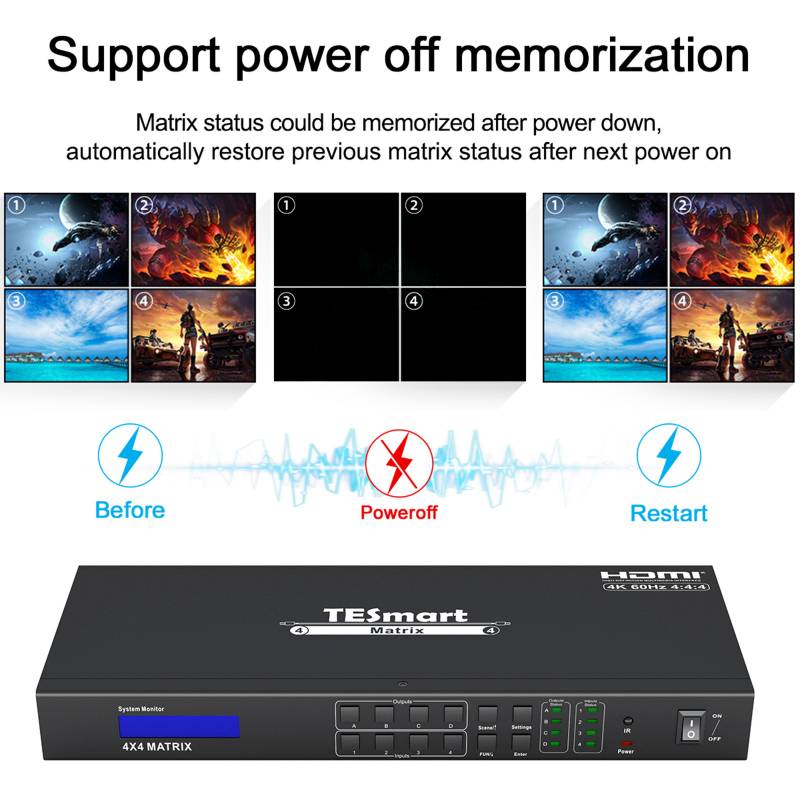

l Matrix status could be memorized after power down, automatically restoreprevious matrix status after next power on
l Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
l Easy to view connection status via LCD display
l Support 4 configurable user preset connections

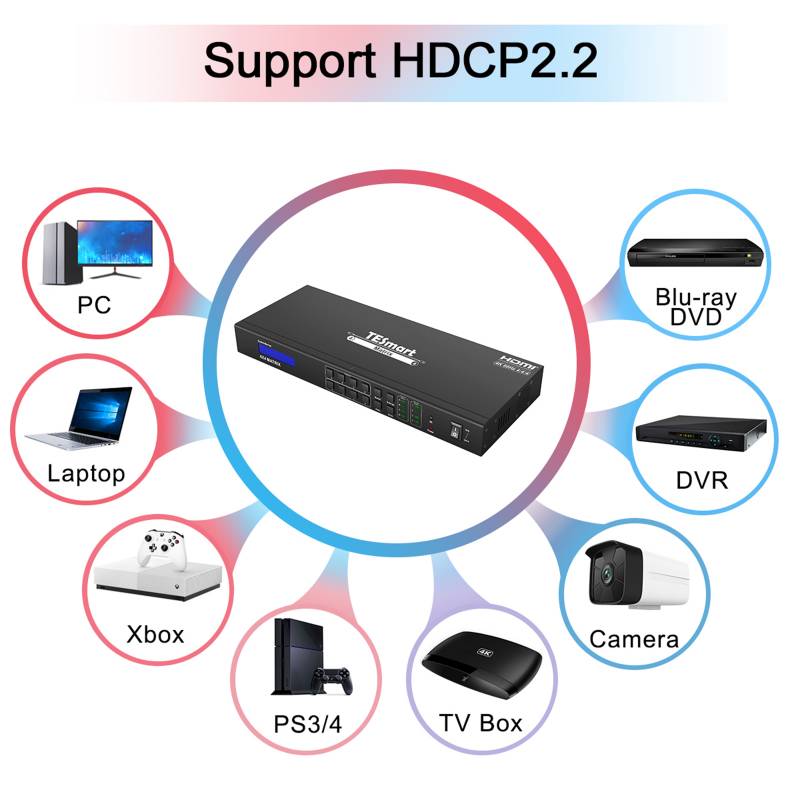

l HDCP 2.2 compliant
l Support HDR and Dolby Vision
l Support L/R audio output

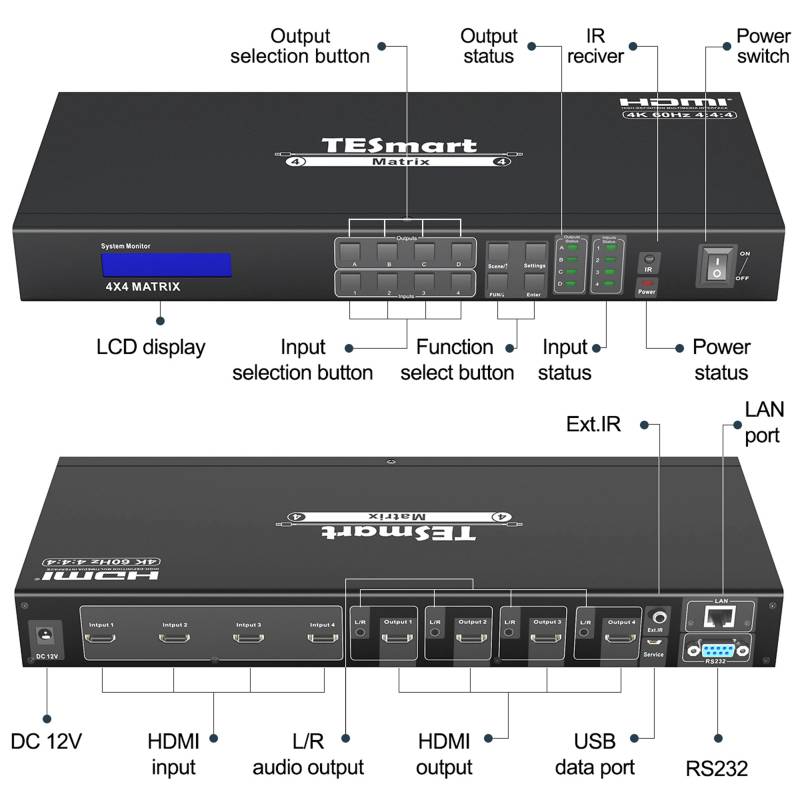

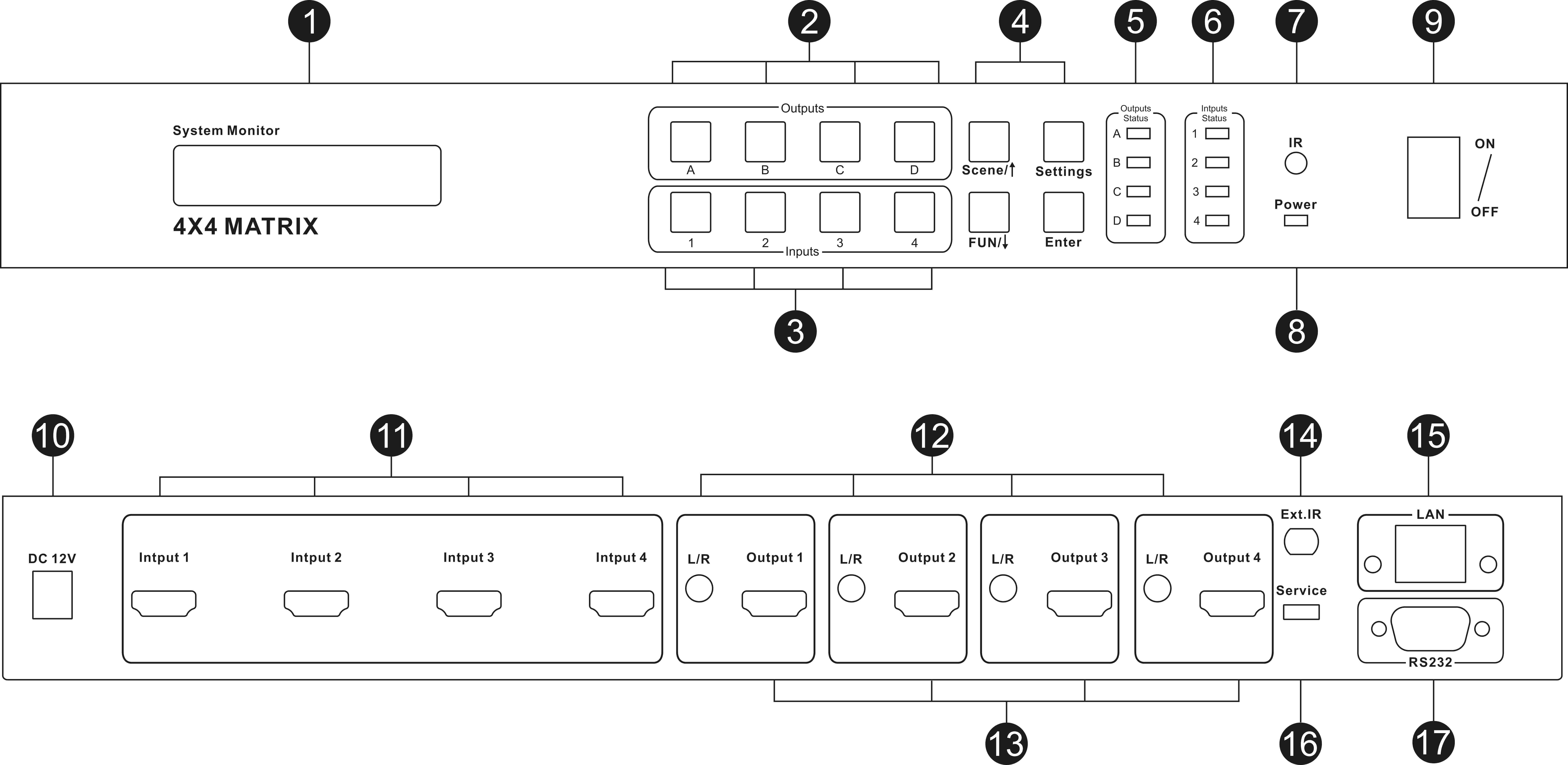

Panel Description
ID | Name | Description |
1 | LCD display | Display current routing status and system setting |
2 | Output selection button | Select output to control |
3 | Input selection button | Select input port |
4 | Function select button | Scene/↑:Save current routing as user preset and restore user’s preset Fun/↓:Setting N to N mirrored routing and N to all routing and N to all routing Settings:Change LED time and buzzer status Enter:Enter user’s setting |
5 | Output status | LED indicator of output connection status |
6 | Input status | LED indicator of input connection status |
7 | IR reciver | Receive IR signal |
8 | Power status | LED indicator of power supply |
9 | Power switch | Power on or off the matrix |
10 | DC 12V | 12V DC power supply |
11 | HDMI input | Connect to HDMI source device |
12 | L/R audio output | Connect to speaker |
13 | HDMI output | Connect to HDMI display |
14 | Ext.IR | For extended IR receiver cable input |
15 | LAN port | Connect to local area network, control matrix by TCP/IP commands |
16 | Service data port | Connect to USB port of PC for system upgrade |
17 | RS232 | Connect to RS232 connector for serial control |

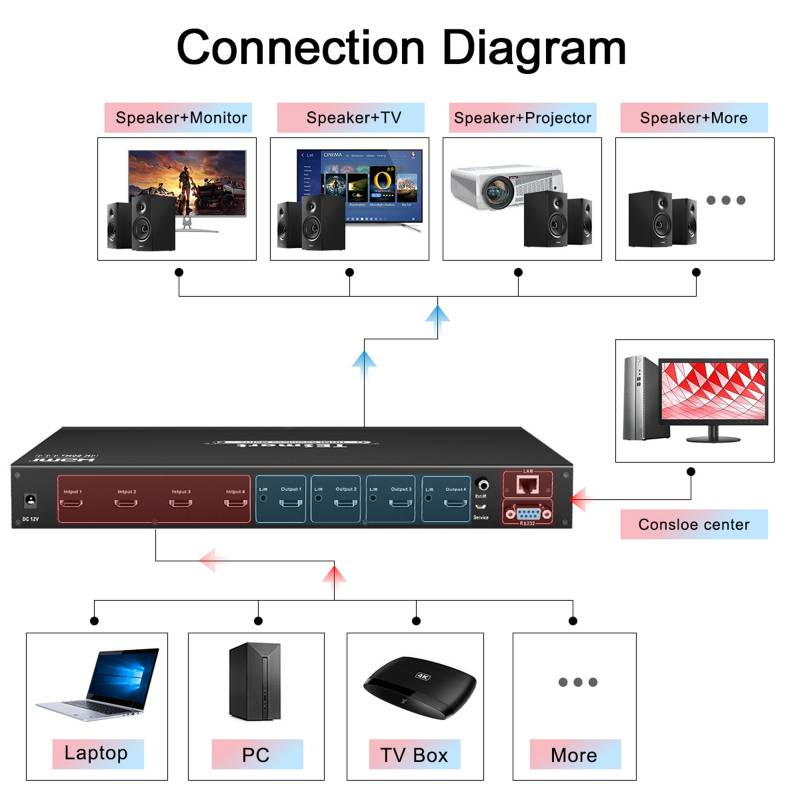

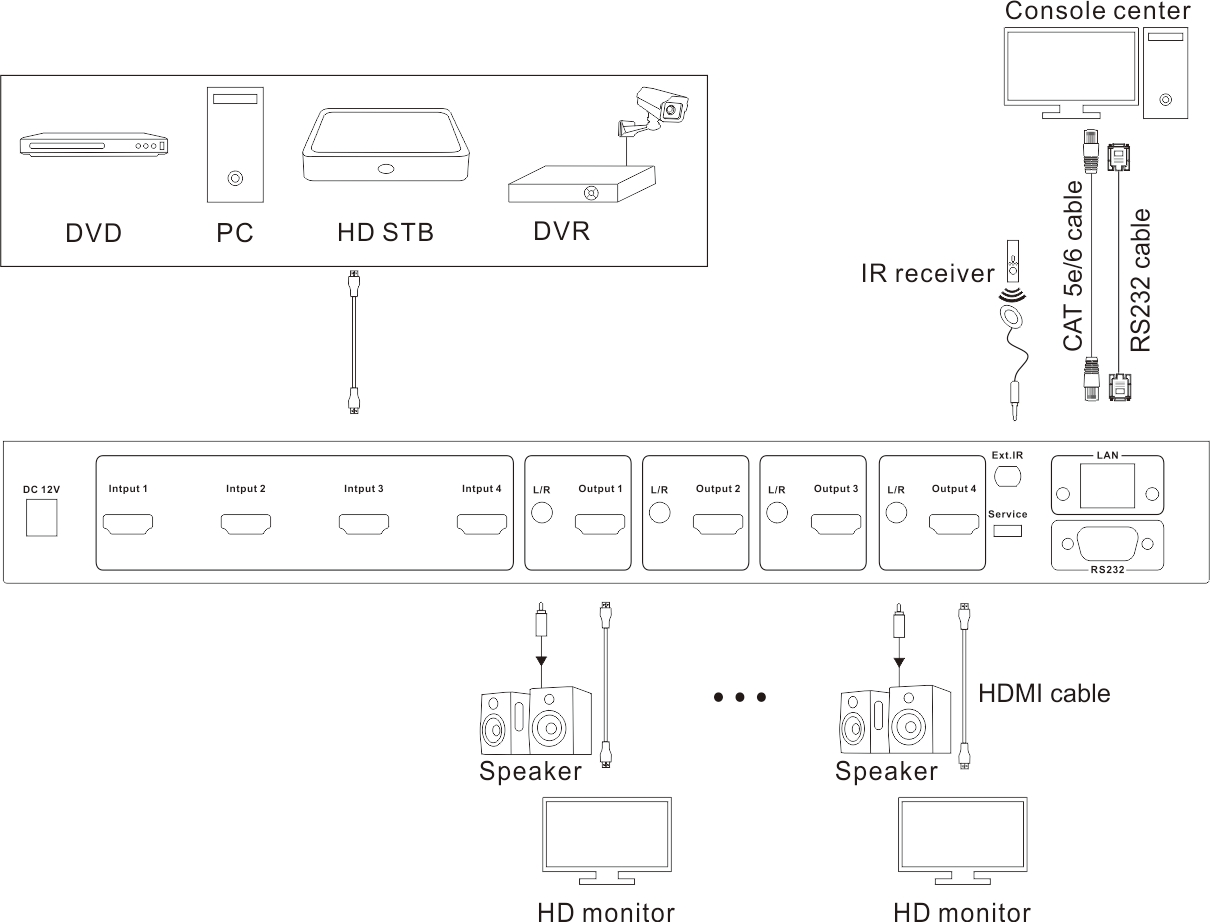

Connection Diagram
Specification
HMA0404A1U | 4x4 HDMI Matrix | ||
Functionality | |||
Port selection | Front panel buttons | Yes | |
Console commands | RS232 / IP | ||
IR remote control | Yes | ||
LCD Display | 16x2 characters | ||
OSD | No | ||
Smart EDID | Yes | ||
Technical | |||
Max. Resolution | 3840x2160@60Hz | ||
HDCP | 2.2 | ||
Data rate | 18 Gbps | ||
Input | 4*HDMI Type A | ||
Output | 4*HDMI Type A | ||
ESD protection | Human body model - ±8kV (Air-gap discharge) | ||
Mechanical | |||
Chasing material | Metal | ||
Power supply | DC 12V 2A | ||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | ||
Operating Humidity | 10 to 90% RH | ||
Product
| Dimension | 378(L) x 190 (W) x 44.5 (H) mm | |
Weight | 1903g | ||
Item
| Dimension | 476 (L) x 90 (W) x 232 (H) mm | |
Weight | 2541g | ||
Carton
| Dimension | 515 (L) x 285 (W) x 470 (H) mm | |
Quantity | 5pcs | ||
Total Weight | 13.555kg |

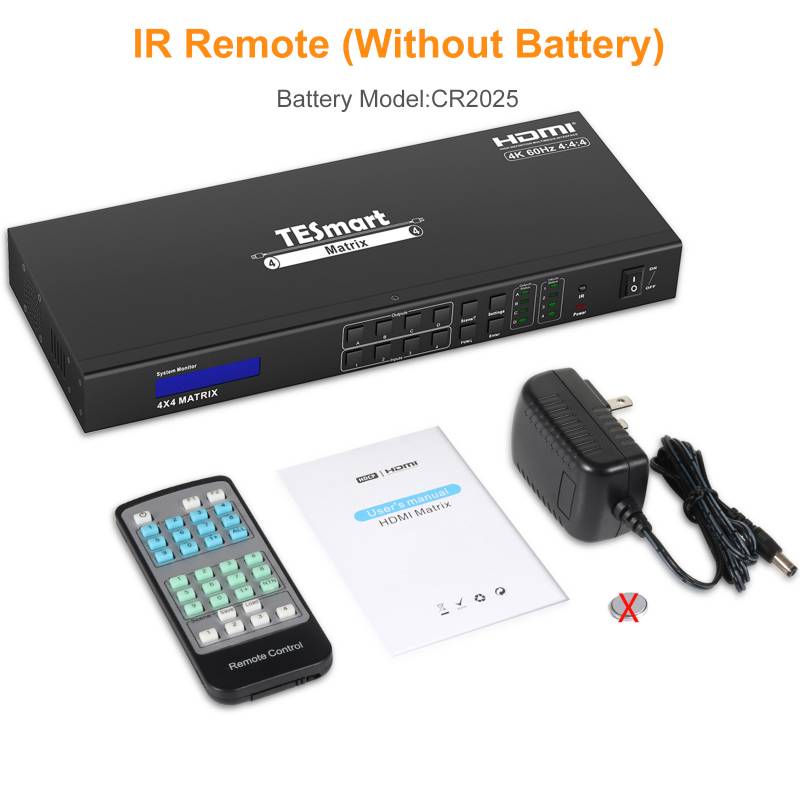

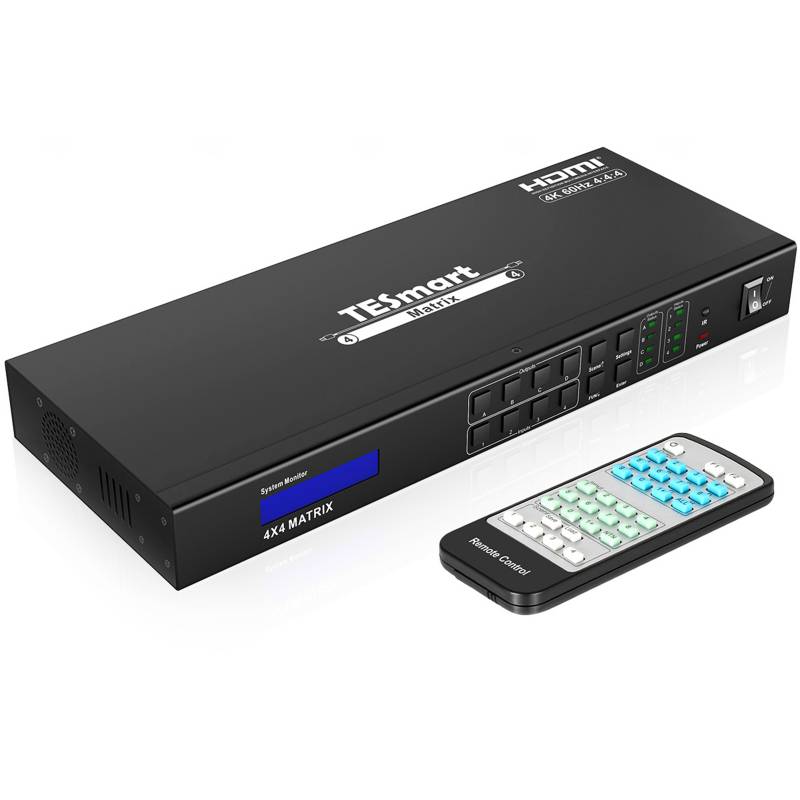

Packing List
1 * 4x4 HDMI Matrix
1 * Remote control
1 * IR Receiver cable
2 * Rack-ears
1 * DC 12V Power Adapter
1 * User manual
