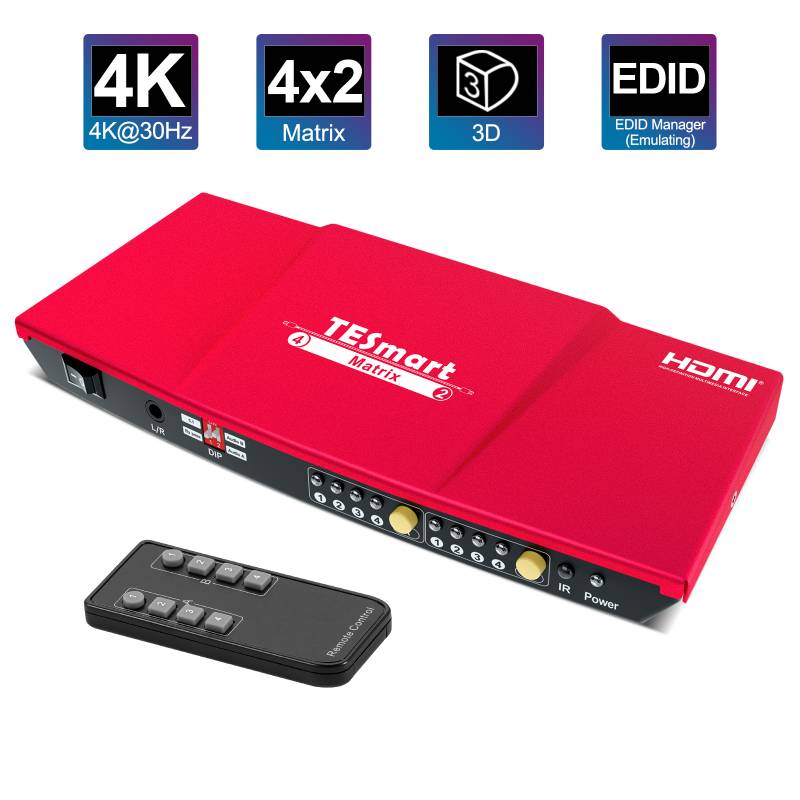

4x2 HDMI Matrix Switch

4x2 HDMI Matrix Switch

#HMA0402A40

This 4x2 HDMI matrix routes four Ultra HD sources to two 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. With smart EDID management, make it compatible with most of the HDMI source and sink devices.

0.00
0.00


#HMA0402A40

This 4x2 HDMI matrix routes four Ultra HD sources to two 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. With smart EDID management, make it compatible with most of the HDMI source and sink devices.


  Features


Compliant with HDCP 1.4
Max. resolution up to 3840*2160@30Hz
Support up to 36 bit/pixel color depth
Easy to control matrix via IR receiver and front-panel buttons

Support 5.1/Bypass modes of audio output
Support audio output via optical and AUX L/R audio interfaces

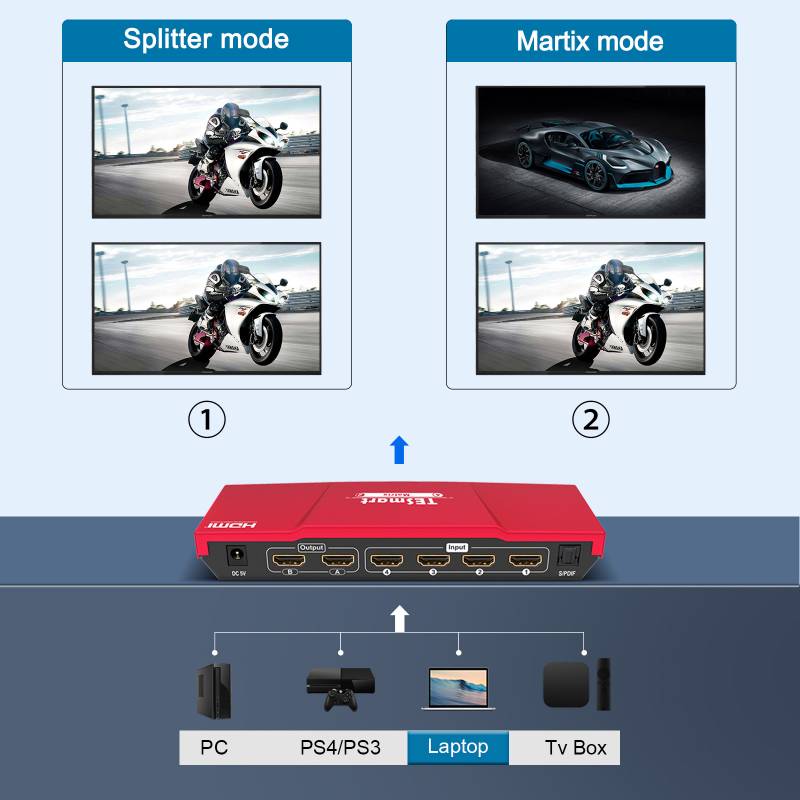

Each HDMI output can share same input or select standalone input

Support HDMI cable length up to 10 meters

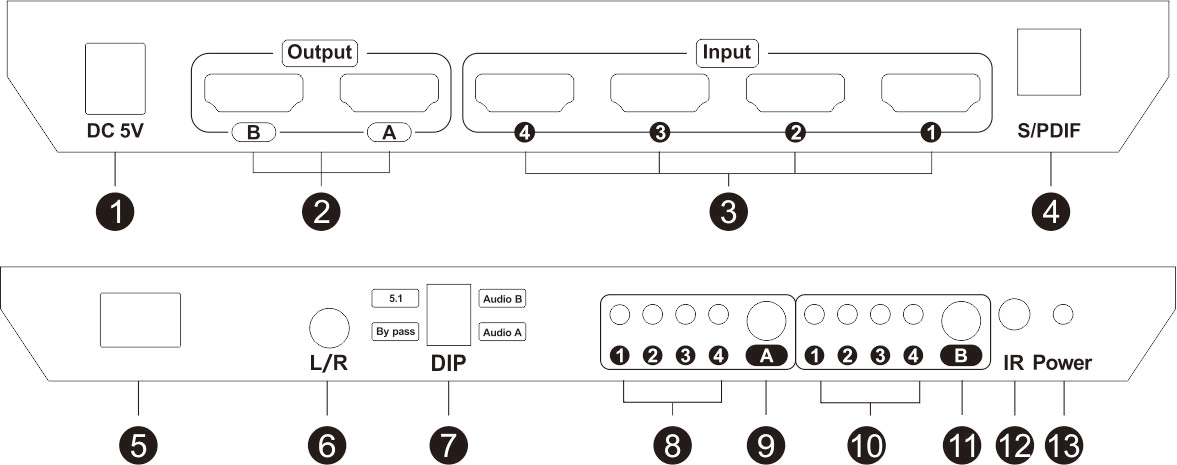

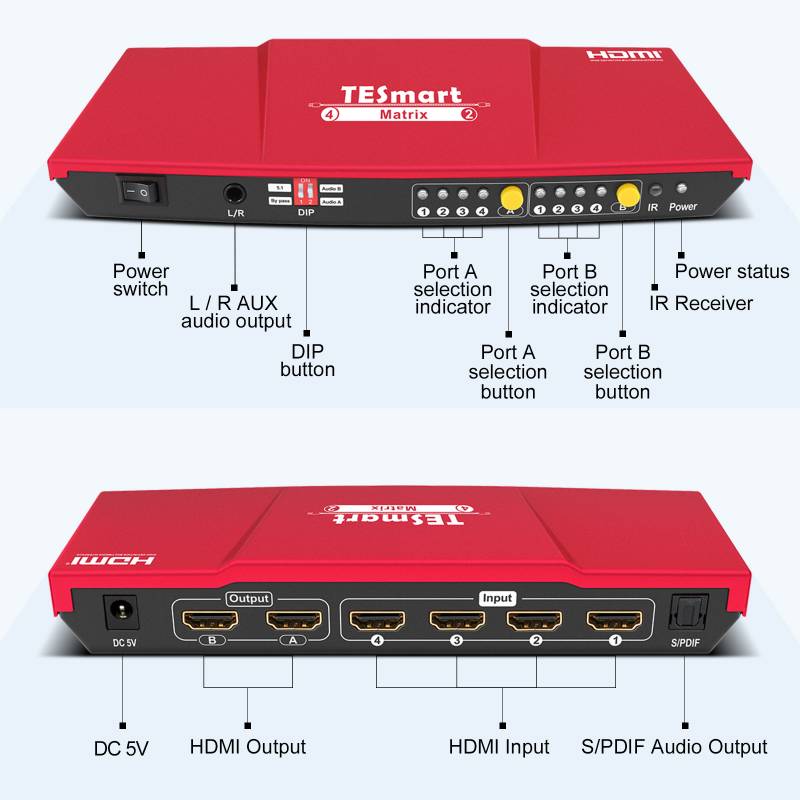

  Panel Description





ID

Name

Description

1

DC 5V

DC 5V power supply

2

HDMI output

Connect to HDMI displays

3

HDMI input

Connect to HDMI devices

4

S/PDIF audio output

Connect to AMP

5

Power switch

Turn on or turn off power supply

6

L/R AUX audio output

Connect to analog L/R audio speaker

7

DIP button

1Prefer 5.1/By pass audio output

2Switching to audio output between port A and port B

8

Port A selection indicator

The LED will be lit if the corresponding input source is selected

9

Port A selection button

Select input sources

10

Port B selection indicator

The LED will be lit if the corresponding input source is selected

11

Port B selection button

Select input sources

12

IR receiver

Receive IR signal

13

Power status

LED indicator of power supply

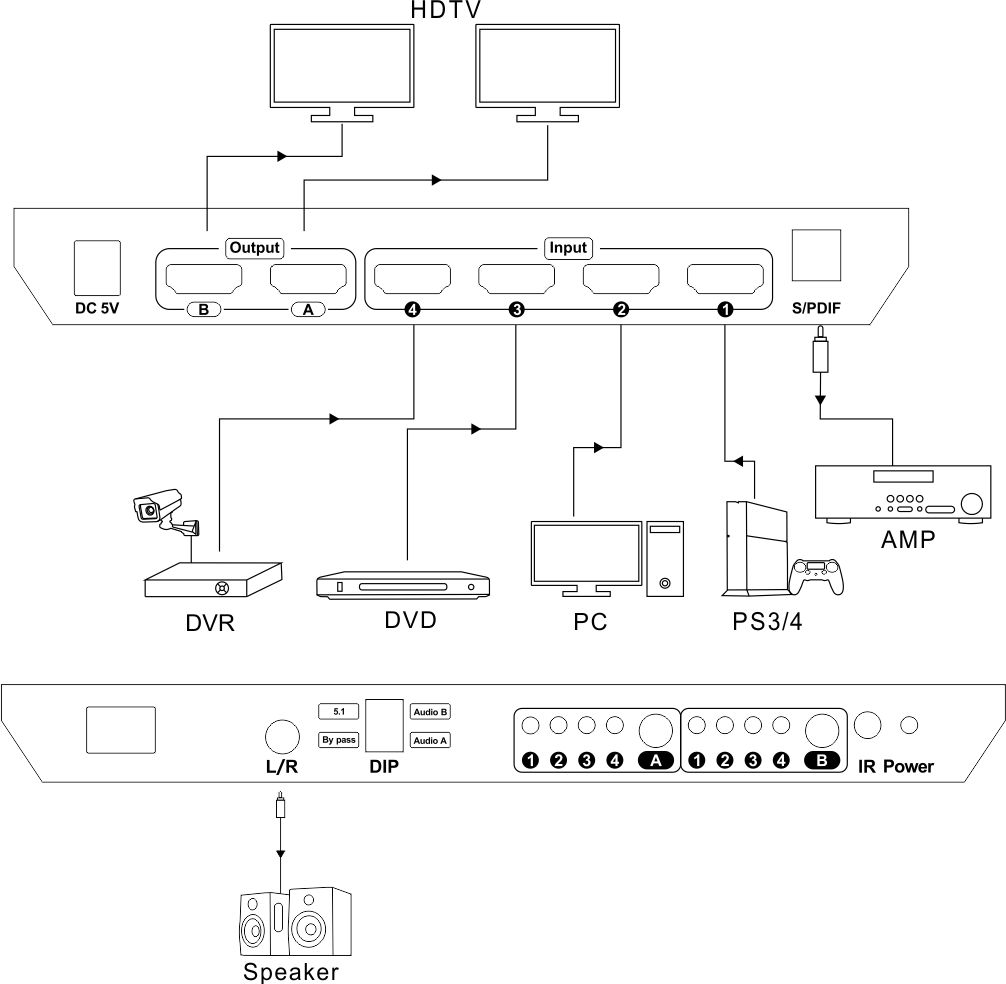

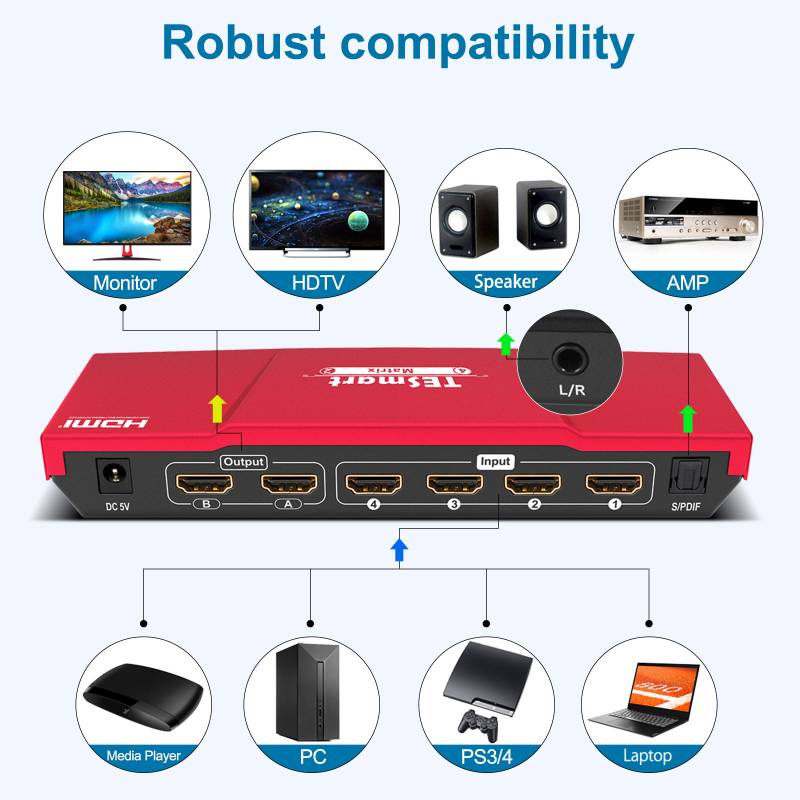

   Connection Diagram






  Specification



HMA0402A40

4x2 HDMI Matrix Switch

Functionality

Port selection

Front panel buttons

Yes

Console commands

No

IR remote control

Yes

OSD

No

Smart EDID

Yes

Technical

Max. Resolution

3840x2160@30Hz

HDCP version

1.4

Data rate

10.2 Gbps

Input

4*HDMI Type A, 24/26 AWG HDMI cable up to 10M

Output

2*HDMI Type A, 24/26 AWG HDMI cable up to 20M

1*S/PDIF (Coaxial)

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical

Chasing material

Aluminum Alloy

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

Product

Dimension

196(L) x 80 (W) x 24 (H) mm

Weight

257g

Item

Dimension

245 (L) x 135 (W) x 90 (H) mm

Weight

548g

Carton

Dimension

515 (L) x 285 (W) x 470 (H) mm

Quantity

20pcs

Total Weight

11.81kg

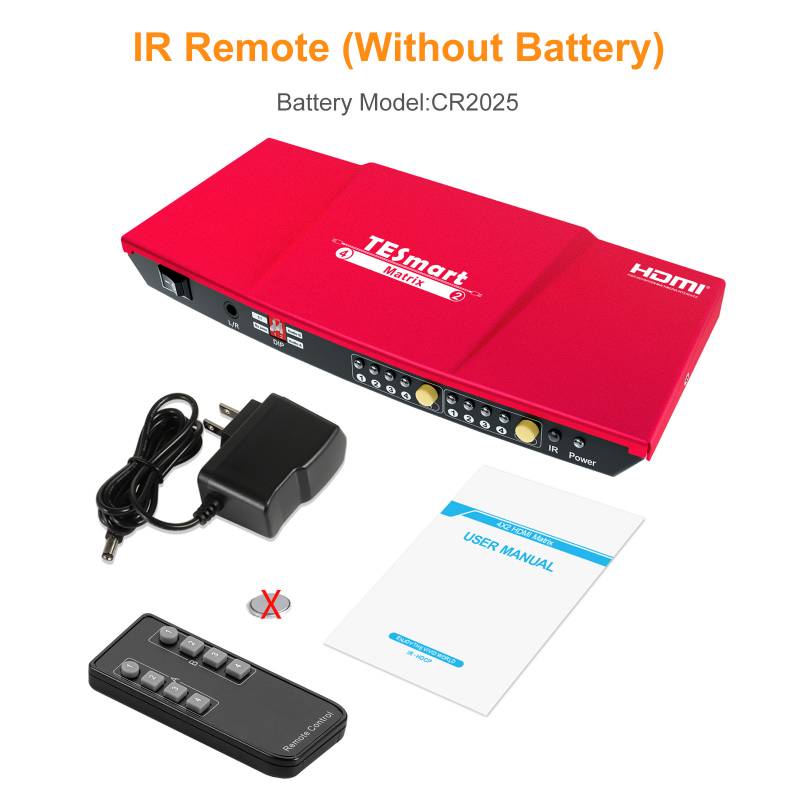

  Packing List


1 * HDMI Matrix 4x2

1 * Remote control

1 * DC 5V Power Adapter

1 * User manual
