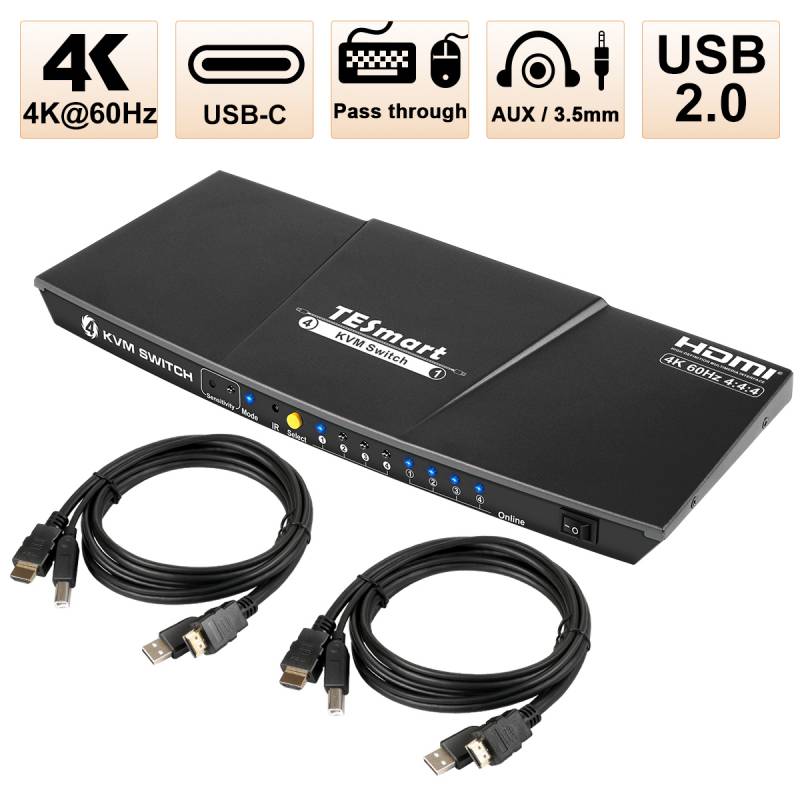

4x1 HDMI KVM Switch(Type-C)

4x1 HDMI KVM Switch(Type-C)

#HCK0401A1U

This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 4x1 HDMI KVM Switch supports USB 2.0 device, you can even attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled by variety of methods. You can choose front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs. Support analog L/R audio output. Support keyboard and mouse pass through mode to improve KM compatibility.


0.00
0.00


#HCK0401A1U

This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 4x1 HDMI KVM Switch supports USB 2.0 device, you can even attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled by variety of methods. You can choose front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs. Support analog L/R audio output. Support keyboard and mouse pass through mode to improve KM compatibility.



Download the specification


Features

l  Using only 1 set of keyboard, mouse and monitor to control 4 PCs

l  Support auto switching to monitor computers in a specified time interval

l Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs

l  Available to use keyboard and mouse without any delay after switching input sources

l  HDCP 2.2 compliant

l  Support USB 2.0 for printers, USB drives, etc

l  With EDID emulators in each input port, keep PCs always having correct display information

l  Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based systems

l Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices

l Support analog L/R audio output

l Support HDR 10 and Dolby Vision

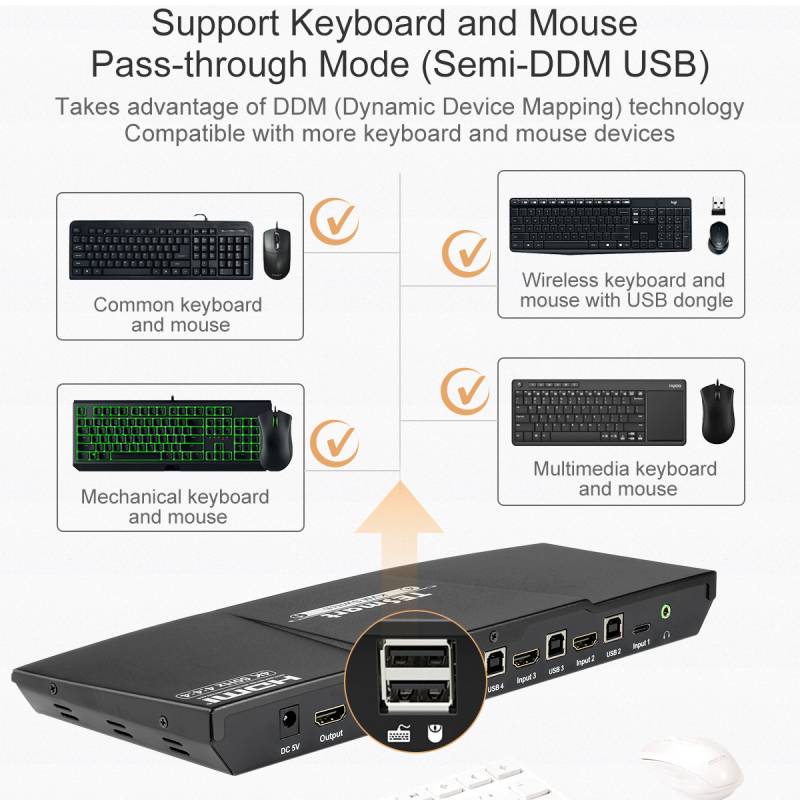

l Support keyboard and mouse pass through mode to improve KM compatibility

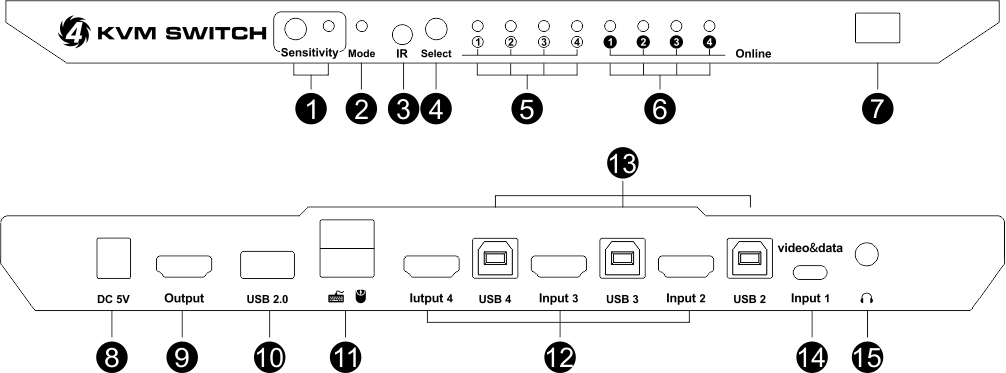

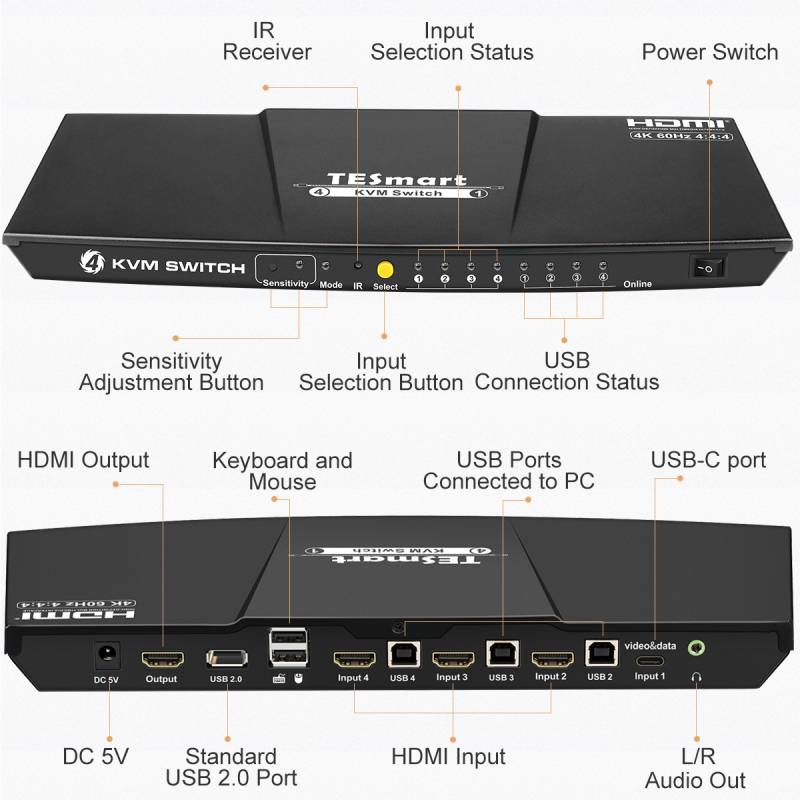

Panel description




ID

Name

Description

1

Mouse sensitivity adjust button and indicator

Press the button to adjust the sensitivity of the mouse fast switching mode

2

Mouse and keyboard pass through mode status

The LED will be lit if keyboard and mouse pass through mode is activated

3

IR receiver

Receive IR remote signal

4

Input selection button

Select input sources

5

Input selection status

Indicate current active selected input source

6

USB connection status

The corresponding LED will be lit if the USB data port is well connected to the computer and the computer is on.

7

Power switch

Turn on or off power supply

8

DC 5V

DC 5V power supply

9

HDMI output

Connect to HDMI display

10

Standard USB2.0 port

Connect to USB 2.0 devices, printers, USB drives

11

Keyboard and mouse input

Connect to keyboard and mouse

12

HDMI input ports

Connect to HDMI source devices

13

USB data ports

Connect to USB ports of computer

14

USB-C port

Connect to USB-C host devices

15

L/R audio output

Analog L/R audio output

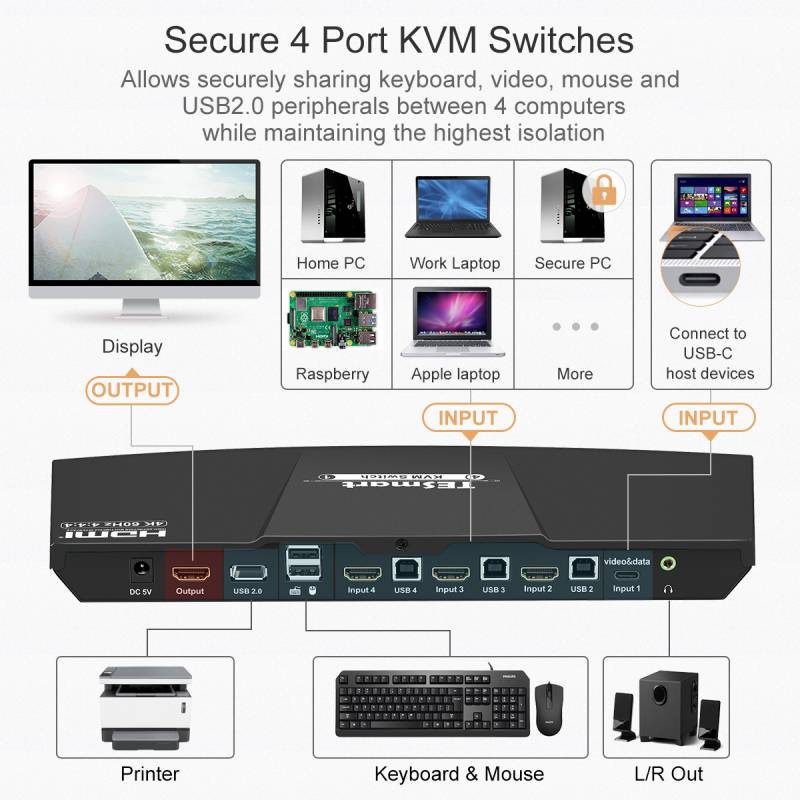

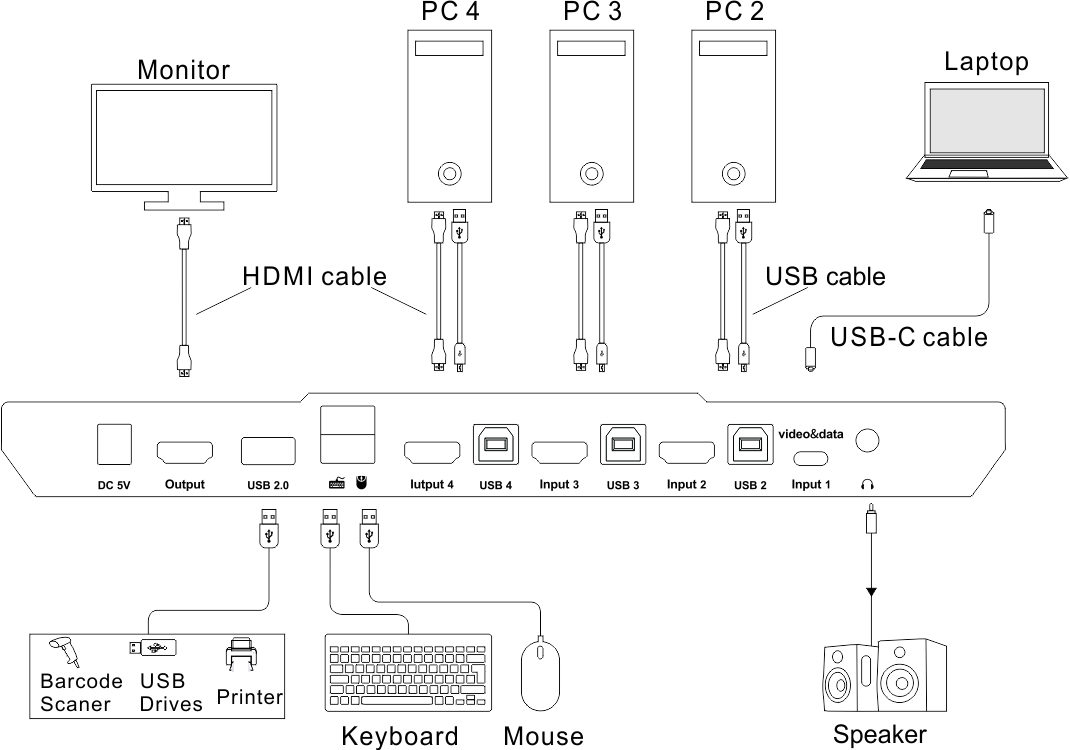

Connection diagram






Specification

HCK0401A1U

4x1 HDMI·USB Type-C KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Technical:

Max. Resolution

3840x2160@60Hz 4:4:4

Auto to get EDID

Yes

Data rate

18 Gbps

Auto scan interval

5~254 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

1 * HDMI Type A

System ports

USB Data

3 * USB Type B

L/R Audio output

1 * AUX

Video / Audio

3 * HDMI Type A

1 * USB Type C

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product

Dimension

300 (L) x 117 (W) x 30w (H) mm

Weight

517g

Item

Dimension

338 (L) x 166 (W) x 90 (H) mm

Weight

1360g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

14.45kg

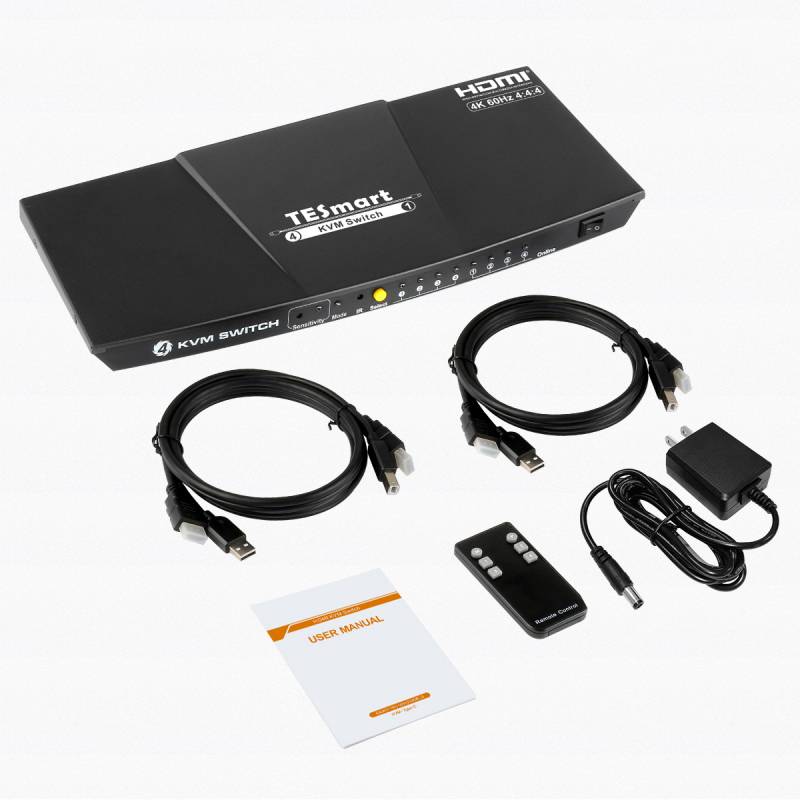

Packing list


1 * 4x1 HDMI KVM Switch

1 * DC 5V Power Adapter

1 * IR Remote Control

1 * User manual
