4x1 HDMI KVM Switch

#HKS0401A30

This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 4x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, IR signals and hot keys on keyboard. With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.


0.00
0.00


#HKS0401A30

This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 4x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, IR signals and hot keys on keyboard. With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.



   Features


Using only 1 set of keyboard, mouse and monitor to control 4 PCs
Support Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based system
Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
Support auto switching among all devices so as to monitor the devices in a specified time interval
Support keyboard hot keys to control KVM switch
Available to use keyboard without any delay after switch host devices
Support resolution up to 3840*2160@30Hz
With extra standard USB  port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer
Support IR control, easy to control KVM by remote control
With EDID emulators in each input port, keep PCs always having correct display information
Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

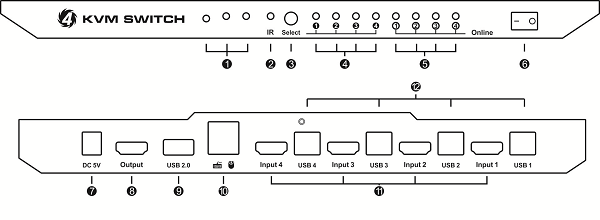

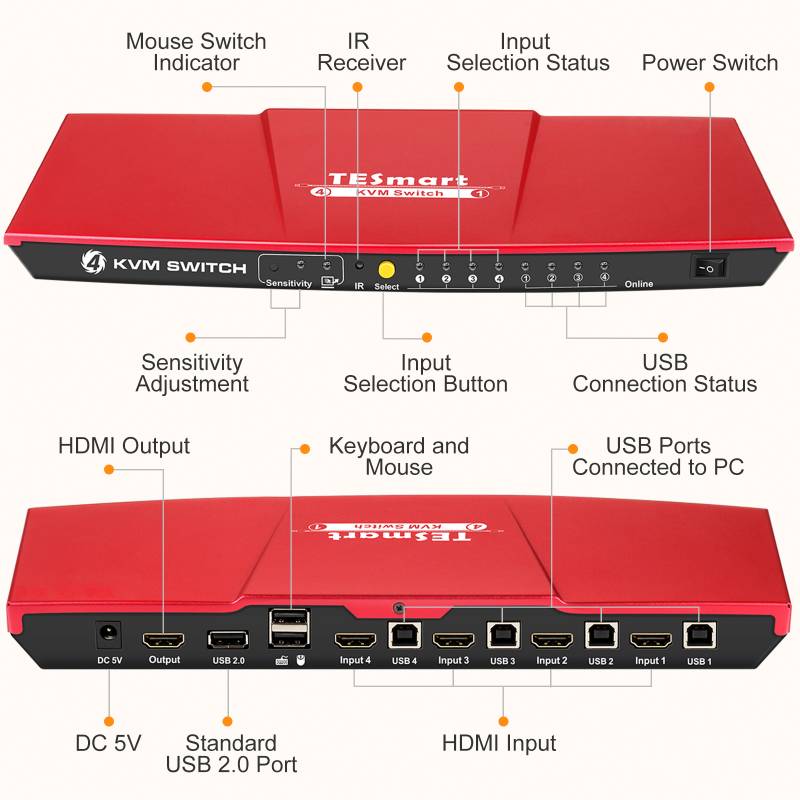

  Panel Description




1.Reserved for other model 7.DC 5V input
2.IR receiver 8.HDMI output
3.Input selection button 9.Standard USB 2.0 port
4.Input selection status 10.Keyboard and mouse input
5.USB connection status 11.HDMI input ports
6.Power switch 12.USB ports connected to PC

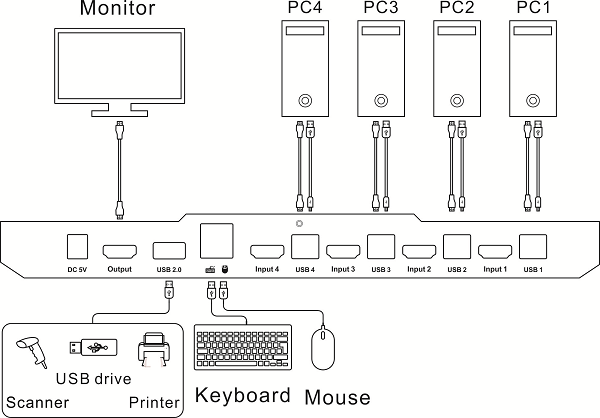

  Connection Diagram






   Specification


HKS0401A30

4x1 HDMI KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Console commands

No

Technical:

Resolution

Up to 3840x2160@30Hz

Auto to get EDID

Yes

Data rate

10.2 Gbps

Auto scan interval

1~250 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

1 * HDMI Type A

RS232

NA

LAN

NA

System ports

USB Data

4 * USB Type B

Video / Audio

4 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product dimensions

302 (L) x 120 (W) x 30 (H) mm

Item weight

800g

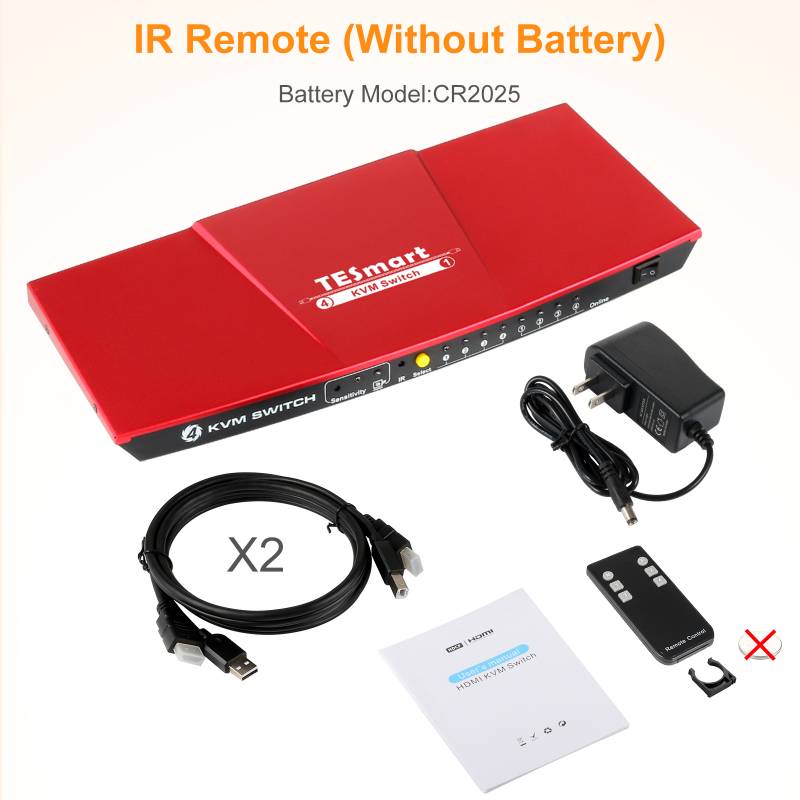

   Package Included


1 * 4x1 HDMI KVM Switcher

1 * DC 5V Power Adapter

1 * IR Remote Control

1 * Quick-Start Guide
