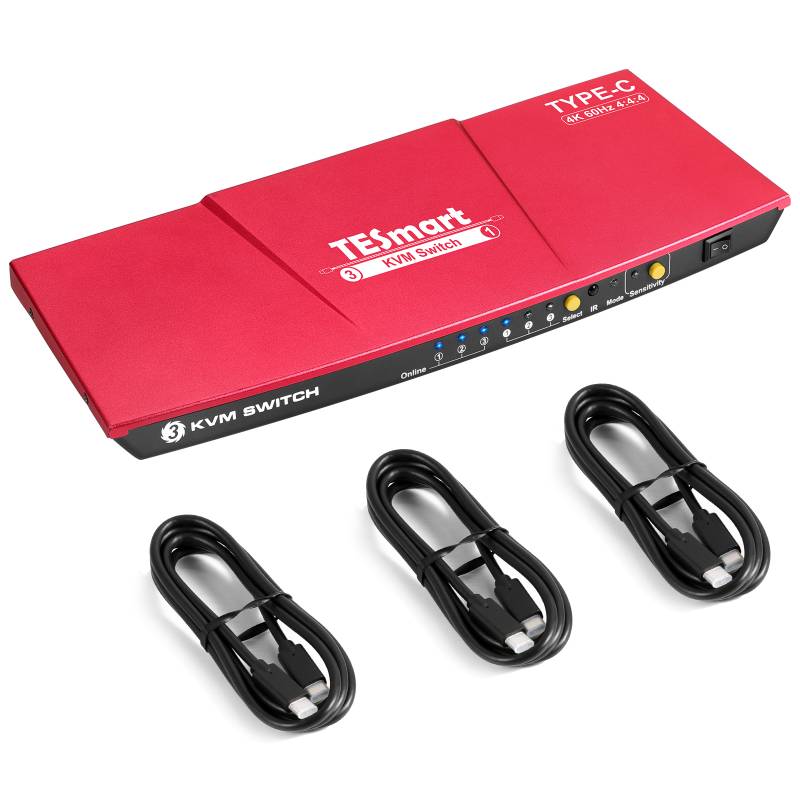

3x1 USB Type-C KVM Switch
#CKS0301A1U

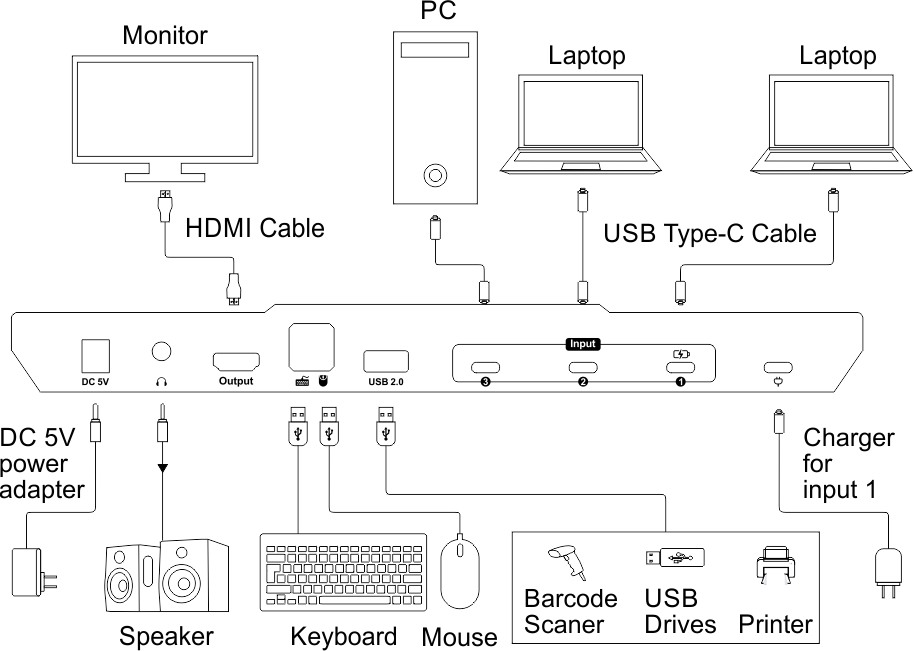

This 3x1 USB Type-C KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any USB Type-C computers using one HDMI compliant display.
The 3x1 USB Type-C KVM Switch support using a USB-C fast charger to charge the device connected to input port 1. Support Analog L/R audio output. Support USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub port on the KVM, you can even attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel button, IR signals and hot keys on keyboard. Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility, connect them to the Switch just as you have plugged these devices directly to computer. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.
#CKS0301A1U
This 3x1 USB Type-C KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any USB Type-C computers using one HDMI compliant display.
The 3x1 USB Type-C KVM Switch support using a USB-C fast charger to charge the device connected to input port 1. Support Analog L/R audio output. Support USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub port on the KVM, you can even attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel button, IR signals and hot keys on keyboard. Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility, connect them to the Switch just as you have plugged these devices directly to computer. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.
| Download the specification |
|
l Using only 1 set of keyboard ,mouse and monitor to control 3 computer devices
l Support resolution up to 3840*2160@60Hz 4:4:4
l HDCP 2.2 compliant
l Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/ Raspbian/Ubuntu for Raspberry Pi and other Linux based systems
l Available to use keyboard and mouse without any delay after switching input sources
l With EDID emulators in each input port, keep PCs always having correct display information
l Support front panel button, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
l Support auto switching to monitor computers in a specified time interval
l Support analog L/R audio output
l Support HDR 10 and Dolby Vision
l Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility
l Support using a USB Type-C fast charger to charge the devices connected to input port 1

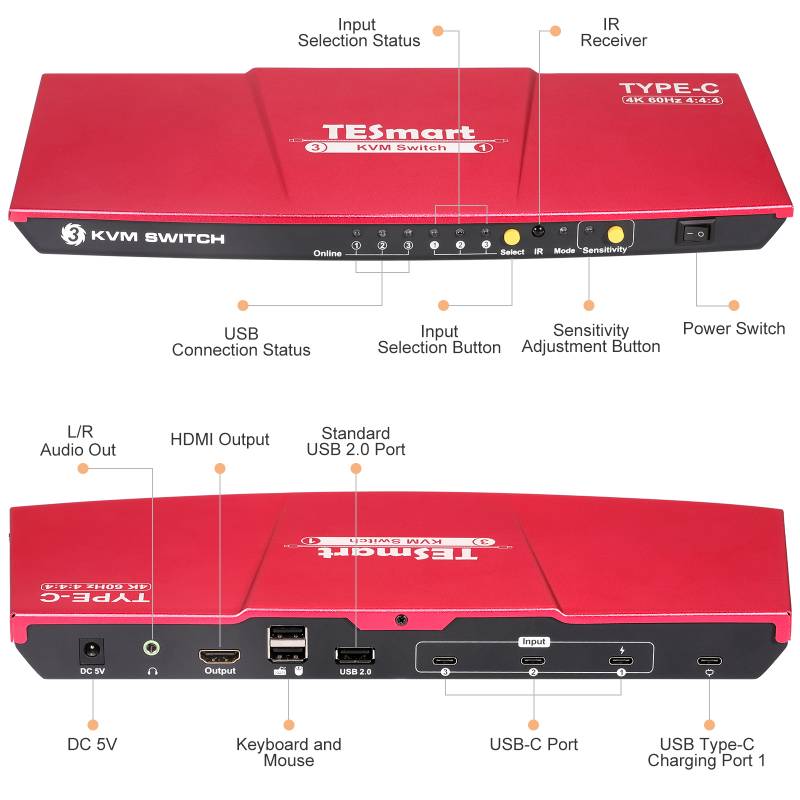

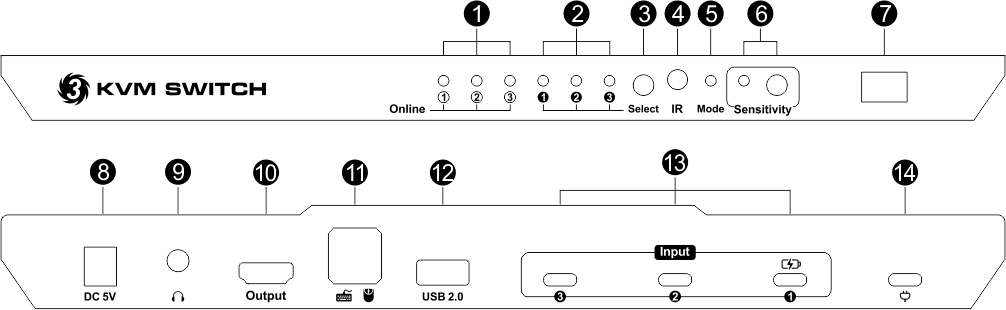

ID | Name | Description |
1 | USB connection status | LEDs will be lit if the KVM is connected to computers, and computers are on |
2 | Input selection status | Indicate current selected input source |
3 | Input selection button | Select input sources |
4 | IR receiver | Receive IR remote signal |
5 | Keyboard and mouse pass through mode status | LED will be lit if the keyboard and mouse pass through mode is activated |
6 | Mouse sensitivity adjust button and indicator | The LED will be lit if fast switching mode (Mouse gesture) is activated. |
7 | Power switch | Turn on or off power supply |
8 | DC 5V | 5V DC power supply |
9 | L/R audio output | Analog L/R audio output |
10 | HDMI output | Connect to HDMI display |
11 | Keyboard and mouse input | For USB keyboard and mouse input, including wireless keyboard and mouse |
12 | Standard USB2.0 port | Connect to USB2.0 devices, printers, barcode scanner, USB drives, etc. |
13 | USB Type-C ports | Connect to USB Type-C source devices |
14 | USB Type-C charging port | Connect to USB Type-C fast charger for charging the device connected to Input port 1 |
Specification
CKS0301A1U | 3x1 USB Type-C KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Mouse gesture | Yes | |
Console commands | No | |
Technical: | ||
Max. Resolution | 3840x2160@60Hz | |
Auto to get EDID | Yes | |
Data rate | 18 Gbps | |
Auto scan interval | 5~254 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |
Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 1 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
System ports | L/R audio output | 1 * AUX |
Video / Audio | 3 * USB Type-C | |
Charging port | 1 * USB Type-C | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |
Mechanical: | ||
Chasing material | Aluminum Alloy | |
Product
| Dimension | 300 (L) x 117 (W) x 30 (H) mm |
Weight | 507g | |
Item
| Dimension | 338 (L) x 166 (W) x 90 (H) mm |
Weight | 1100g | |
Carton
| Dimension | 490 (L) x 360 (W) x 360 (H) mm |
Quantity | 10pcs | |
Total Weight | 11.85kg | |

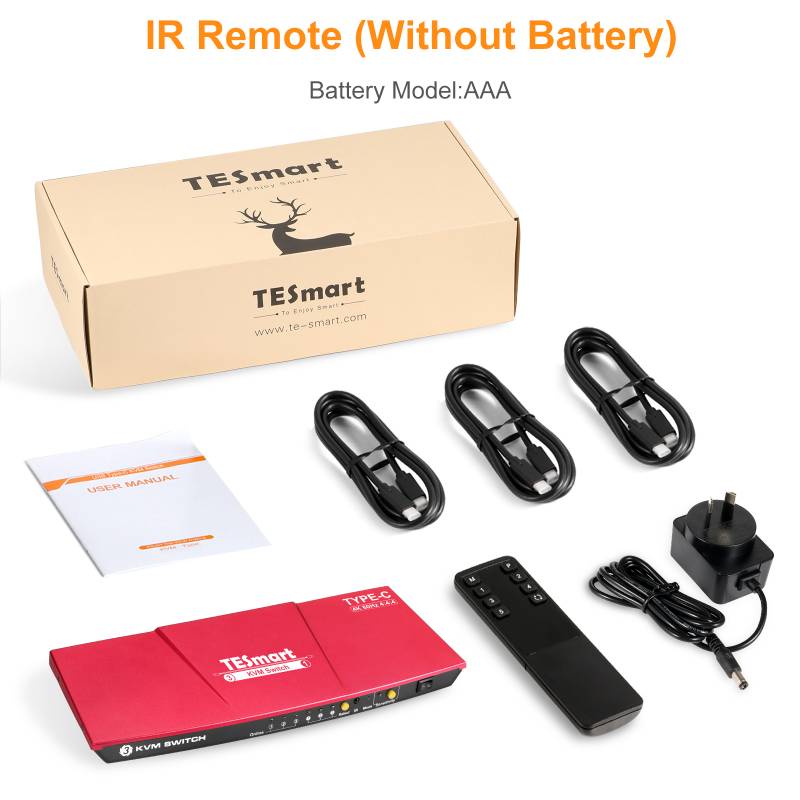

Packing list
1 * 3x1 USB Type-C KVM Switch
1 * DC 5V power adapter
1 * IR remote control
1 * User Manual
3 * USB Type-C cables
1 * Quick-Start Guide
