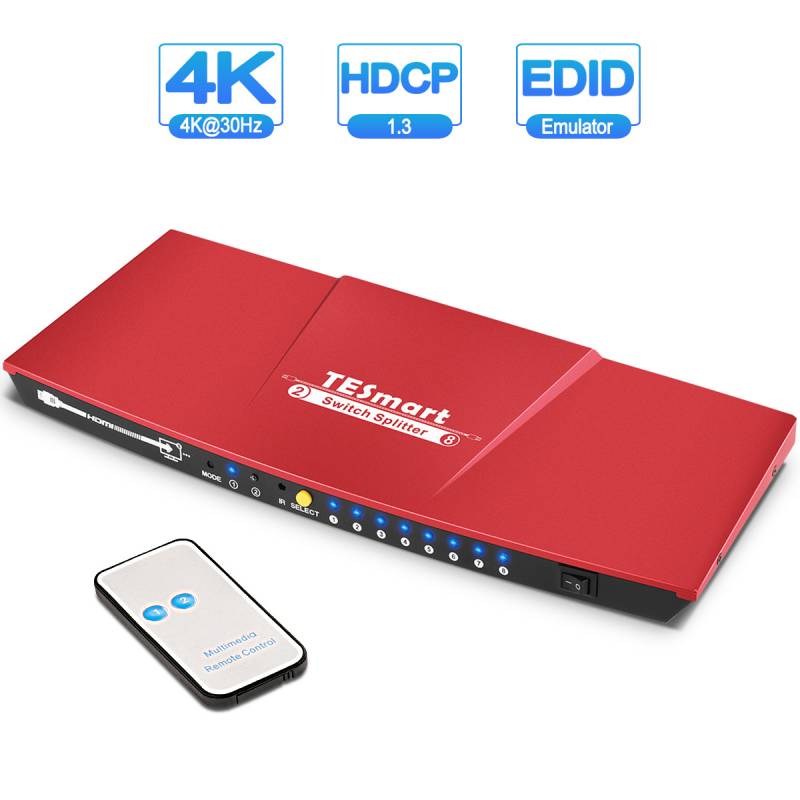

2x8 HDMI Switch Splitter

2x8 HDMI Switch Splitter

#HSP0208A11

The HDMI splitter (HSP0208A11) for 4K HDMI distributes the one of two Ultra HD HDMI source to eight Ultra HD displays simultaneously, without loss of quality or resolution. This product works with any Ultra HD source and supports resolutions up to 4K. It features Fast Switching Technology, and supports HDCP, Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby® TrueHD and DTS-HD® Master Audio™.




0.00
0.00


#HSP0208A11

The HDMI splitter (HSP0208A11) for 4K HDMI distributes the one of two Ultra HD HDMI source to eight Ultra HD displays simultaneously, without loss of quality or resolution. This product works with any Ultra HD source and supports resolutions up to 4K. It features Fast Switching Technology, and supports HDCP, Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby® TrueHD and DTS-HD® Master Audio™.




   Application


The HDMI splitter(HSP0208A11) is apply to TV stores, exhibition hall, bars, KTV clubs, schools, hospitals, hotel lobbies, retail establishments and any other installations where Ultra HD AV content from an HDMI source needs to be displayed simultaneously on up to 8 Ultra HD displays.


  Features


l  With 2 input sources, either one can be distributed to 8 Ultra HD displays

l  HDCP 1.3 compliant

l  Support resolution up to Ultra HD 4K 30Hz

l  Support up to 36 bit/pixel Deep Color

l  Support LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio™

l  Support HDMI input/output cable up to 10 meters

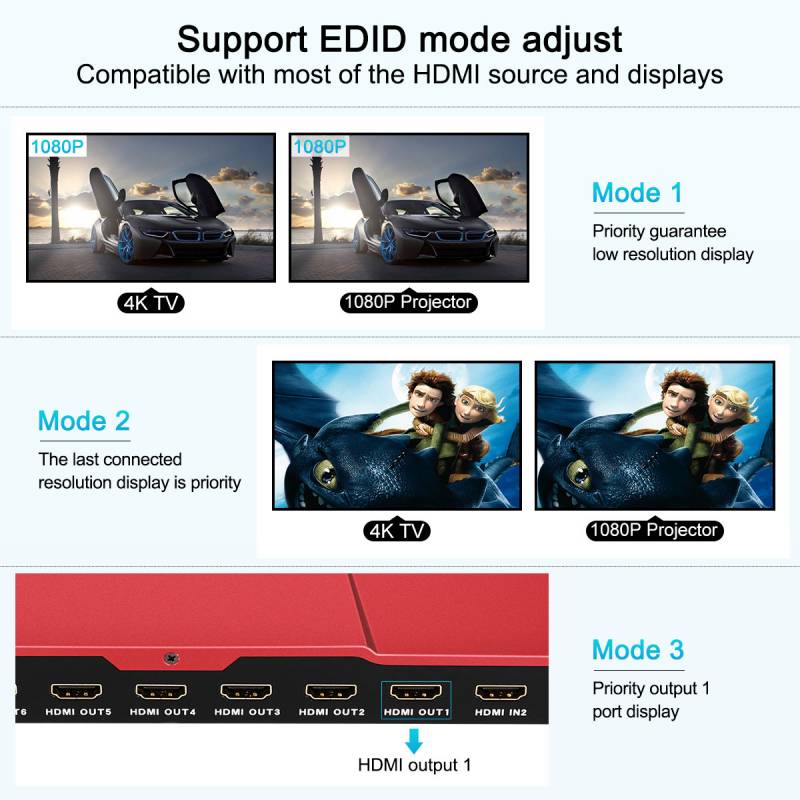

l  Support EDID mode adjust, compatible with most of the HDMI source and displays

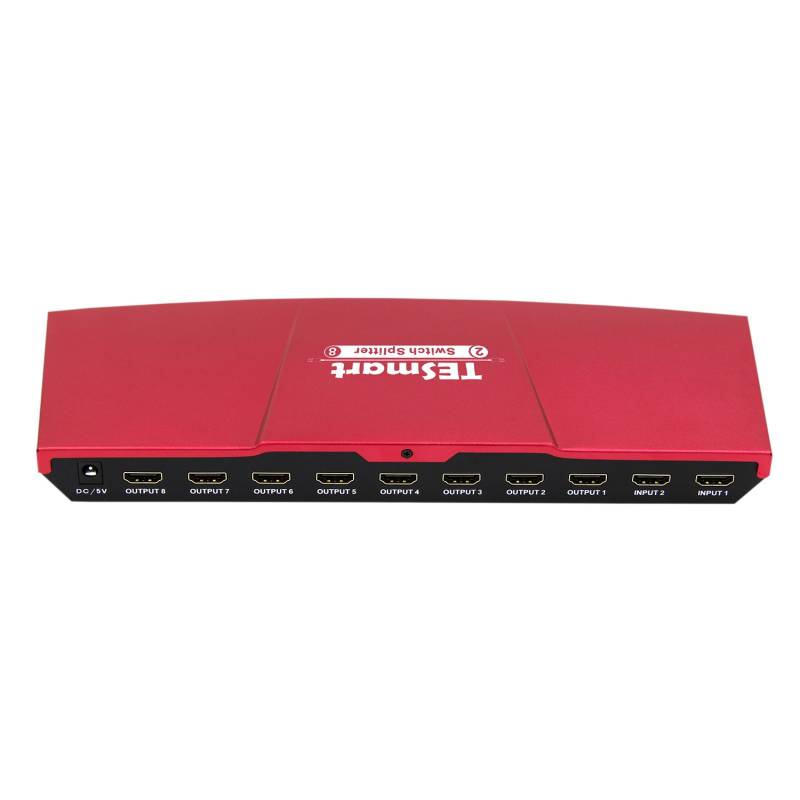

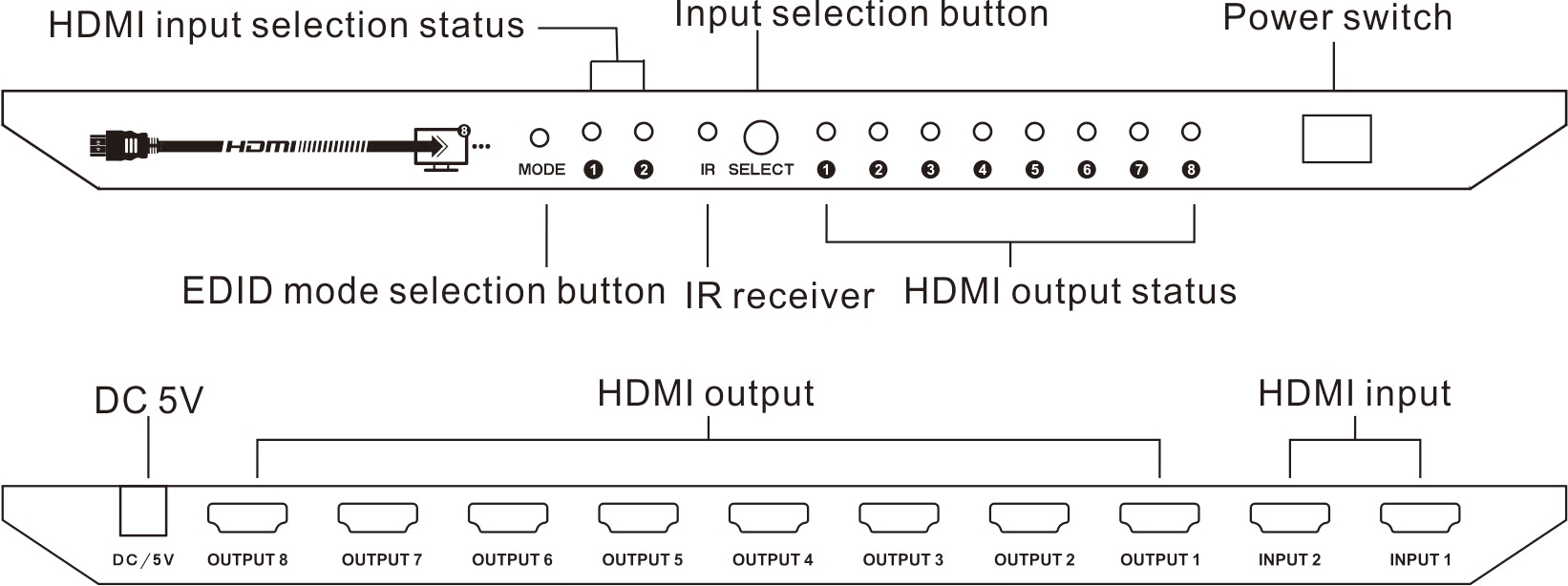

  Panel Description

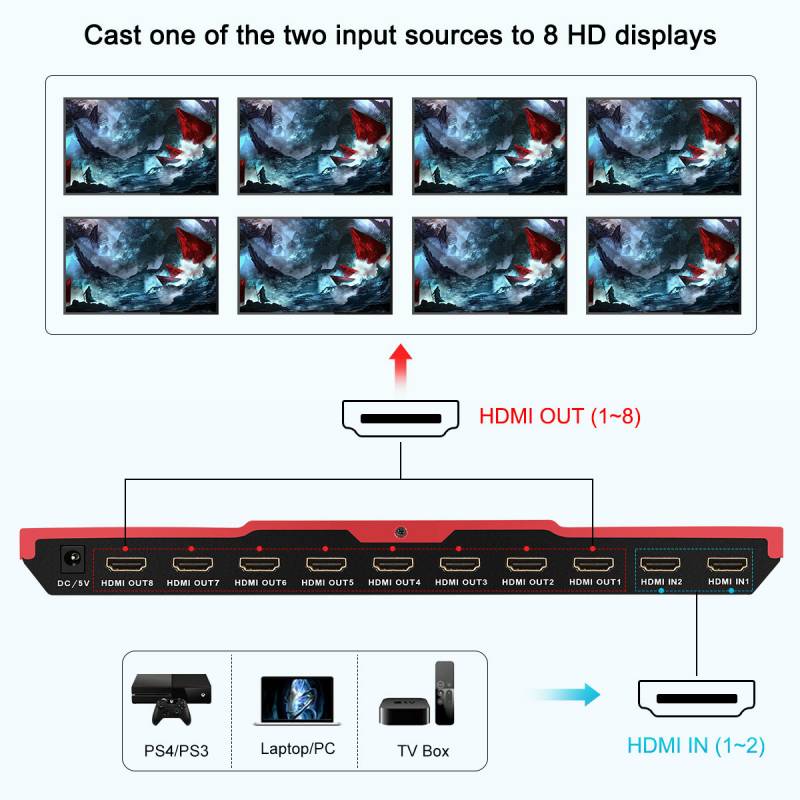

   Connection Diagram





  Specification


HSP0208A11

2x8 HDMI Switch /Splitter

Functionality:

Port selection

Front panel buttons

Yes

IR remote control

Yes

Power switch

Yes

EDID mode adjust

Yes

Smart EDID

Yes

Technical:

Max. Resolution

3840*2160@30Hz

HDCP version

1.4

Data rate

10.2 Gbps

Input

2*HDMI Type A, 24/26 AWG cable up to 5M (1080P60Hz)

Output

8*HDMI Type A, 24/26 AWG cable up to 15M (1080P60Hz)

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product

Dimension

302 (L) x 120 (W) x 30 (H) mm

Weight

494

Item

Dimension

321 (L) x 175 (W) x 81 (H) mm

Weight

858

Carton

Dimension

515 (L) x 285 (W) x 470 (H) mm

Quantity

10pcs

Total Weight

9.43kg

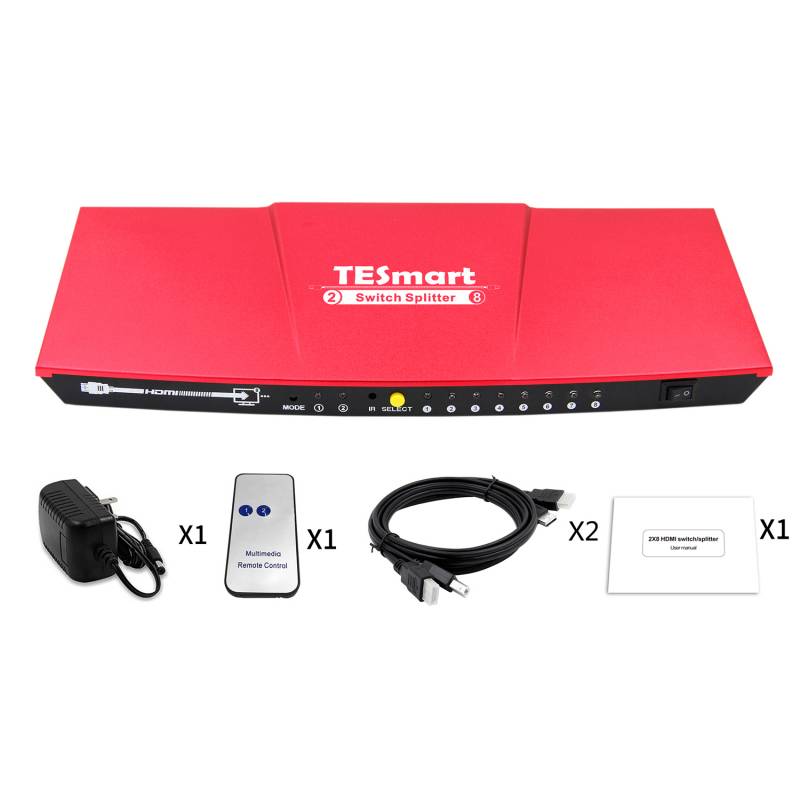

  Packing List


1 * HDMI Switch Splitter 2x8

1 * IR Remote Control

1 * DC 5V 2A Power Adapter

1 * Quick-Start Guide
