HDMI to VGA Adapter

HDMI to VGA Adapter

#H2V0101W02

This product is HDMI to VGA adapter, converts HDMI signal to VGA signal. With the use of the adapter, the output signal can be connected to the VGA input, for example monitors, projectors and other devices. And the synchronous L/R audio is available from AUX jack. With additional power supply by micro-USB cable, avoid some compliant problems when the power from HDMI is weak.

0.00
0.00


#H2V0101W02

This product is HDMI to VGA adapter, converts HDMI signal to VGA signal. With the use of the adapter, the output signal can be connected to the VGA input, for example monitors, projectors and other devices. And the synchronous L/R audio is available from AUX jack. With additional power supply by micro-USB cable, avoid some compliant problems when the power from HDMI is weak.


  Features


l  Plug and play, easy to use

l  Power supply from HDMI cable

l  Automatically color space conversion

l  Support input and output resolution up to 1920*1080@60Hz

l  Well anti-interference ability

l  Support L/R audio output

l  Support additional power supply by micro-USB cable

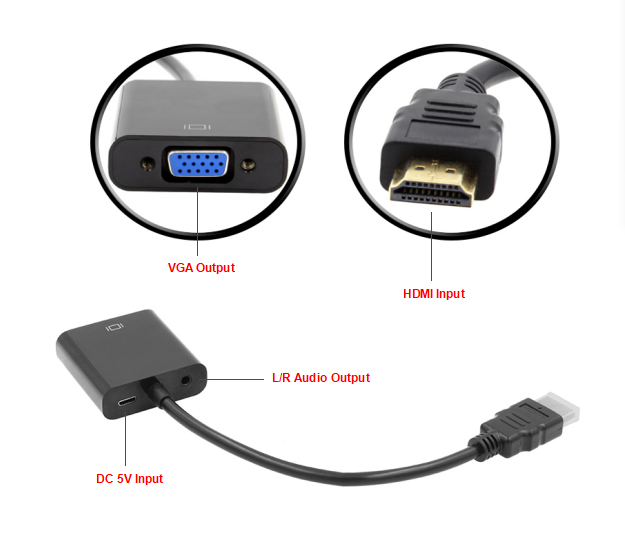

  Panel Description




Note:The conversion of the product is unidirectional, should not be used as VGA to HDMI converter.

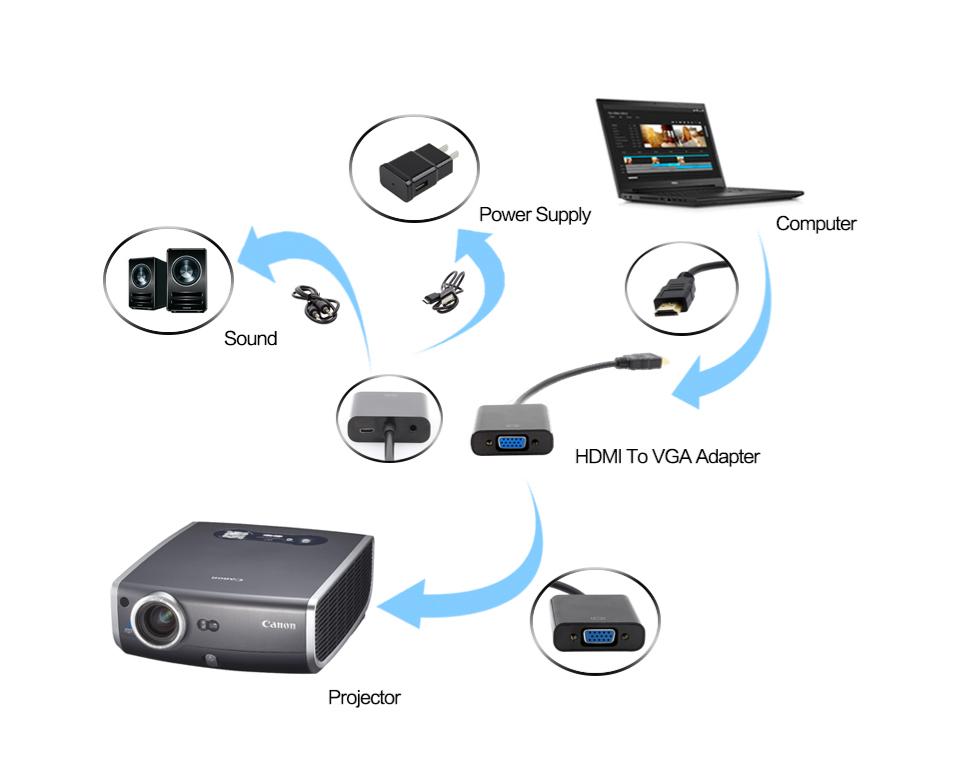

   Connection Diagram




  Specification


H2V0101W02

HDMI to VGA Adapter

Technical:

HDCP compliance

Yes

Data rate

10.2 Gbps

Max. Resolution

1920x1080@60Hz

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

1*HDMI Type A

Output

1* VGA, 1*3.5mm Aux(Audio output)

Mechanical:

Chasing material

Plastics

Product Dimensions

250 (L) x 45 (W) x 15 (H) mm

Item Weight

55g

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

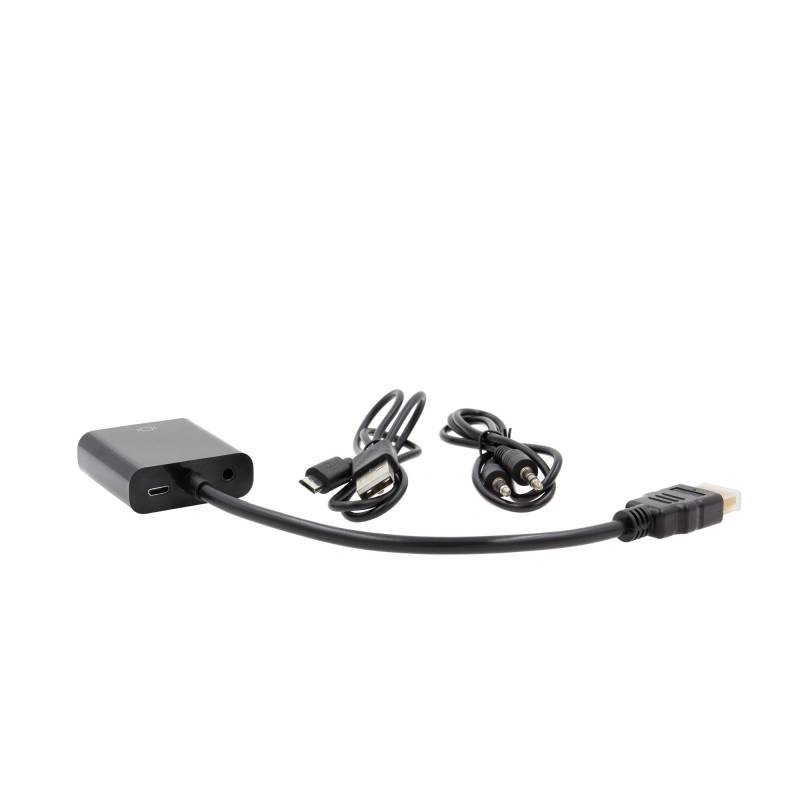

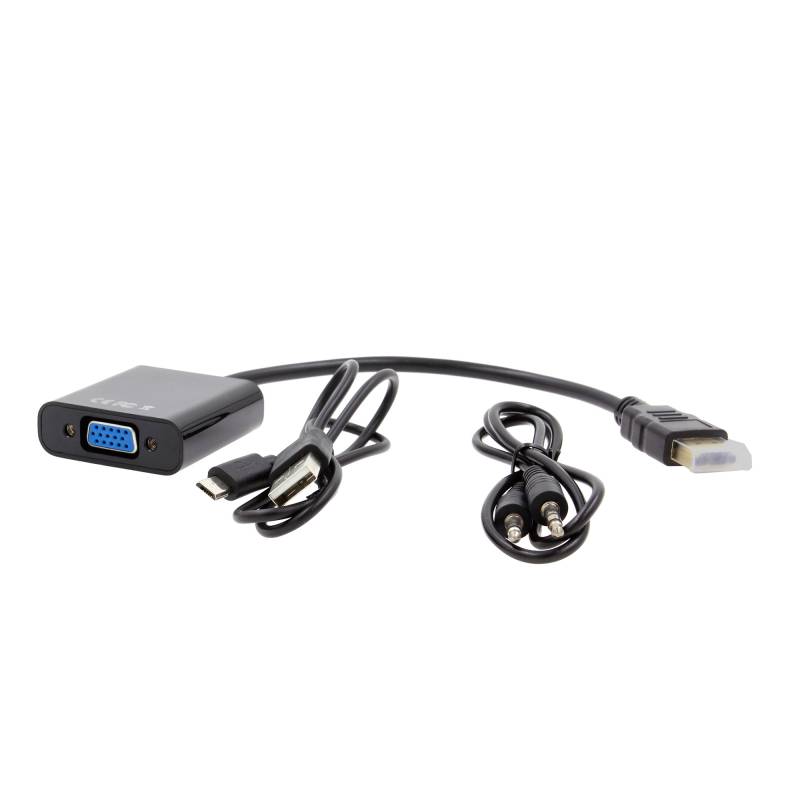

  Packing List


1 *  HDMI to VGA converter

1 *  AUX audio cable

1 *  USB charging line

1 * User manual
