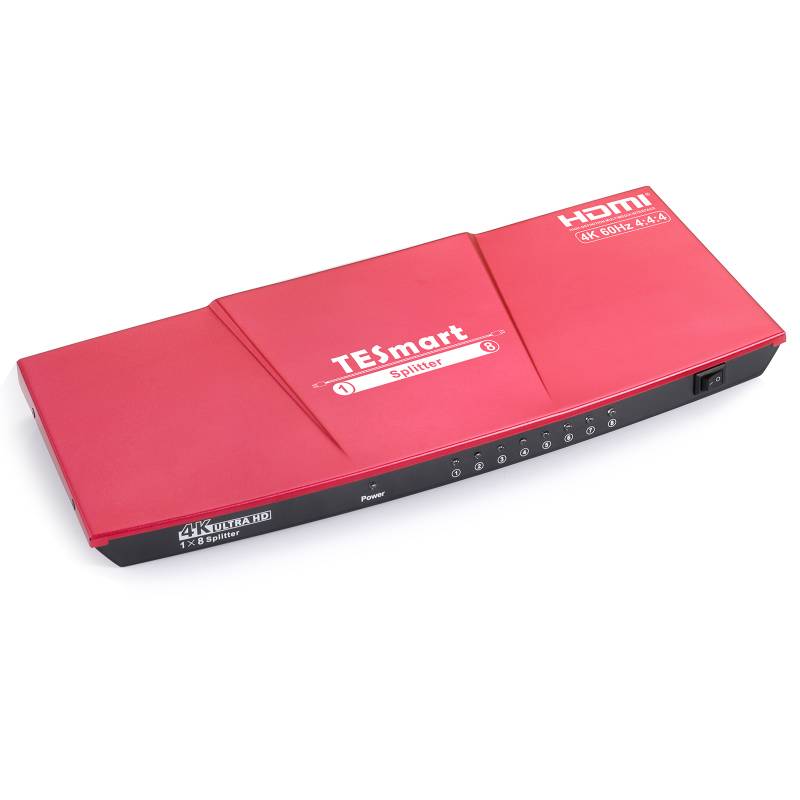

1x8 HDMI Splitter

1x8 HDMI Splitter

#HSP0108A2U

This 1x8 HDMI splitter routes can distributes one Ultra HD HDMI source to eight Ultra HD displays simultaneously. Support resolution up to 4K@60Hz. Compliant with HDCP 2.2. Support up to 36 bit/pixel deep color. With smart EDID management, make it compatible with most of the HDMI displays and sources. Support LPCM 7.1, Dolby®TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™.


0.00
0.00


#HSP0108A2U

This 1x8 HDMI splitter routes can distributes one Ultra HD HDMI source to eight Ultra HD displays simultaneously. Support resolution up to 4K@60Hz. Compliant with HDCP 2.2. Support up to 36 bit/pixel deep color. With smart EDID management, make it compatible with most of the HDMI displays and sources. Support LPCM 7.1, Dolby®TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™.


  Application


The HDMI splitter(HSP0108A2U) is apply to TV stores, exhibition halls, bars, KTV clubs, schools, hospitals, hotel lobbies, retail establishments and any other installations where Ultra HD AV content from an HDMI source needs to be displayed simultaneously on up to two Ultra HD displays.


  Features


●   Distributes one Ultra HD A/V source to eight Ultra HD displays

●   Support the resolution up to Ultra HD 4K 60Hz 4:4:4

●   Support up to 36 bit/pixel Deep Color

●   Support 7 EDID modes

●  All ports support CEC function ( The connected HDMI devices also should support CEC)

●  HDCP 2.2 compliant

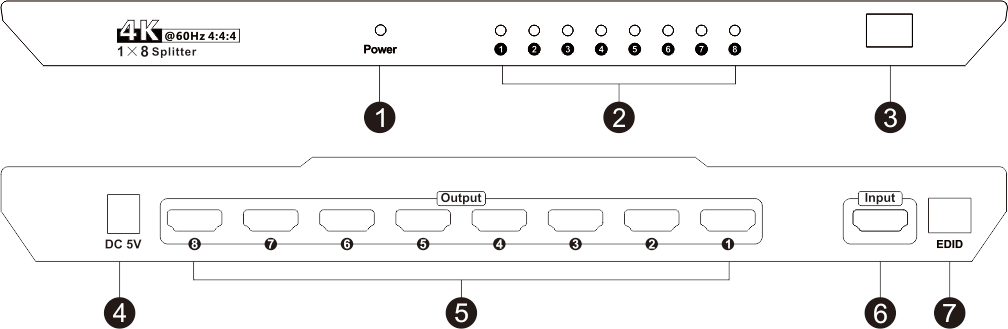

Panel Description




ID

Name

Description

1

Power status

LED indicator of power supply

2

Output connection status

LEDs will be lit if HDMI displays are connected to splitter

3

Power switch

Turn on or off power supply

4

DC 5V input

           DC 5V power supply

5

HDMI output ports

Connect to HDMI display

6

HDMI input port

Connect to HDMI source devices

7

EDID mode switch

Select EDID mode

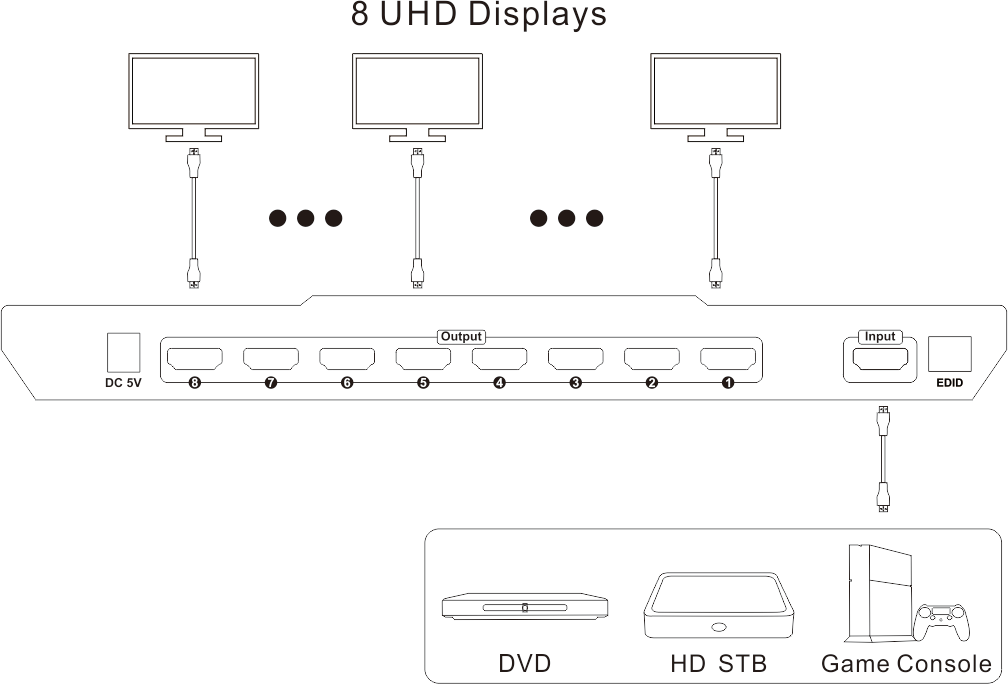

   Connection Diagram





 Specification



HSP0108A2U

1x8 HDMI Splitter

Functionality:

Smart EDID

Yes

Technical:

Max. Resolution

3840*2160@60Hz

HDCP version

2.2

Data rate

18 Gbps

Input

1* HDMI Type A

Output

8* HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical

Chasing material

Aluminum Alloy

Power supply

DC 5V 2A

Operating/storage temperature

0 to 70 degree/-40 to 85 degree

Operating humidity

10 to 90% RH

Product

Dimension

300 (L) x 118 (W) x 30 (H) mm

Weight

506g

Item

Dimension

338 (L) x 166 (W) x 90 (H) mm

Weight

916g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

10.01kg

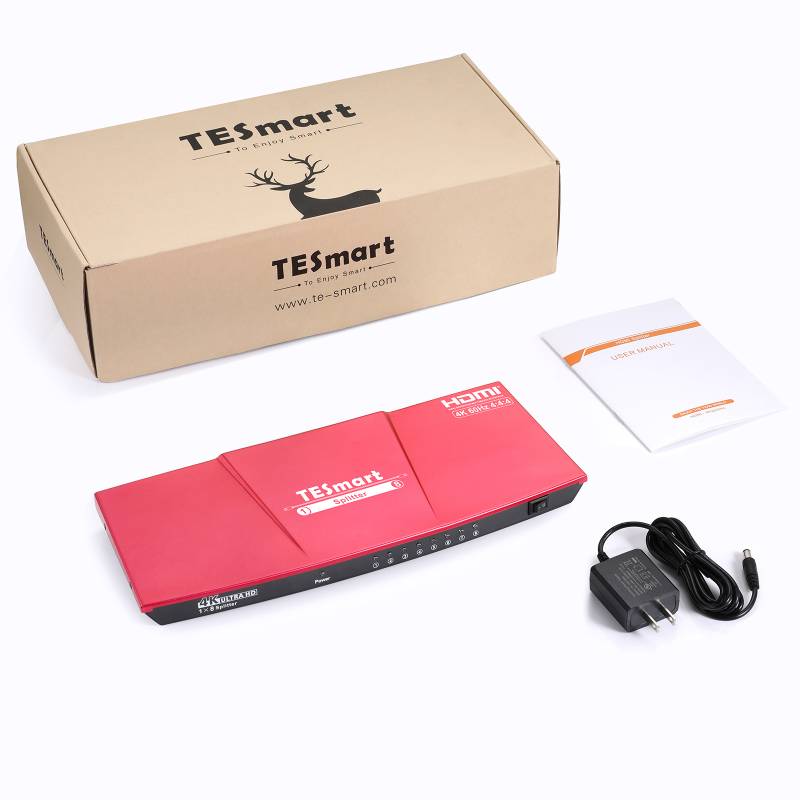

  Packing List


1 * 1x8 HDMI Splitter

1 * DC 5V 2A Power adapter

1 * User manual
