16x16 HDMI Matrix

16x16 HDMI Matrix

#HMA1616A10

This 16x16 HDMI matrix routes 16 Ultra HD sources to 16 Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232, IP interface. With smart EDID management, make it compatible with most of the HDMI source and sink devices.


0.00
0.00


#HMA1616A10

This 16x16 HDMI matrix routes 16 Ultra HD sources to 16 Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232, IP interface. With smart EDID management, make it compatible with most of the HDMI source and sink devices.



   Features


Resolution up to 3840*2160@30Hz
Each HDMI output can share same input or select standalone input
Support PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format
Smart EDID management, make it compatible with most display devices
Matri status could be memorized after power down, automatically restore previous matrix status after next power on
Easy to control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
Easy to view routing status via LCD display
Support user preset connections

Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

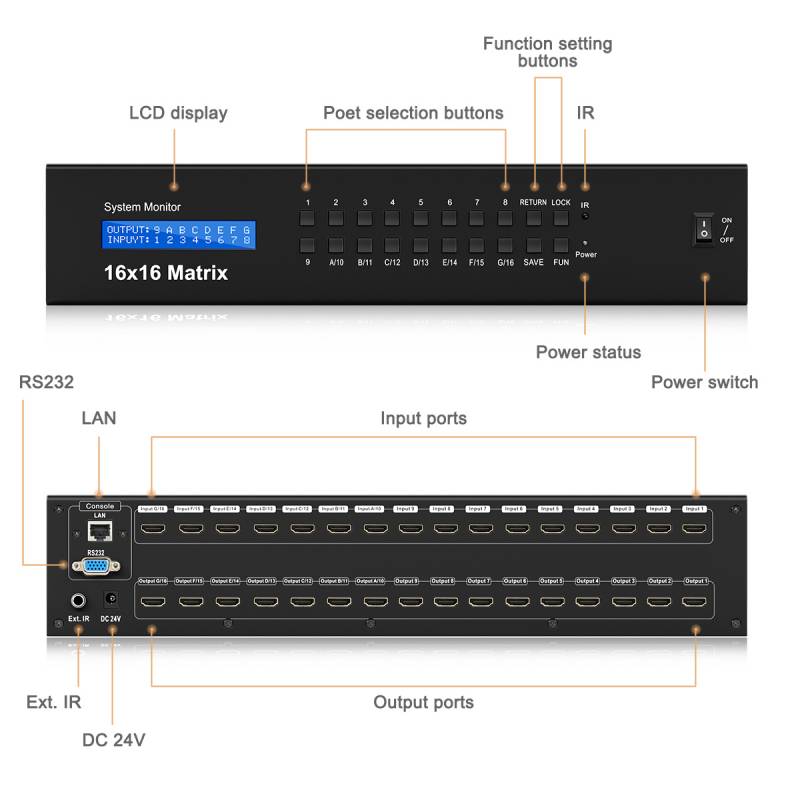

  Panel Description






ID

Name

Description

1

24x2 LCD display

  Display matrix routing status and system settings

2

Port selection buttons

  Input and output ports selection buttons

3

Function setting buttons

RETURN: Restore user preset routings

SAVE: Save current routings as user preset

LOCK: Lock and unlock the keypad

FUN: Fast setting of N to N mirrored routing  and N to all routing


4

IR

  Receive IR remote signal

5

Power status

  LED indicator of power status

6

Power switch

  Turn on or off power supply

7

Console ports

LAN: Connect to local area network, control matrix with TCP/IP commands

RS232: Connect to RS232 port, control matrix with RS232 protocol

8

Ext. IR

  Extended IR receiver cable input

9

DC 24V

  24V DC power supply

10

Input ports

  Input ports connect to HDMI source devices

11

Output ports

  Output ports connect to display devices



Connection Diagram






  Specification


HMA1616A10

16x16 HDMI Matrix

Functionality

Port selection

Front panel buttons

Yes

Console commands

RS232 / IP

IR remote control

Yes

LCD Display

24x2 characters

OSD

No

Smart EDID

Yes

Technical

Resolution

Up to 3840x2160@30Hz/ 1080P 3D 60Hz

HDCP compliant

Yes

Data rate

10.2 Gbps

Input

16 * HDMI Type A

Output

16* HDMI Type A

ESD protection

Human body model - ±8KV (Air-gap discharge)

Mechanical

Chasing material

Metal

Product dimensions

440(L) x 298 (W) x 89 (H) mm

Item weight

4000 g

Power supply

DC 24V

Operating/storage  temperature

0 to 70 degree/-40 to 85 degree

Operating humidity

10 to 90% RH

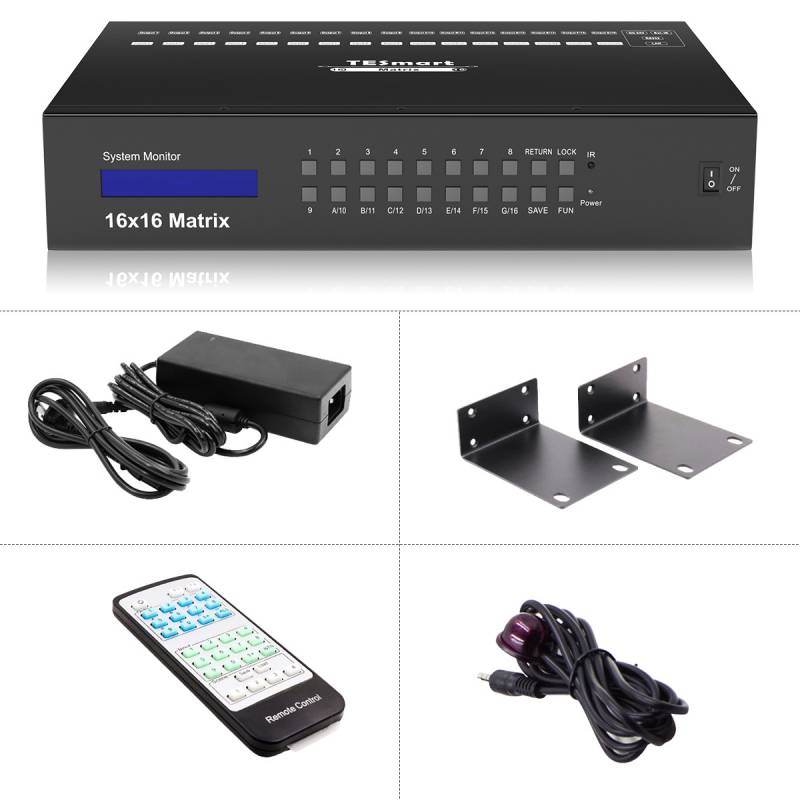

 Packing List


1 * 16x16 HDMI Matrix

1 * Remote Control
1 * IR Receiver cable

2 * Rack-ears

1 * DC 24V 3A Power Adapter

1 * User manual
