16x1 HDMI Switch

# HSW1601A10

The 16 ports HDMI switch HSW1601A10, allows up to 16 Ultra HD sources to be routed to one Ultra HD display. Support resolutions up to 4K (3840 x 2160 @ 30Hz). Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are also supported. Support automatic input source detection, when attach new input device to the switch, the switch will switch to last plugged in source automatically.

With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.


0.00
0.00


# HSW1601A10

The 16 ports HDMI switch HSW1601A10, allows up to 16 Ultra HD sources to be routed to one Ultra HD display. Support resolutions up to 4K (3840 x 2160 @ 30Hz). Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are also supported. Support automatic input source detection, when attach new input device to the switch, the switch will switch to last plugged in source automatically.

With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.



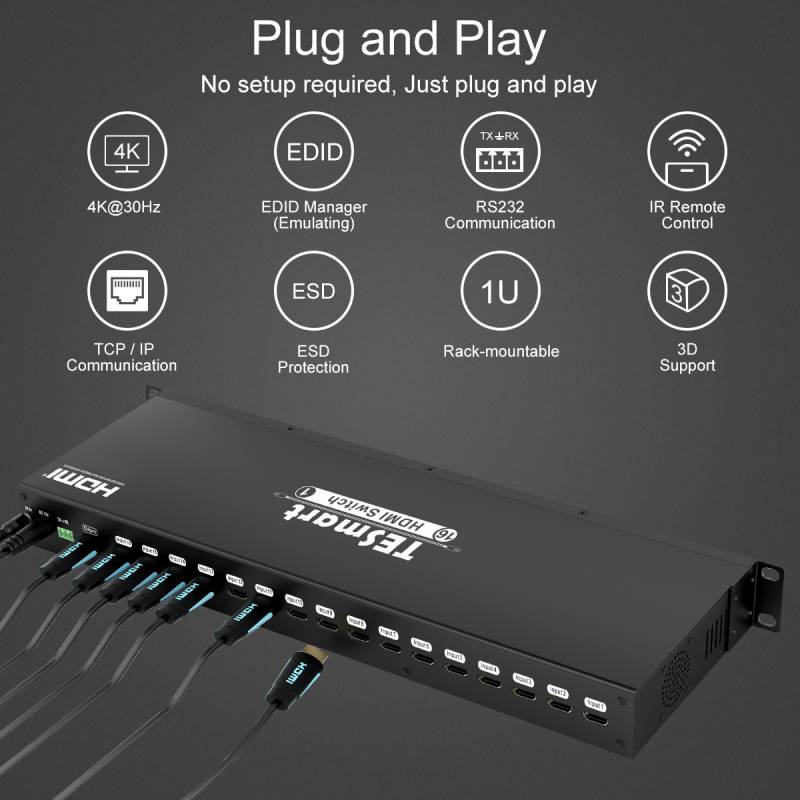

   Features


    With EDID emulators in every input ports, keep PCs always have correct display information

●    Support hot plug, connect or disconnect devices to the HDMI switch in any time and without turn off devices

    Support auto switching to monitor computers in a specified time interval

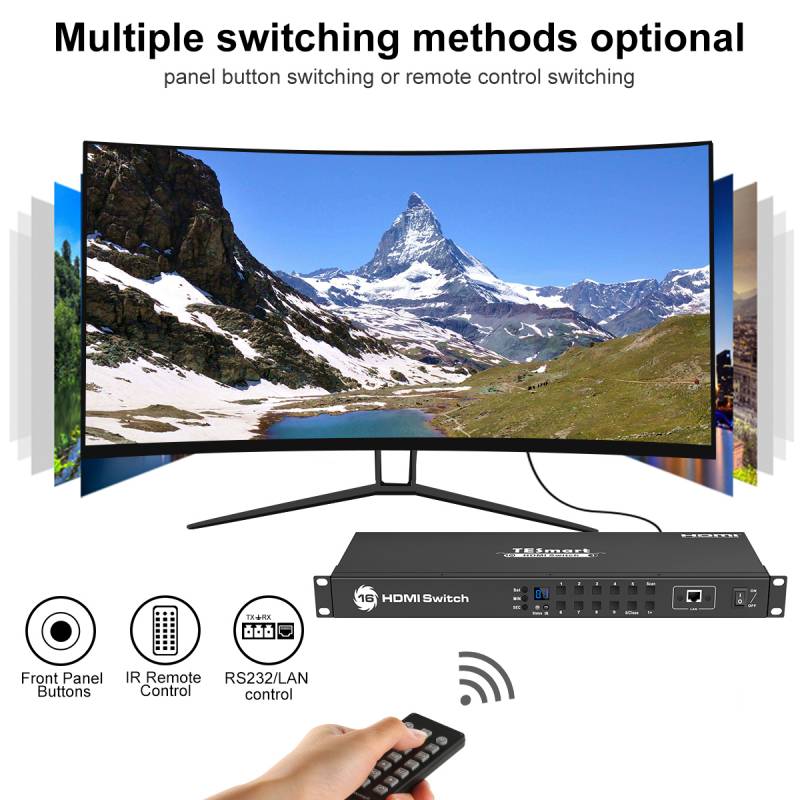

    Support front panel buttons, IR signals, RS232 serial commands or IP commands to control HDMI switch

    Support resolution up to 3840*2160@30Hz

    Auto input detect and switch

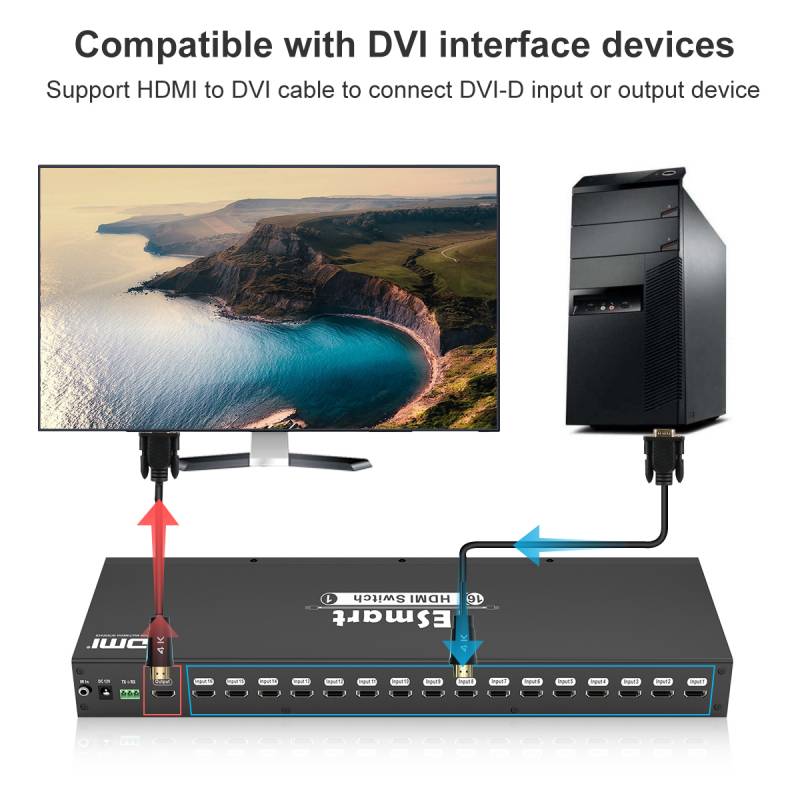

    Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

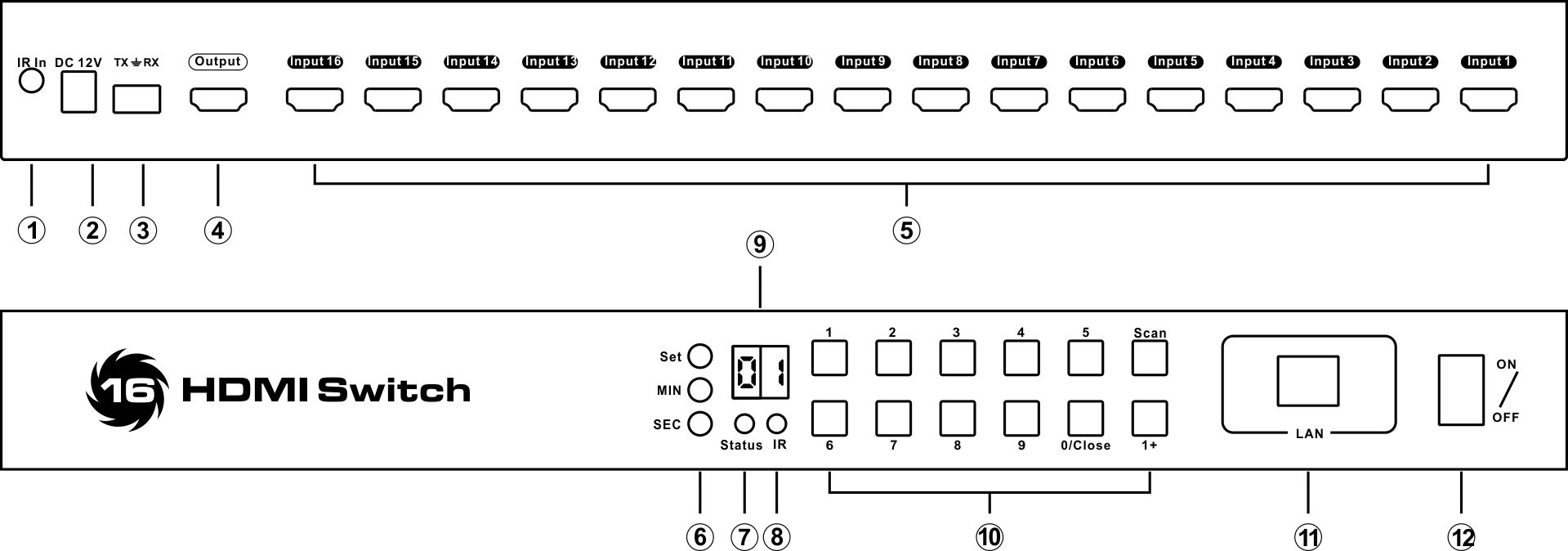

  Panel Description



1. IR receiver extension cable input

2. DC 12V Power Adapter

3. 3 Pins jack for RS232 console

4. HDMI output port

5. HDMI input ports

6. Auto scan time interval settings

[MIN]: Press button [MIN] to loop between 0~59 minutes.

[SEC]: Press button [SEC] to loop between 0~59 seconds.

[Set]: After setting minutes and seconds by buttons [MIN] and [SEC], press button [Set] to enter final scan time interval setting.

7. Status indicator:

Green LED: Normal status

Red LED: Auto scanning mode

8. IR receiver

9. LED display: display current selected input source

10. Keypad:

[1~9]: Press these buttons to directly select input 1~9 sources.

[0/Close]: Press this button directly will turn on or turn off the display out; Press [1+]  then [0/Close] to select input 10

[Scan]: Press this button to start or stop automatically scan between input 1 to input. The interval time can be set by buttons [Set], [MIN], [SEC] as described above.

11. LAN: TCP/IP console interface

12. Power switch: Turn on or off the power.

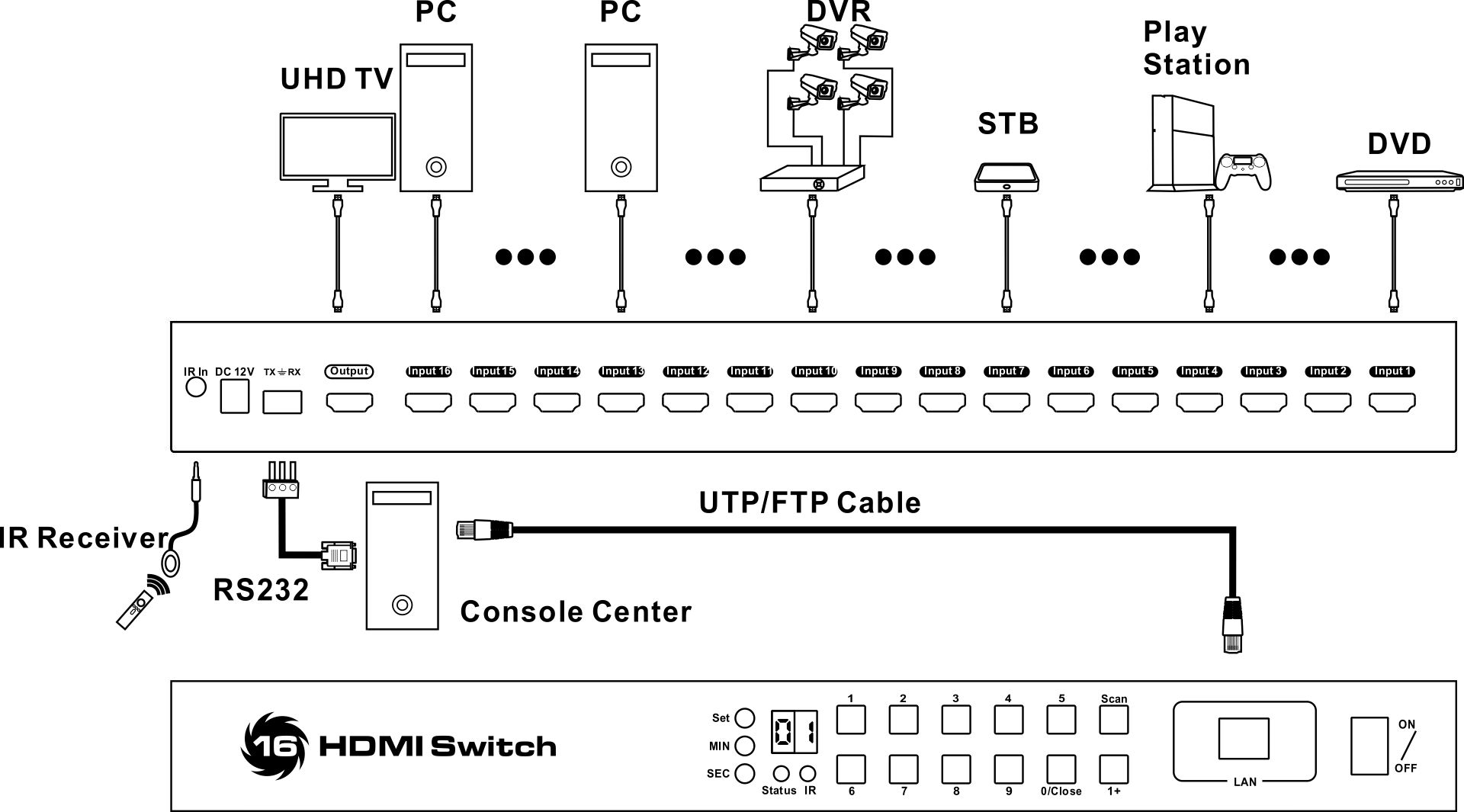

   Connection Diagram









   Specification


HSW1601A10

16x1 HDMI Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

No

IR remote control

Yes

Console commands

RS232 / IP

Technical:

Max. Resolution

3840x2160@30Hz

Auto to get EDID

Yes

Data rate

10.2 Gbps

Auto scan interval

5~3600 Seconds

Beep Sound

On/Off

OSD

No

Console ports

RS232

1 * 3 Pins jack

LAN (TCP/IP)

1 * RJ45

IR extension input

1 * AUX

Input

16 * HDMI Type A

Output

1 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Metal

Product Dimensions

440 (L) x 150 (W) x 44.5 (H) mm

Item Weight

1600g

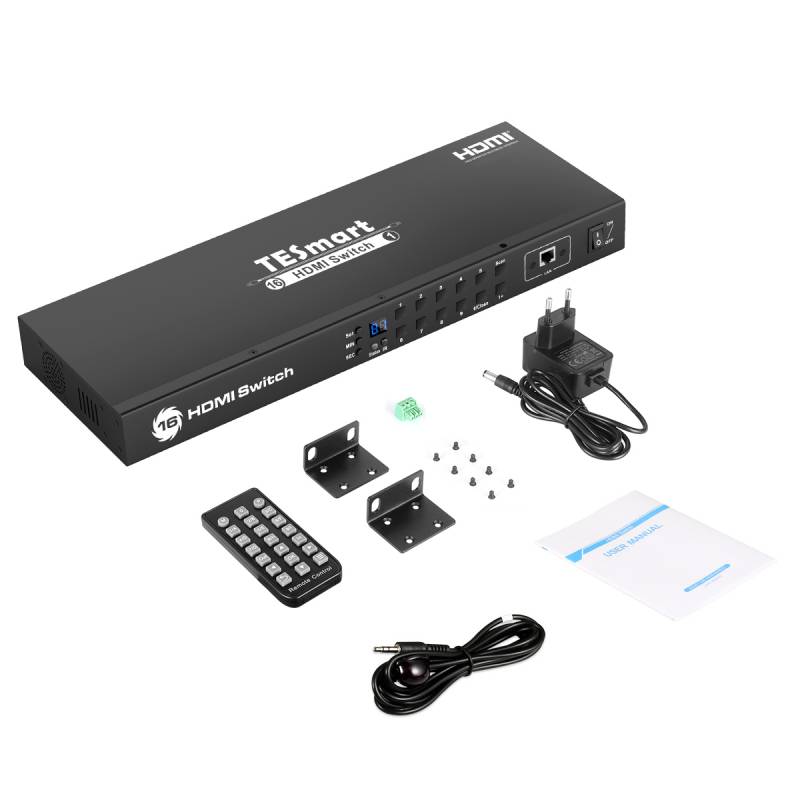

   Packing List


1 * 16x1 HDMI Switch

1 * DC 12V 2A Power Adapter

1 * IR Remote Control

1 * IR Receiver Cable

1 * 3 Pins Connector (For RS232)

2 * Rack-ears

1 * Quick-Start Guide
