VGA to HDMI Converter

#V2H0101W00


The VGA to HDMI is a high-definition video converter which converts analog VGA and Audio signal to digital HDMI signal. It allows you to connect the VGA (D-Sub) output from the PC to the digital HDMI input of the latest FHD ready plasma, LCD, LED, or DLP TV. Its high bandwidth capability supports a wide range resolutions and up to 1920*1080@60Hz.

0.00
0.00


#V2H0101W00


The VGA to HDMI is a high-definition video converter which converts analog VGA and Audio signal to digital HDMI signal. It allows you to connect the VGA (D-Sub) output from the PC to the digital HDMI input of the latest FHD ready plasma, LCD, LED, or DLP TV. Its high bandwidth capability supports a wide range resolutions and up to 1920*1080@60Hz.

   Features


l  Plug and play, easy to use

l  Support input and output resolution up to 1920x1080@60Hz

l  Automatic color space conversion

l  Embed L/R analog stereo audio in HDMI signal

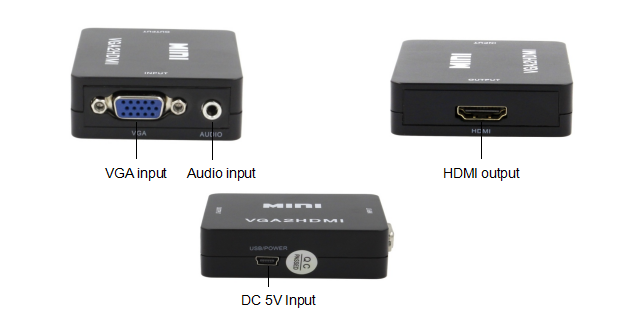

   Panel Descripton


Note:The conversion of the product is unidirectional, should not be used as HDMI to VGA converter.

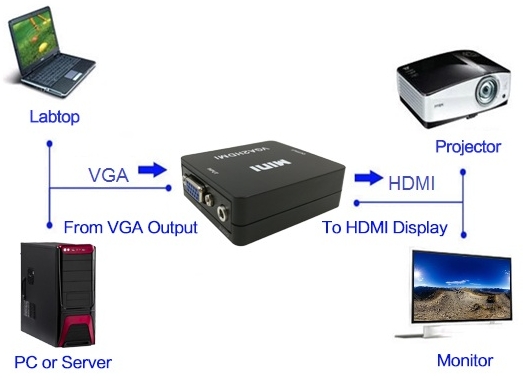

   Connection diagram




   Specification


V2H0101W00

VGA to HDMI Converter

Technical

Data rate

10.2 Gbps

Resolution

640x480@60/72/75/85Hz~1920x1080@60Hz

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

1* VGA, 1*3.5mm Aux(Audio input), 1*Mini USB(DC 5V)

Output

1* HDMI Type A

Mechanical

Chasing material

Plastic

Product Dimensions

63(L) x 55 (W) x21 (H) mm

Item Weight

78g

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH


   Packing List


1 * VGA to HDMI converter

1 * USB cable

1 * User manual
