8x1 HDMI Switch 4K@60Hz 4:4:4

#HSW0801A1U

The 8 ports HDMI switch HSW0801A1U, allows up to 8 Ultra HD sources to be integrated to 1 Ultra HD display. Support resolution up to 4K@60Hz. Support multiple control methods, front panel buttons, IR signals, RS232 serial commands or IP commands.
With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.

0.00
0.00


#HSW0801A1U

The 8 ports HDMI switch HSW0801A1U, allows up to 8 Ultra HD sources to be integrated to 1 Ultra HD display. Support resolution up to 4K@60Hz. Support multiple control methods, front panel buttons, IR signals, RS232 serial commands or IP commands.
With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports.


Download the specification


 Features


●  With EDID emulators in each input port, keep PCs always having correct display information

●  Support hot plug, connect or disconnect devices to the HDMI switch in any time without turning off devices

●  Support auto switching to monitor computers in a specified time interval

●  Support front panel buttons, IR signals, RS232 serial commands or IP commands to control HDMI switch

●  Support resolution up to 3840*2160@60Hz

●  Auto input detect and switch

● Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

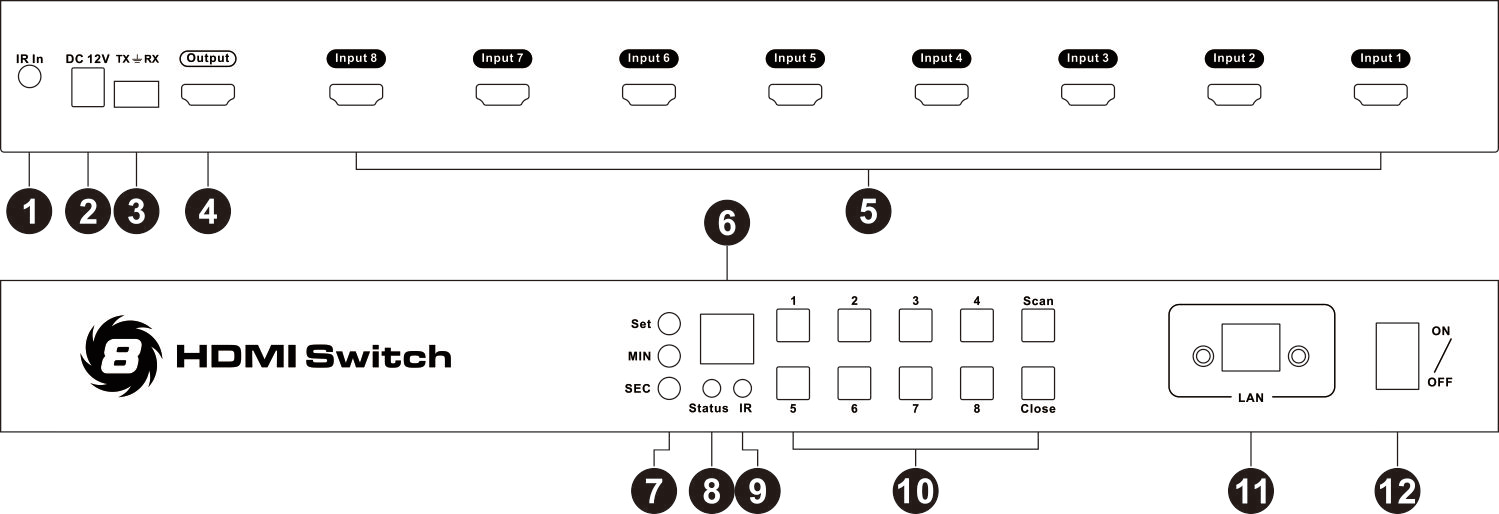

  Panel Description







ID

Name

Description

1

IR in

Connect IR receiver extension cable to this port, then it is able to use IR control even the switch is installed in a rack

2

DC 12V

12V DC power supply

3

RS 232

Connect this port to any control termination, then it is able to select the input sources by sending RS232 commands

4

HDMI output

Connect to HDMI display

5

HDMI input

Connect to HDMI sources

6

LED display

Display current selected input port

7

Auto scan time interval settings

[MIN]: Press [MIN] to loop between 0~59 minutes

[SEC]: Press [SEC] to loop between 5~59 seconds

[Set]: After setting minutes and seconds, press button [Set] to enter final scan time interval setting

8

Status LED

Red: Turn off auto scanning mode

Green: Turn on auto scanning mode

9

IR receiver

Receive IR signal

10

Keypad

1-8: Press these buttons to directly select input 1-8

[Close]: Press this button directly will turn on or turn off the LED display and monitor

[Scan]: Press this button to start or stop automatically scanning between input1 to input 8, the interval time can be set by button [Set], [MIN], [SEC]

11

LAN port

By connecting to the LAN through this port, you can use the terminal device in the same LAN to send TCP/IP commands to control the switching of input port

12

Power switch

Turn on or off power supply

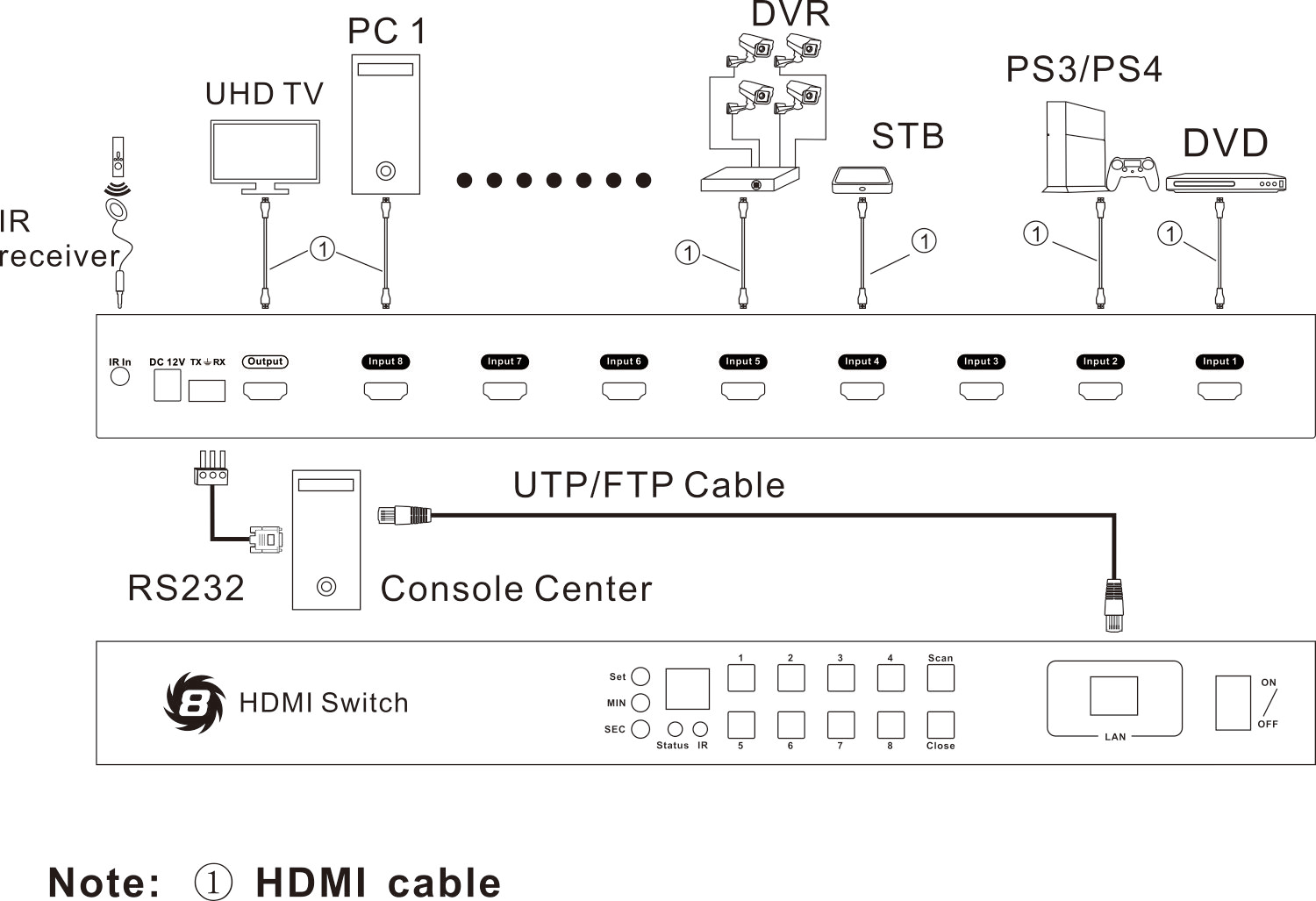

   Connection Diagram










   Specification


HSW0801A1U

8x1 HDMI Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

No

IR remote control

Yes

Console commands

RS232 / IP

Technical:

Max. Resolution

3840x2160@60Hz

Auto to get EDID

Yes

Data rate

18 Gbps

Auto scan interval

5~3600 Seconds

Beep Sound

On/Off

OSD

No

Console ports

RS232

1 * 3 Pins jack

LAN (TCP/IP)

1 * RJ45

IR extension input

1 * AUX

Input

8 * HDMI Type A

Output

1 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Metal

Product



Dimension

440 (L) x 150 (W) x 44.5 (H) mm

Weight

1800g

Item



Dimension

488 (L) x 123 (W) x 186 (H) mm

Weight

2383g

Carton



Dimension

505 (L) x 280 (W) x 395 (H) mm

Quantity

4pcs

Total Weight

10.282kg


   Packing List


1 * 8x1 HDMI Switch

1 * DC 12V 2A Power Adapter

1 * IR Remote Control

1 * IR Receiver Cable

1 * 3 Pins Connector(For RS232)

2 * Rack-ears

1 * User manual
