60M HDMI KVM+IR Extender

#HKE0611A10

HDMI KVM Extender with IR pass though, uses single UTP LAN cable CAT5e/6 to substitute HDMI cable to achieve longer transmission distance, The transmission distance extend up to 60 meters for 1920*1080@60Hz. Support EDID pass though, best compliant with different display devices. In the same time, this extender can support infrared control signal pass through.

0.00
0.00


#HKE0611A10

HDMI KVM Extender with IR pass though, uses single UTP LAN cable CAT5e/6 to substitute HDMI cable to achieve longer transmission distance, The transmission distance extend up to 60 meters for 1920*1080@60Hz. Support EDID pass though, best compliant with different display devices. In the same time, this extender can support infrared control signal pass through.


   Features




Resolution up to 1920*1080@60Hz (For 60M UTP)
Support TMDS equalization and enhancement
Support EDID pass through via LAN, for best compliance with most display devices
Support IR signal pass through via LAN
By transmitting keyboard and mouse data via LAN, it is easy to control PC remotely

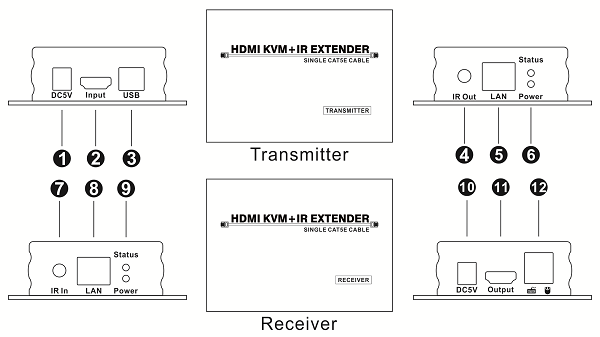

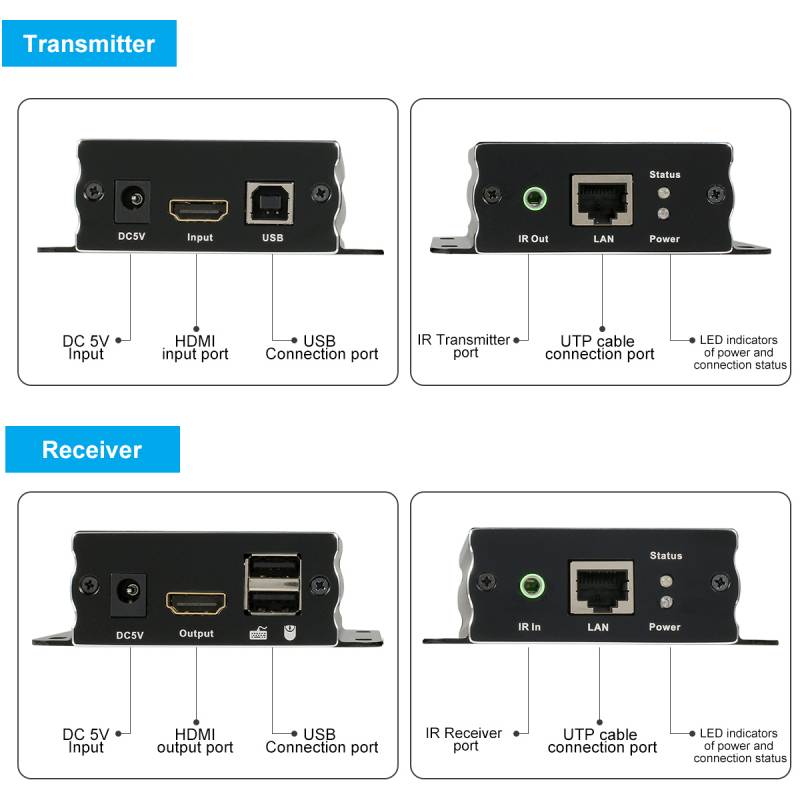

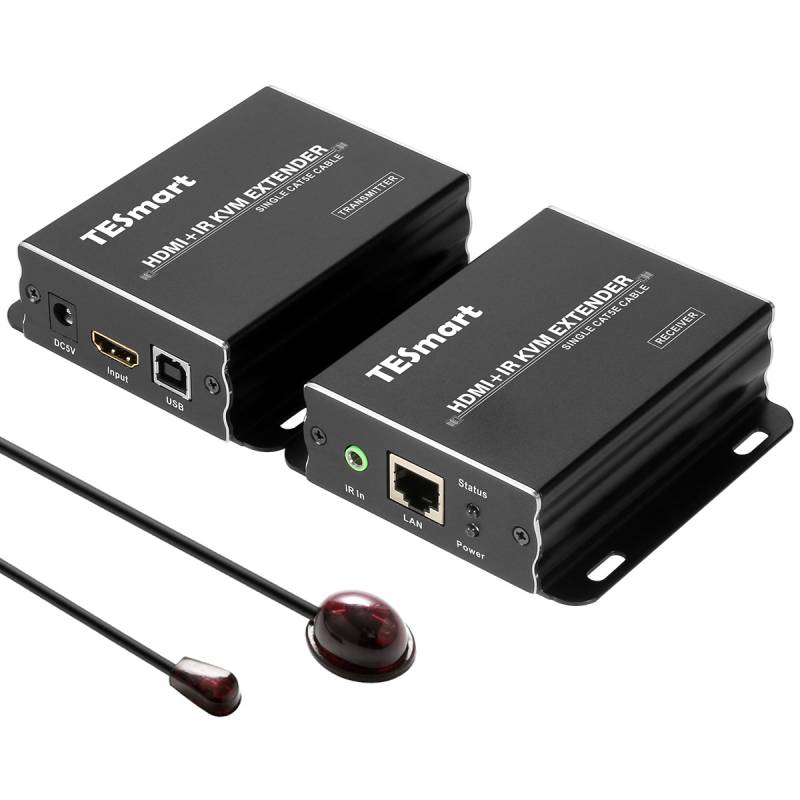

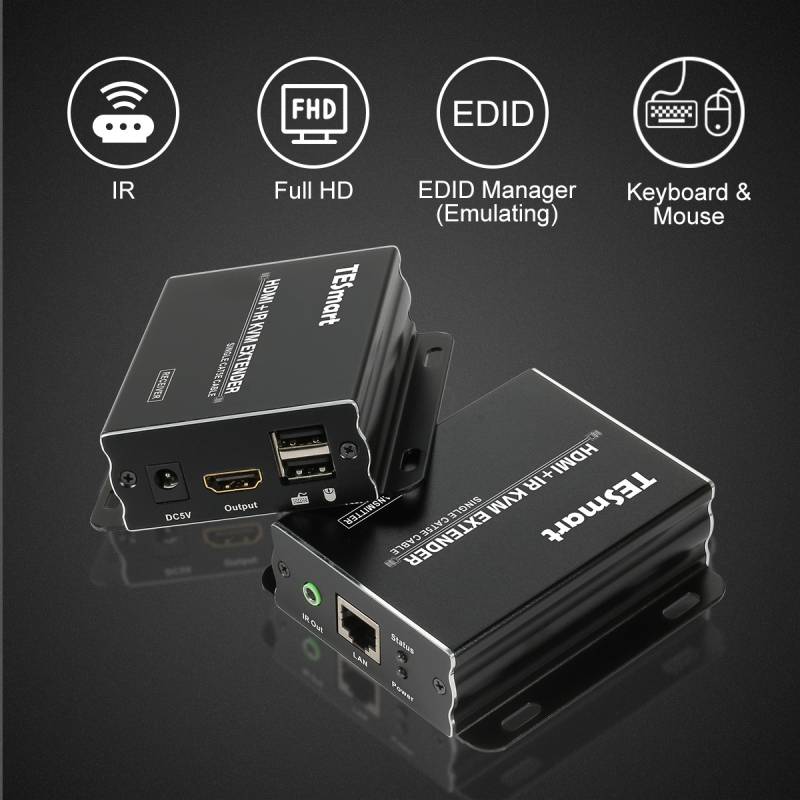

  Panel Description






1. DC 5V Input7. IR receiver port
2. HDMI input port8. UTP cable connection port
3. USB connection port(To computer)9. LED indicators of power and connection status
4. IR transmitter port10. DC 5V Input
5. UTP cable connection port11. HDMI output port
6. LED indicators of power and connection status12. USB keyboard and mouse input

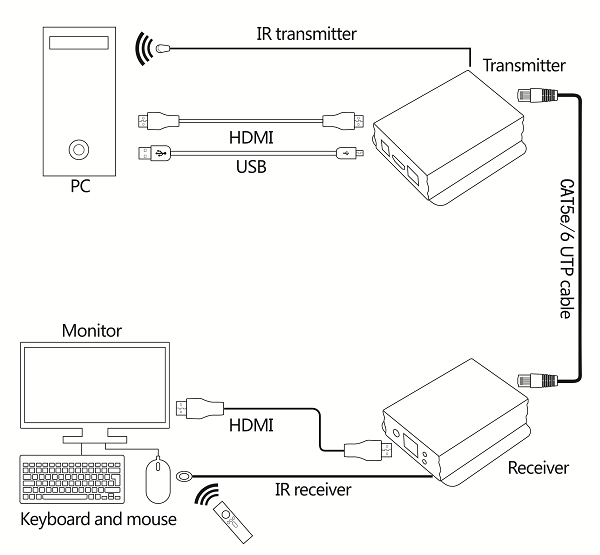

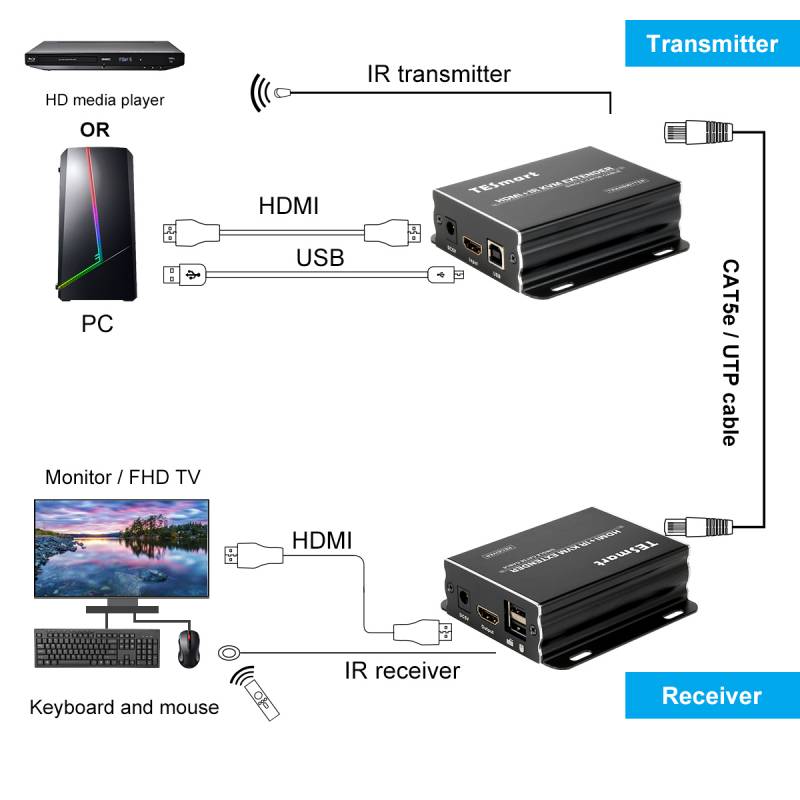

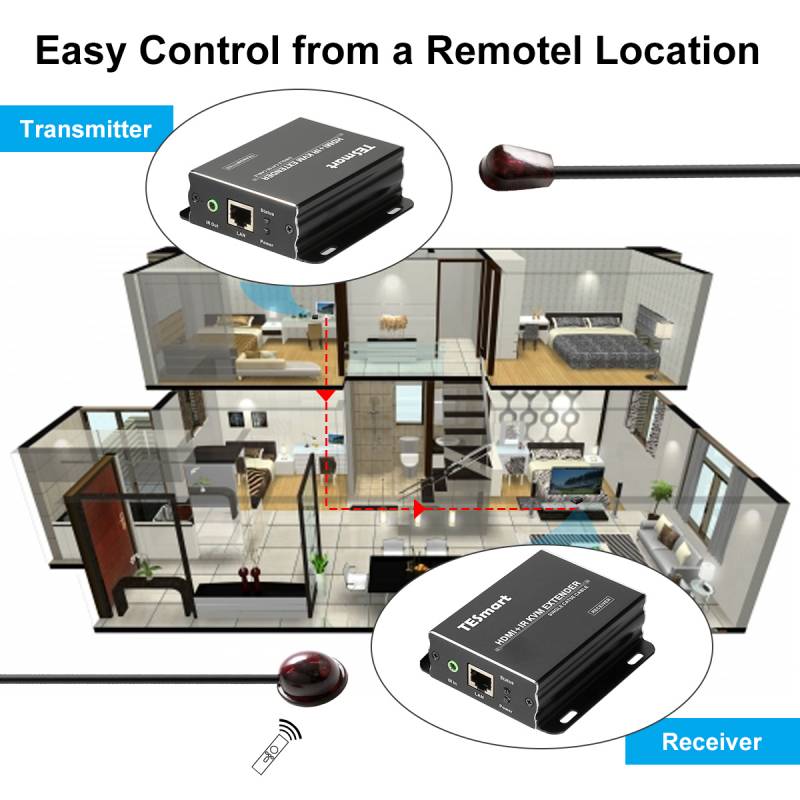

   Connection Diagram




   Specification


HKE0611A10

60M HDMI KVM+IR Extender

Technical

Data rate

10.2 Gbps

Max. Resolution

1920*1080@60Hz ( For 60M UTP cable)

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

Transmitter: 1* HDMI Type A

Receiver: 1* RJ45, 1* AUX (For IR in),

                2* USB Type A (Keyboard & mouse)

Output

Transmitter: 1* RJ45, 1* USB Type B, 1* AUX(for IR out)

Receiver: 1* HDMI Type A

Mechanical

Chasing material

Aluminum Alloy

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

Product



Dimension

RX: 91 (L) x 90 (W) x 30 (H) mm
TX: 91 (L) x 90 (W) x 30 (H) mm

Weight

TX:142.5
RX:143.4

Item



Dimension

672g

Weight

245 (L) x 135 (W) x 90 (H) mm

Carton



Dimension

515 (L) x 285 (W) x 470 (H) mm

Quantity

20pcs

Total Weight

14.29kg

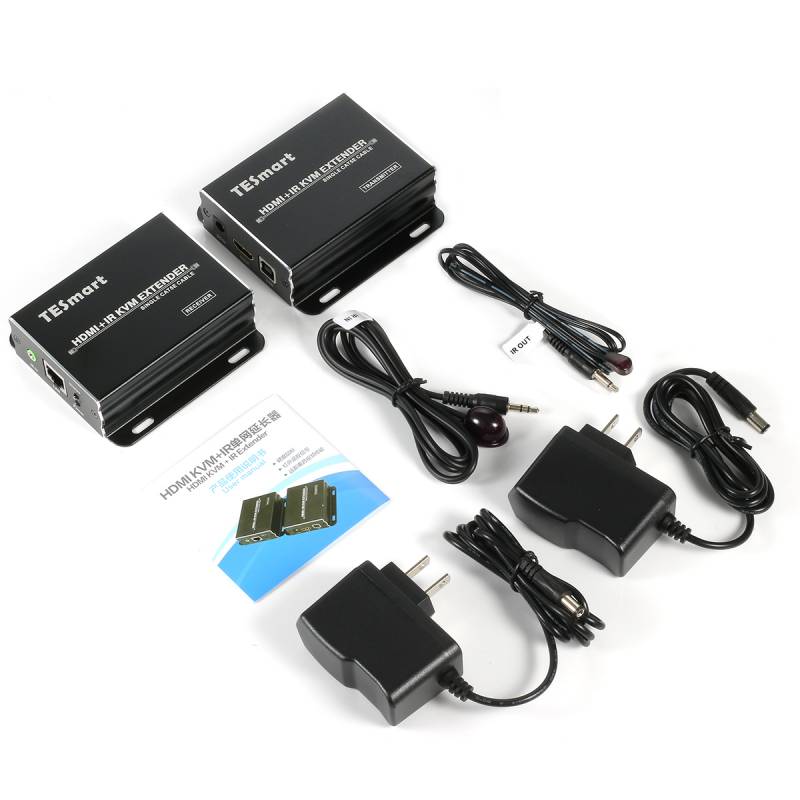

   Packing List


1 * HDMI KVM transmitter

1 * HDMI KVM receiver

1 * IR Transmitter Cable

1 * IR Receiver Cable

2 * DC 5V 1A Power Adapter

1 * User Manual
