4x1 SDI Switch

#SSW0401A10

The 4 ports SDI switch, allows up to 4 SD/HD/3G-SDI sources to be routed to one SD/HD/3G-SDI display. Support resolution 480i@60Hz, 576i@50Hz, 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz. Each SD/HD/3G-SDI source can be routed to the display using the front panel switch button, IR remote or PC( via RS 232 port).

0.00
0.00


#SSW0401A10

The 4 ports SDI switch, allows up to 4 SD/HD/3G-SDI sources to be routed to one SD/HD/3G-SDI display. Support resolution 480i@60Hz, 576i@50Hz, 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz. Each SD/HD/3G-SDI source can be routed to the display using the front panel switch button, IR remote or PC( via RS 232 port).


   Features


Support 4 SDI input, 1 SDI output
Seamless channel switch
36 bit/pixel deep color, data rate up to 10.2 Gbps
Support resolutions 480i@60Hz, 576i@50Hz, 720P@50Hz/60Hz,1080i@50Hz/60Hz, 1080P@24/25/30/50/60Hz
Built-in equalizer, clock regeneration and cable driver enhancement
3G-SDI transmission over RG-59 cable with length up to 100 meters
Without delay, built-in automatic format detection of SD-SDI, HD-SDI, 3G-SDI

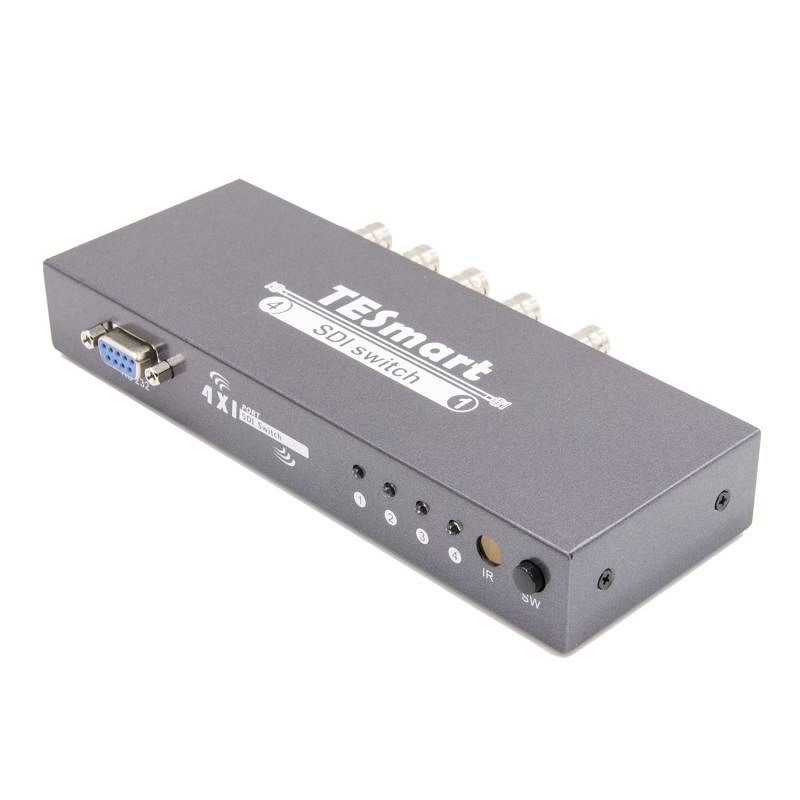

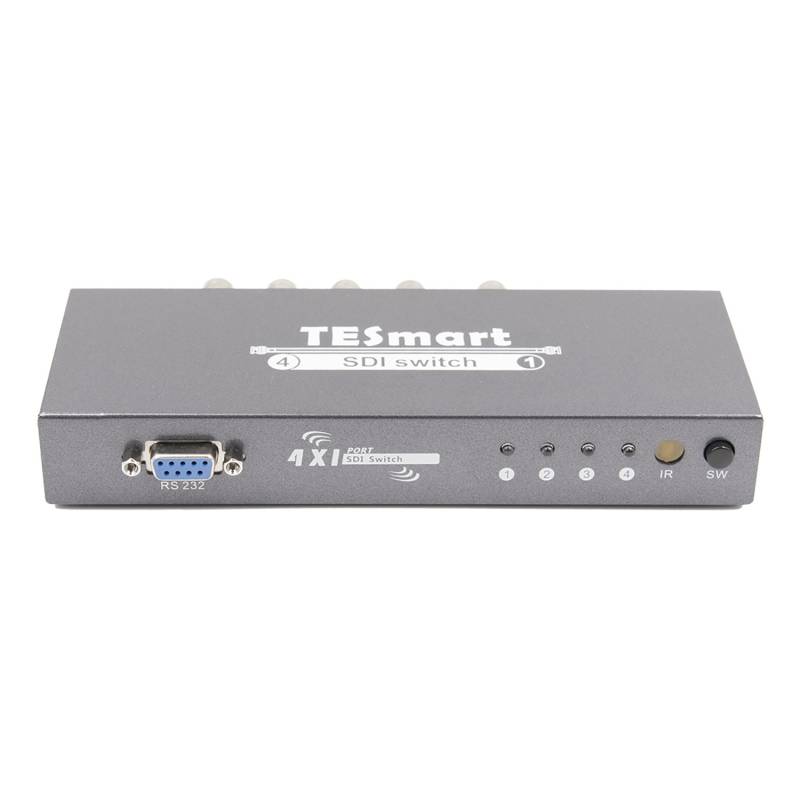

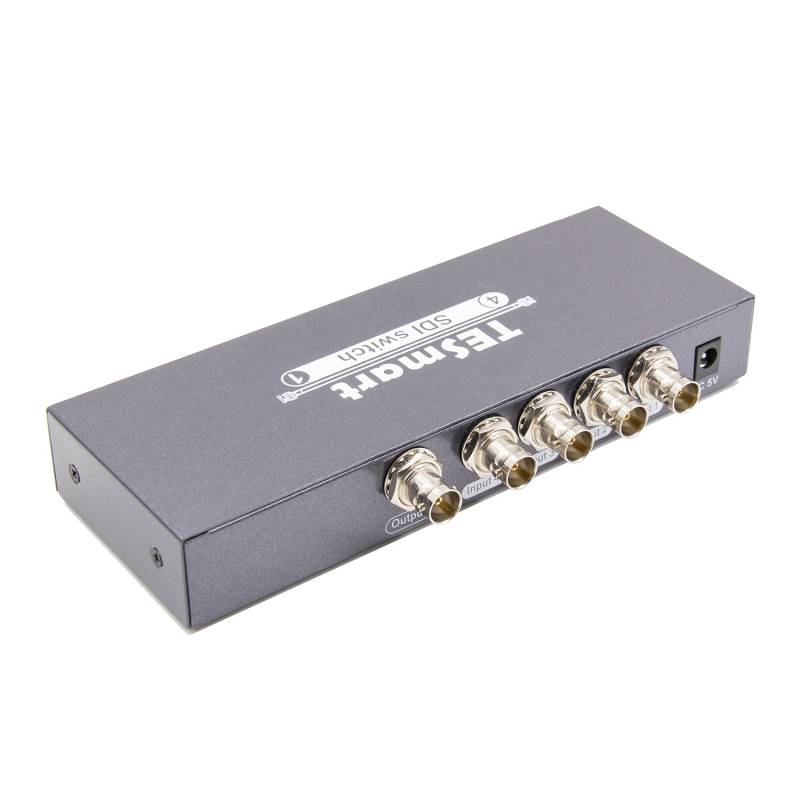

  Panel Description

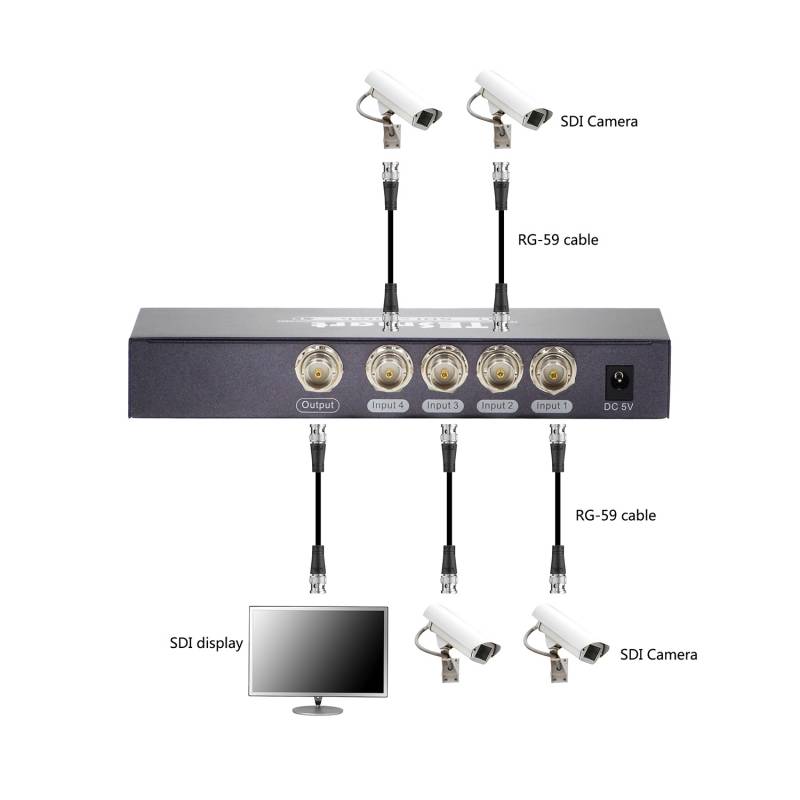

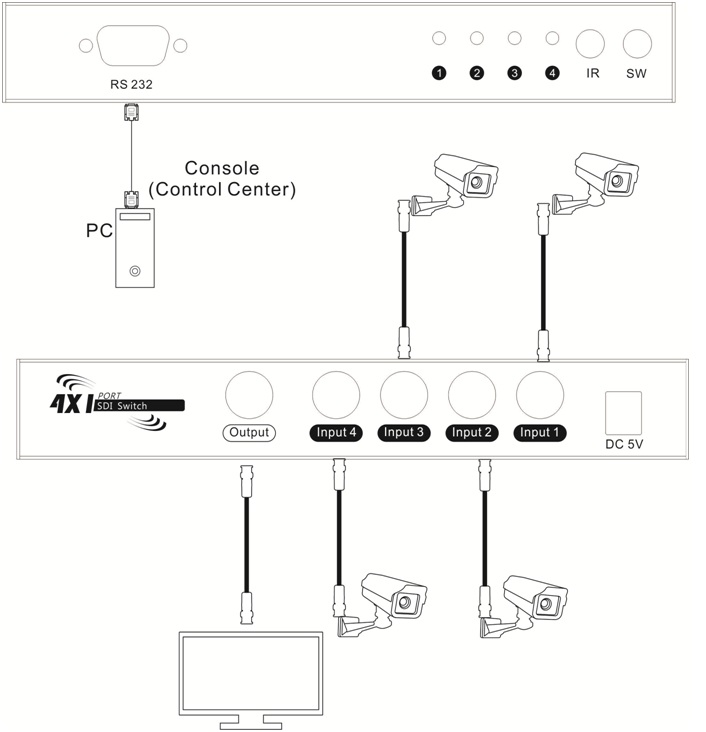

   Connection Diagram




   Specification


SSW0401A10

4x1 SDI Switch

Technical

Support signal

SD/HD/3G-SDI

Data rate

10.2 Gbps

Resolution

480i@60Hz, 576i@50Hz, 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

4* BNC(SDI), 1*via RS232

Output

1* BNC(SDI)

Mechanical

Chasing material

Metal

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

Product



Dimension

178(L) x 65 (W) x 26.5 (H) mm

Weight

367g

Item



Dimension

262 (L) x 119 (W) x 90 (H) mm

Weight

639g

Carton



Dimension

515 (L) x 285 (W) x 470 (H) mm

Quantity

20pcs

Total Weight

13.63kg

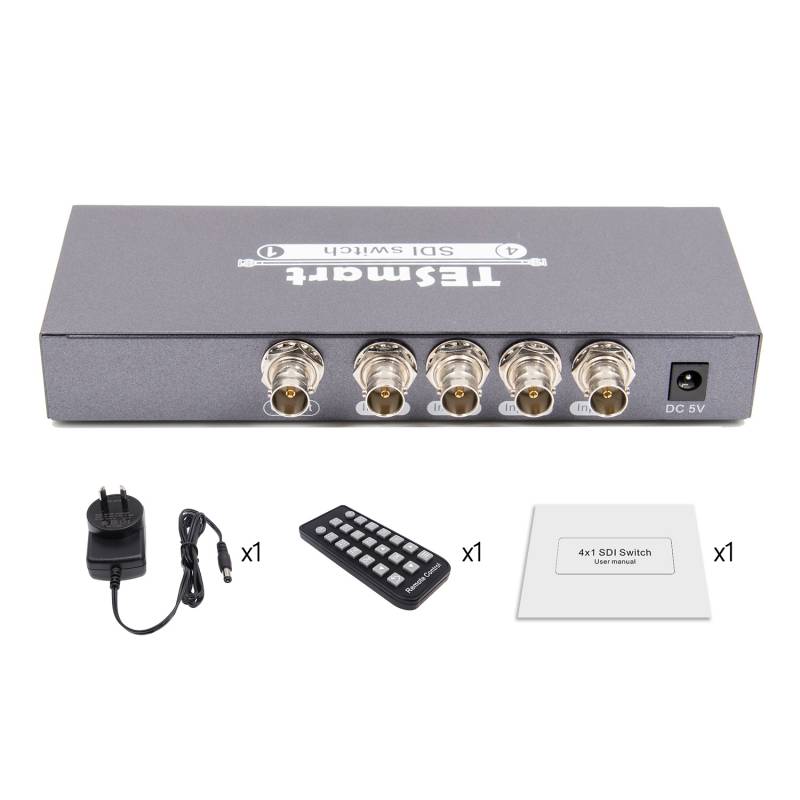

   Packing List


1 * SDI Switch

1 * DC 5V Power Adapter

1 * IR Remote Control

1 * User Manual
