3x1 HDMI Switcher with audio out

#HSW0301A30

The 3 Ports HDMI Switcher HSW0301A30, allows up to three Ultra HD or Full HD sources to be routed to one Ultra HD display. Support S/PDIF and L/R audio output which comes from HDMI active input source. This product supports resolutions up to 4K (3840 x 2160 @ 30Hz). HDCP, ARC, Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™ are also supported. Each Ultra HD source can be switched to the display using the front panel push-button control or the included IR remote. The switching speed is faster than most of other HDMI switches, less than 1 second.

0.00
0.00


#HSW0301A30

The 3 Ports HDMI Switcher HSW0301A30, allows up to three Ultra HD or Full HD sources to be routed to one Ultra HD display. Support S/PDIF and L/R audio output which comes from HDMI active input source. This product supports resolutions up to 4K (3840 x 2160 @ 30Hz). HDCP, ARC, Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™ are also supported. Each Ultra HD source can be switched to the display using the front panel push-button control or the included IR remote. The switching speed is faster than most of other HDMI switches, less than 1 second.


   Features


With 3 HDMI inputs and 1 HDMI output
Support audio output via optical or L/R AUX interfaces
Support configuration of audio output among 2.0/5.1/Bypass modes
Support fast switch
Support ultra HD 4K and 1080P 3D resolution
Support 8/10/12 bits color depth
Support Dolby True HD, DTS-HD Master Audio, and Dolby Digital and AC-3 audio transmission
Easy to switch input source with infrared remote control

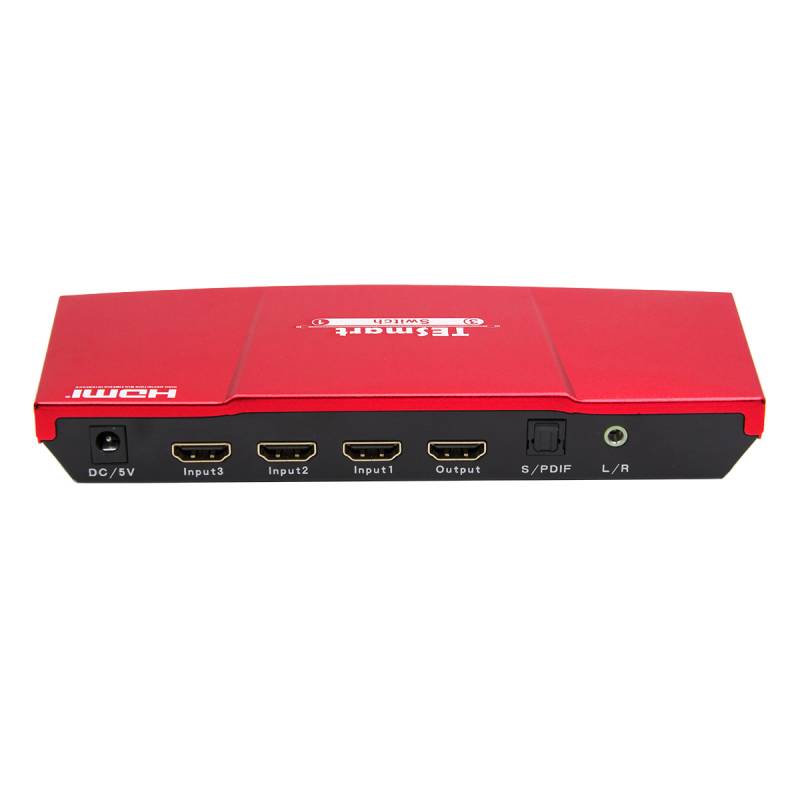

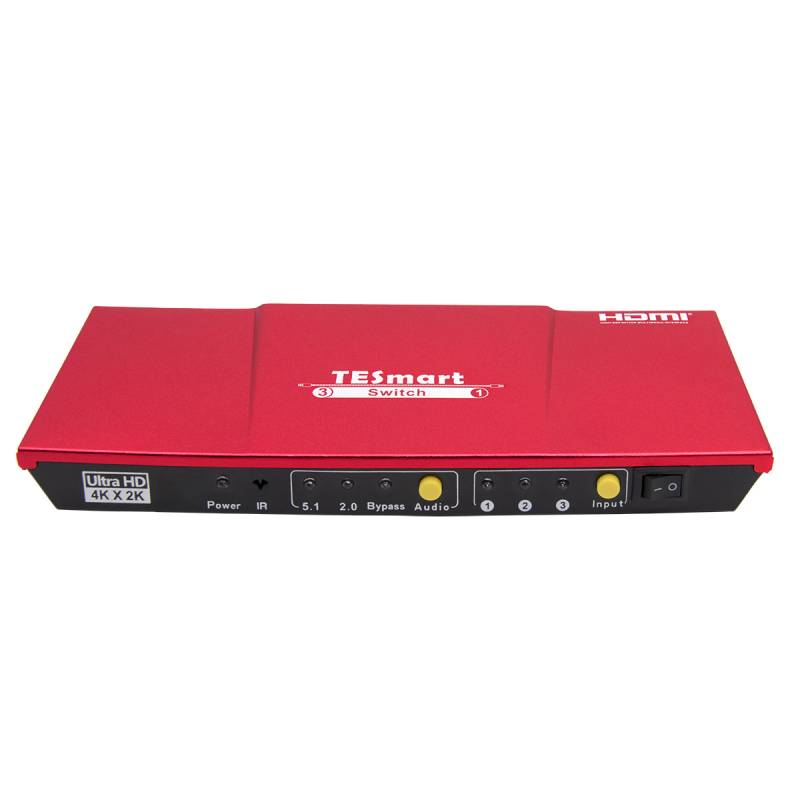

  Panel Description

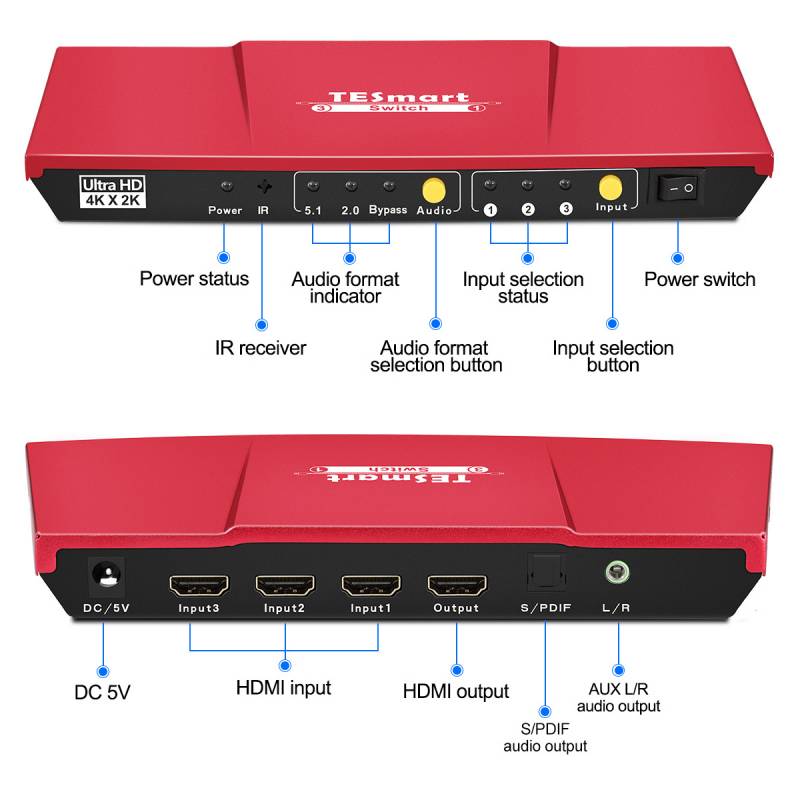

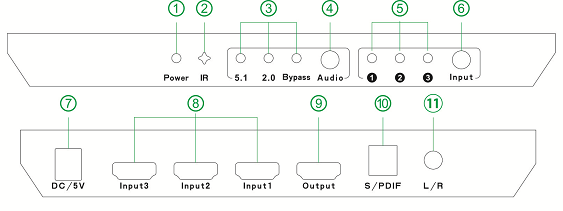

1.Power status7.DC 5V
2.IR receiver8.HDMI input
3.Audio format indicator9.HDMI output
4. Audio format selection button10.S/PDIF audio output
5.Input selection status 11.AUX L/R audio output
6.Input selection button

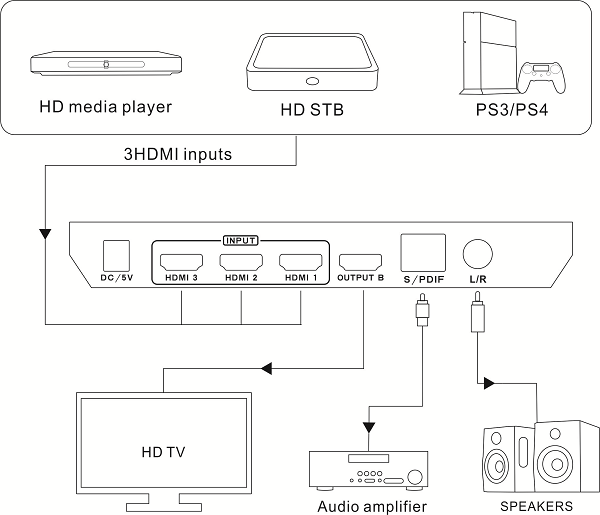

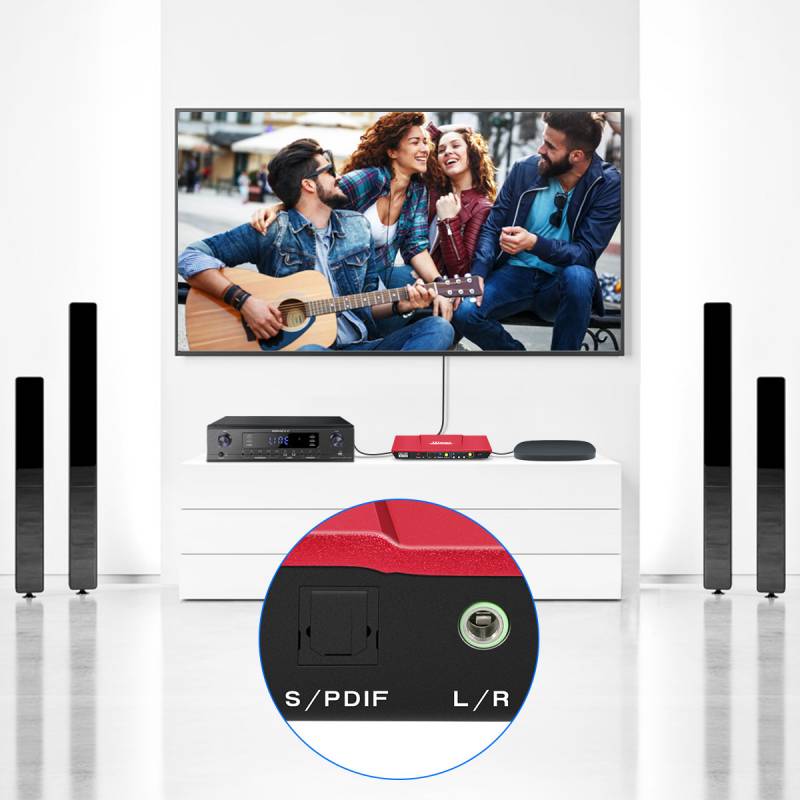

   Connection Diagram




   Specification


HSW0301A30

3x1 HDMI Switcher with audio out

Technical

HDCP compliance

Yes

Data rate

10.2 Gbps

Max. Resolution

3840*2160P@30Hz

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

3* HDMI Type A, IR receiver x 1

Output

1* HDMI Type A1* Optical(S/PDIF), 1* AUX(L/R)

Mechanical

Chasing material

Aluminium Alloy

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

Product



Dimension

196(L) x 80 (W) x 24 (H) mm

Weight

240g

Item



Dimension

245 (L) x 135 (W) x 90 (H) mm

Weight

495g

Carton



Dimension

515 (L) x 285 (W) x 470 (H) mm

Quantity

20pcs

Total Weight

10.75kg

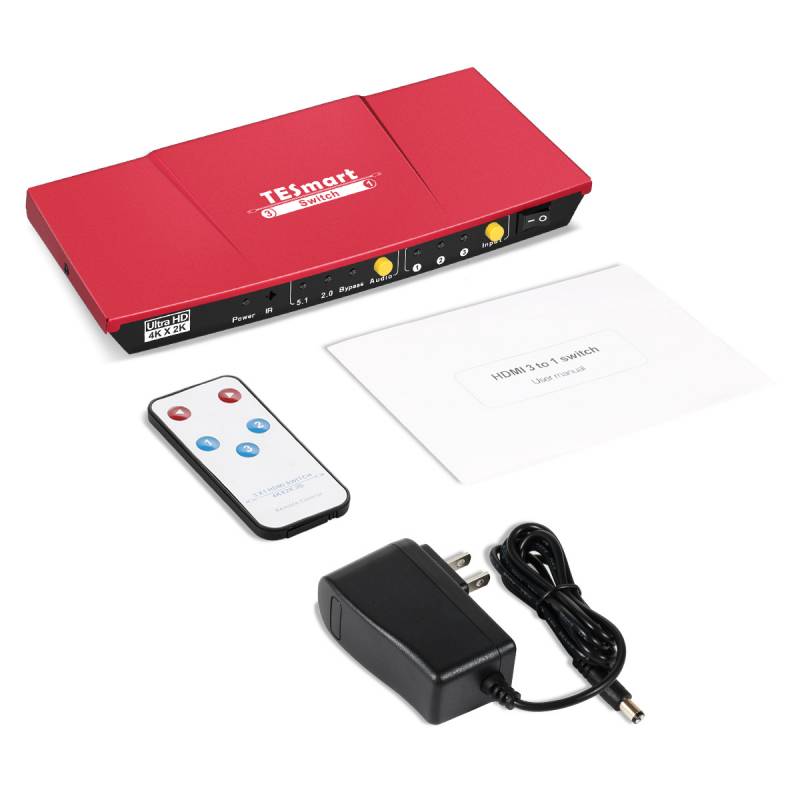

   Packing List


1 * 3x1 HDMI Switch

1 * IR Remote Control

1 * DC 5V 1A Power Adapter

1 * Quick-Start Guide
